35 11 000 Removing and Installing Complete Bearing Block For Foot Pedal

35 11 000 Removing And Installing (Replacing) Complete Bearing Block For Foot Pedal







IMPORTANT: After completion of work, perform a functional check.

Necessary preliminary work:
- Remove brake servo

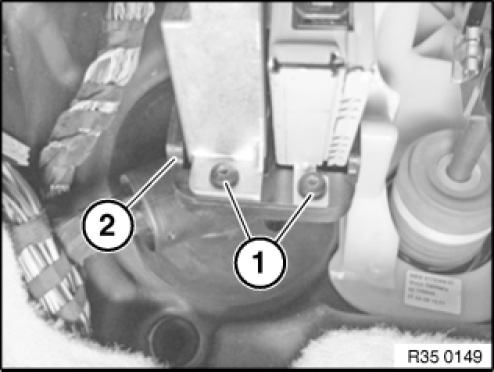

Release screws (1).
Remove control units from holder (2). Plugs remain connected.







Slacken nut (1).

Installation note:
Replace self-locking nut.
Tightening torque 35 11 2AZ.

Remove bearing support (2).







Unclip line (1).
Disconnect plug connection (2).

Replacement:
- Modify brake light switch
- Modify holder for control units
- Modify clutch pedal
