64 22 165 Removing and Installing Or Replacing Middle Fresh-Air Grille

64 22 165 Removing and installing/replacing centre fresh air grille







Necessary preliminary tasks:
F01, F02, F03, F12, F13:
- Remove decorative strip on dashboard in middle
F07, F10, F11, F18:
- Remove decorative strip on dashboard on right







IMPORTANT: Proceed with care so as to avoid damaging the fresh air grille.







NOTE: Picture for example purposes only.

Replacement:

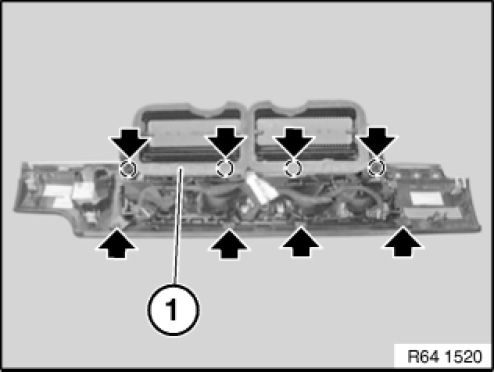

Release screws at marked points at top and bottom.
Remove centre fresh air grille (1).







Replacement:
Modify switch for hazard warning system/central locking
