VIN E With Heavy Duty Cooling

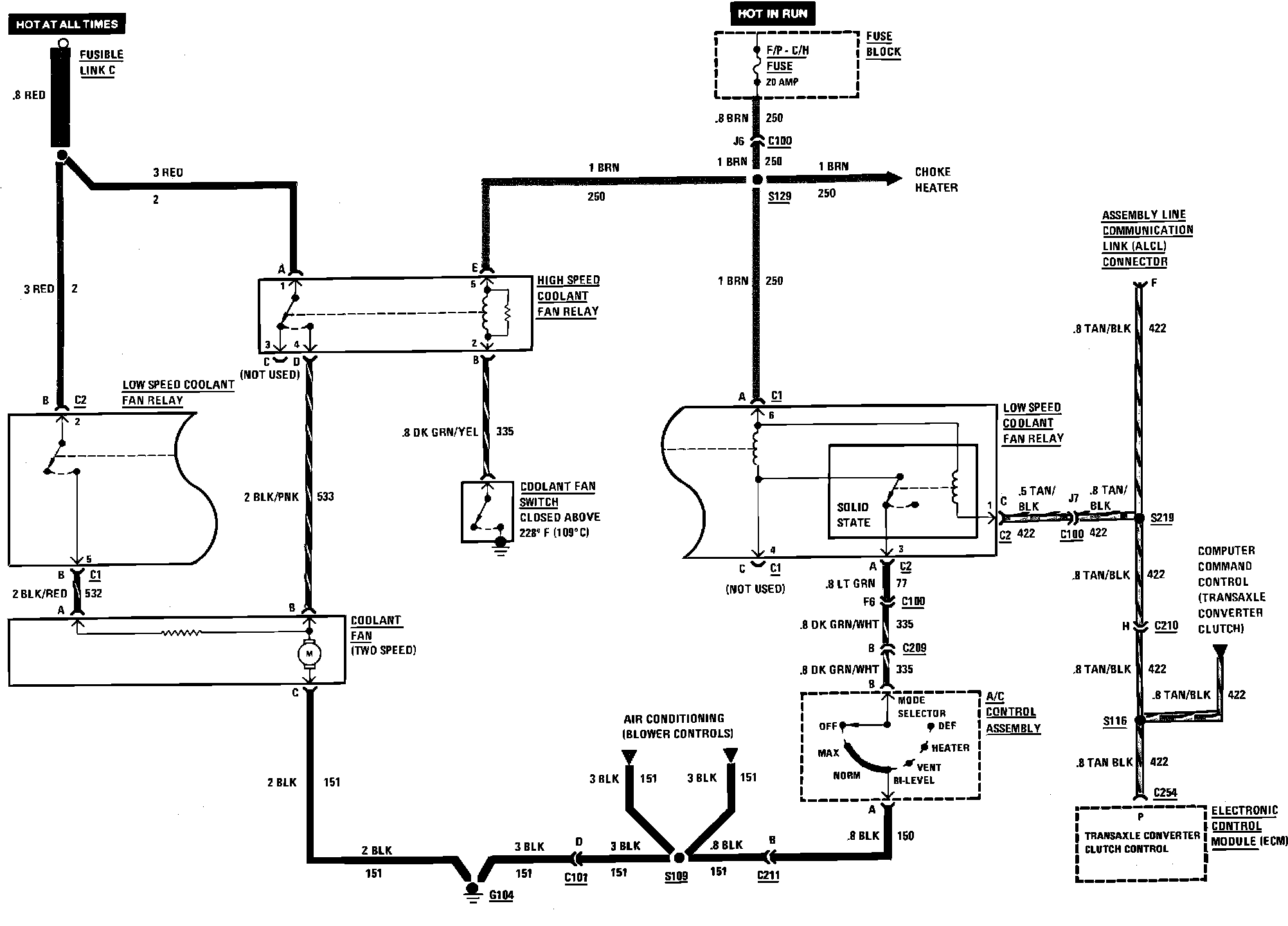

Fig. 110 Engine Cooling Fan Wiring Circuit - VIN E, With Heavy Duty Cooling:
