Pistons & Rods Assemble

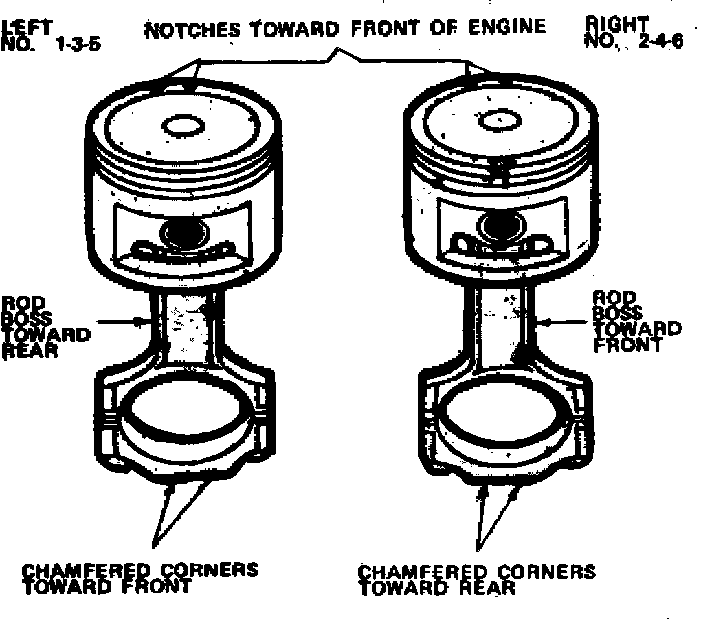

Fig. 11 Piston and rod assembly:
Rods and pistons should be assembled and installed as shown in Fig. 11. Measure connecting rod side clearance using a suitable feeler gauge. Clearance should be .003-.015 inch.
Rods and pistons should be assembled and installed as shown in Fig. 11. Measure connecting rod side clearance using a suitable feeler gauge. Clearance should be .003-.015 inch.
