Buick
>>
1985
>>
Century Estate Wagon V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Cruise Control
>>
With Digital Cluster
With Digital Cluster

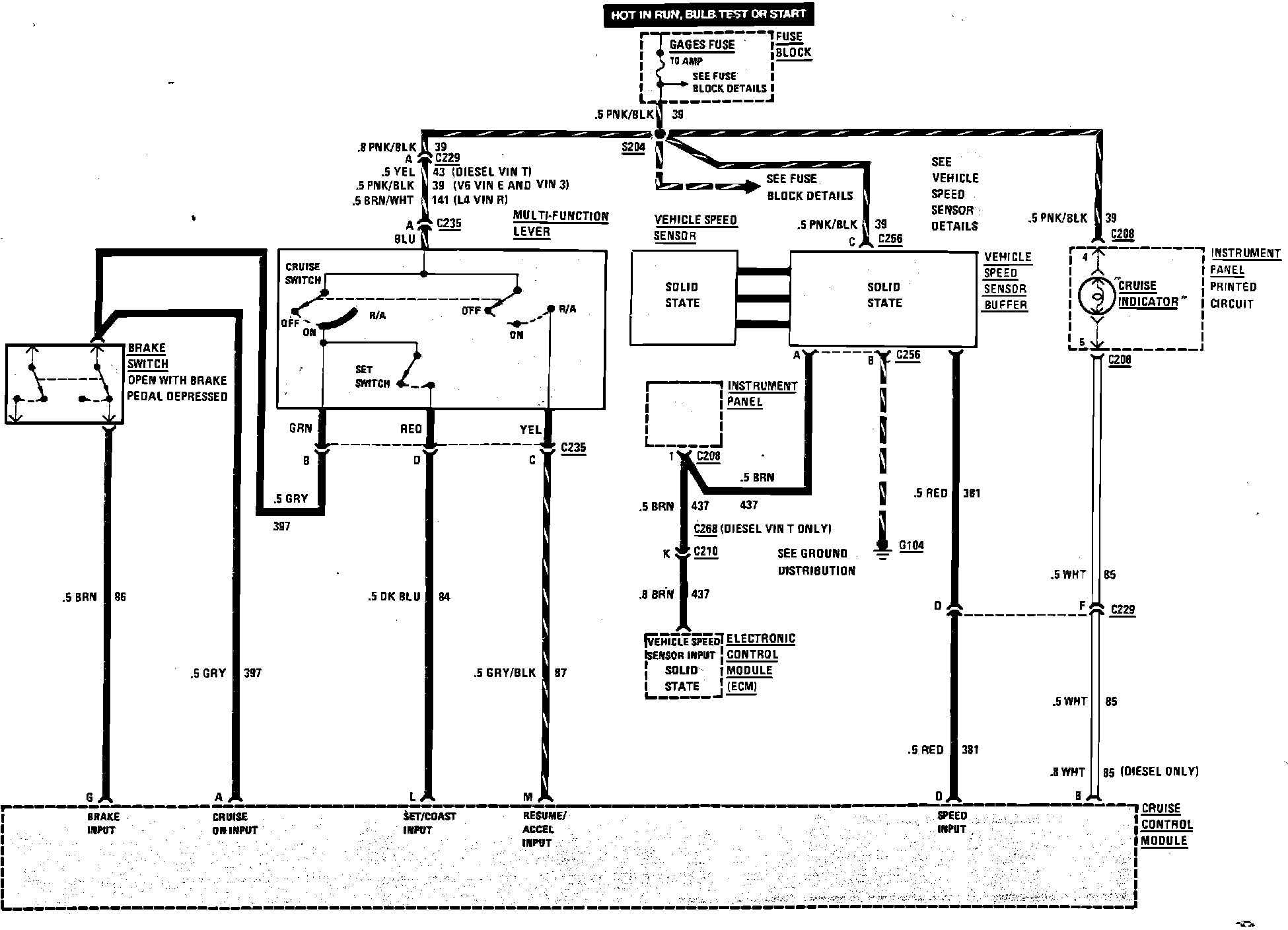

Fig. 85 Cruise Control Wiring Circuit - With Digital Cluster:
