Engine Mount: Service and Repair

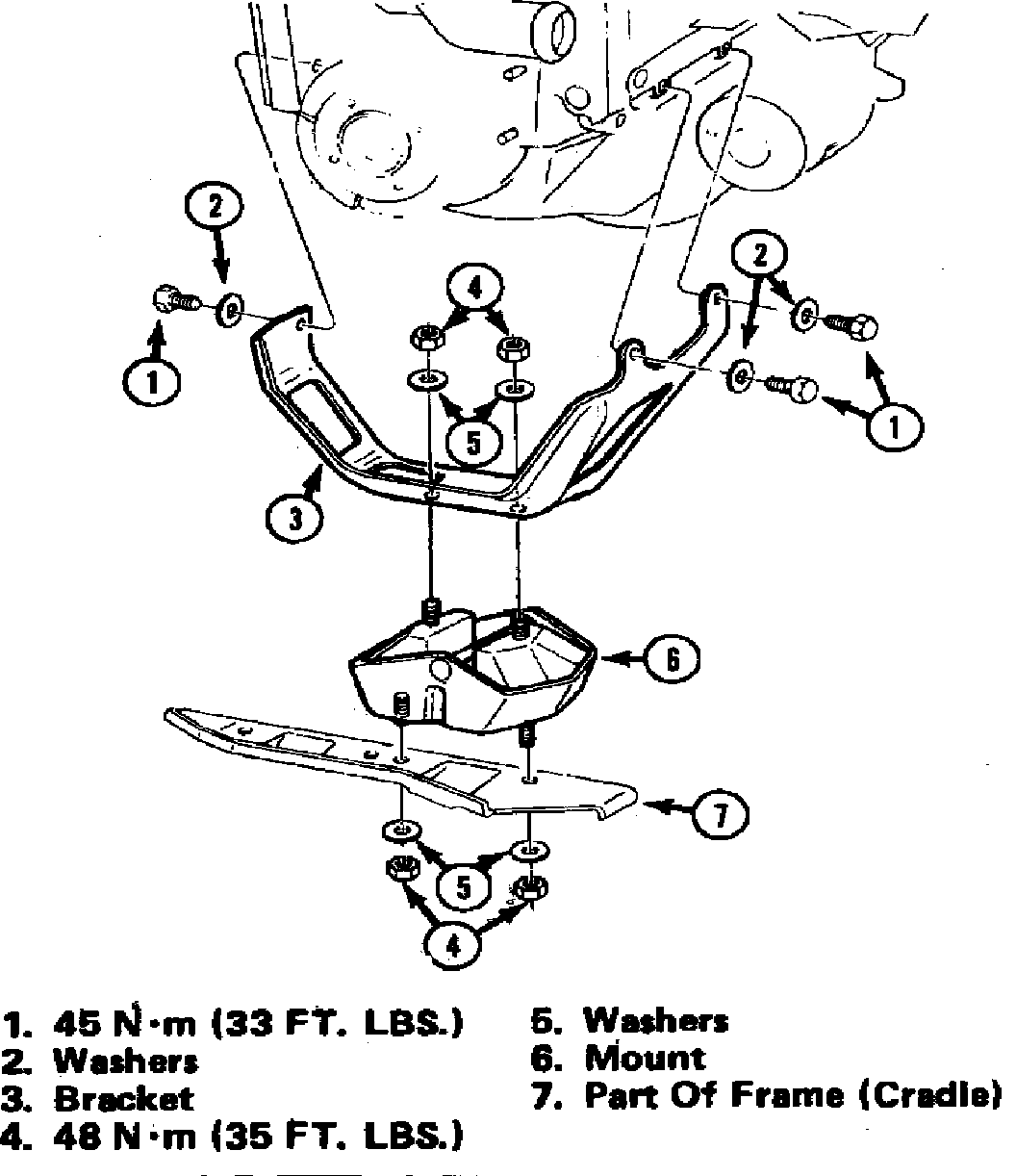

Fig. 8 Front engine mount removal and installation:

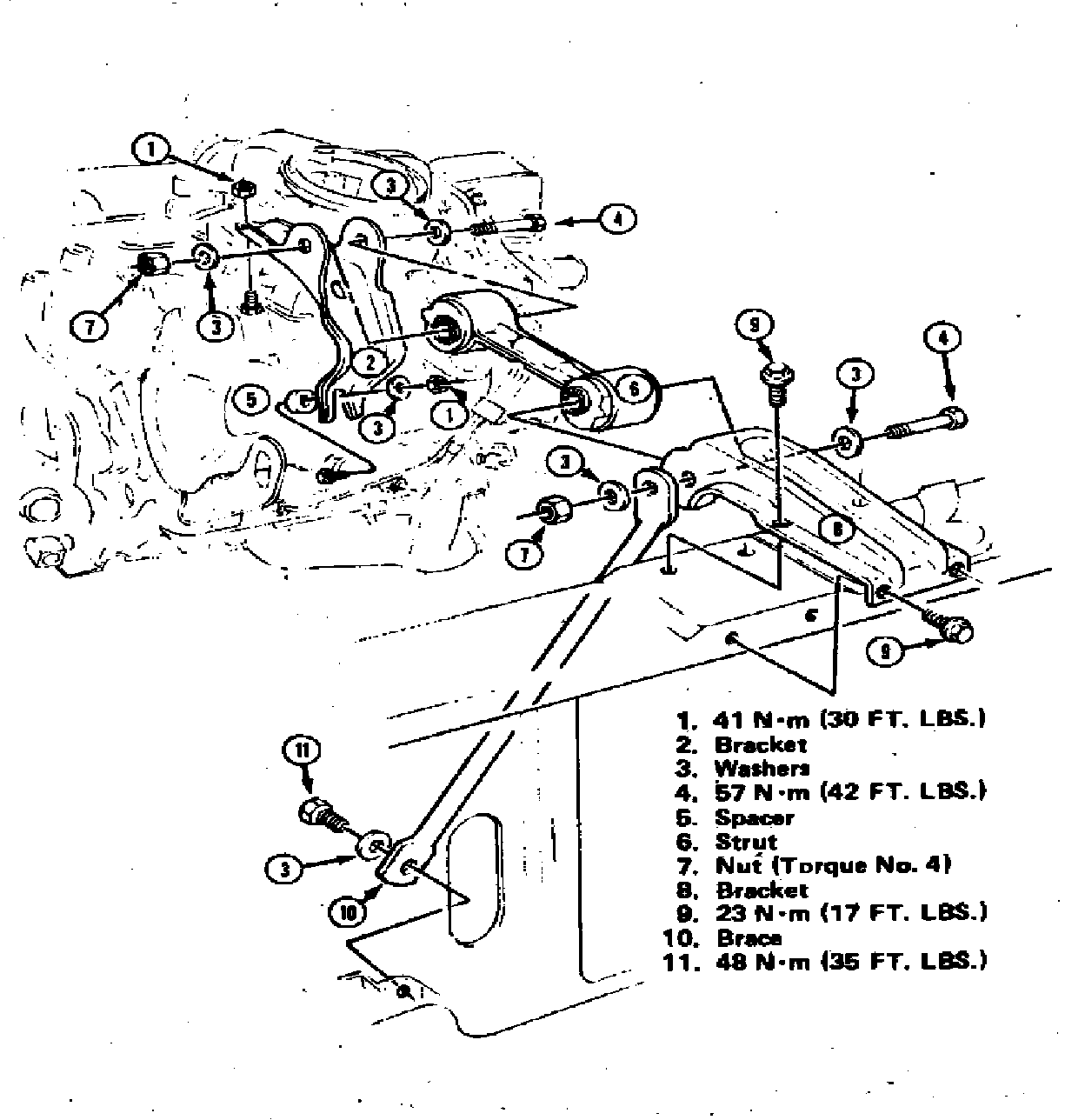

Fig. 9 Engine mount strut & bracket removal and installation. 1982-84 models:

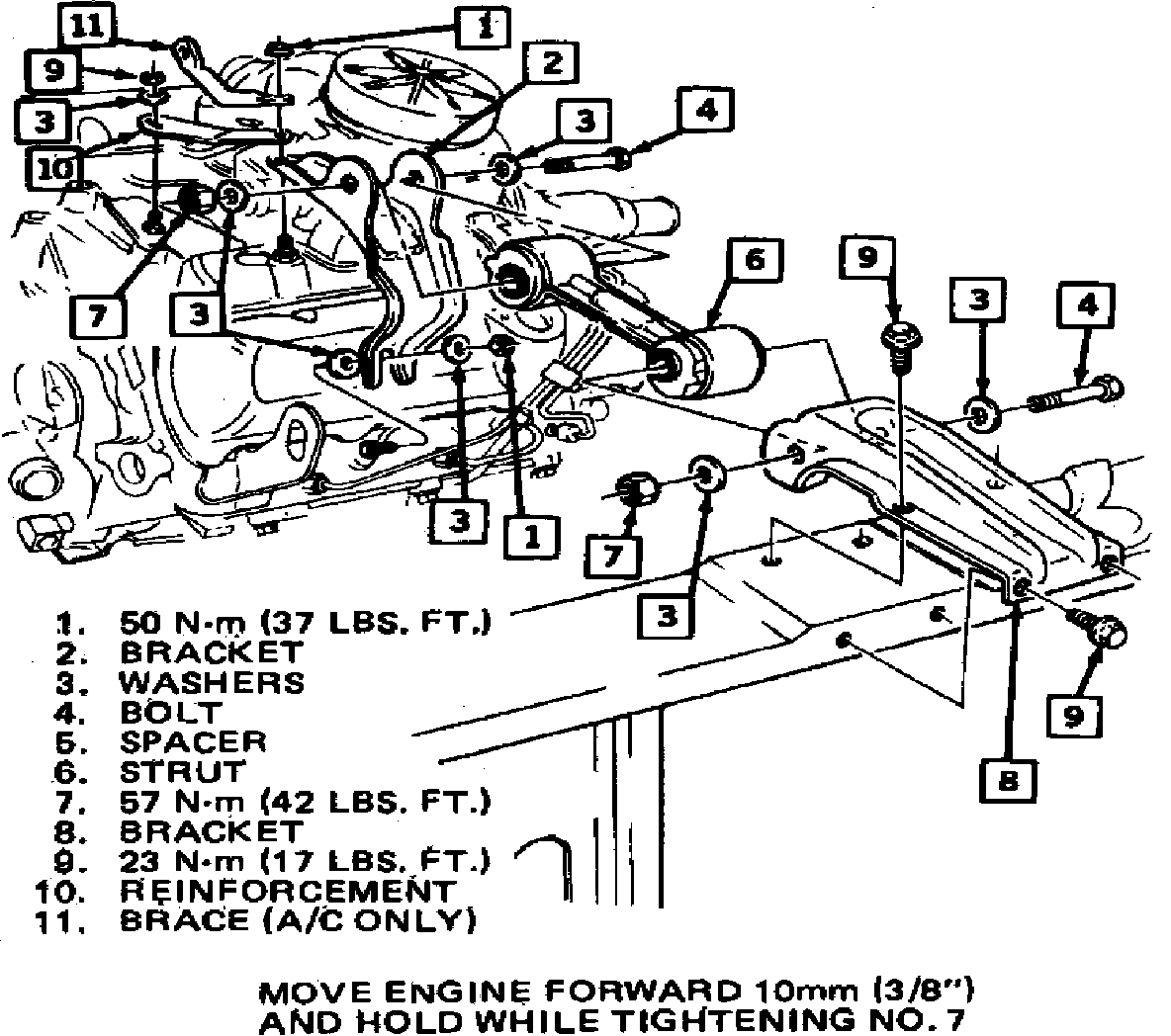

Fig. 10 Engine mount strut & bracket removal and installation. 1985 models:
