Home
>>
Buick
>>
1985
>>
Century L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
Vacuum and Vapor Hose Diagrams

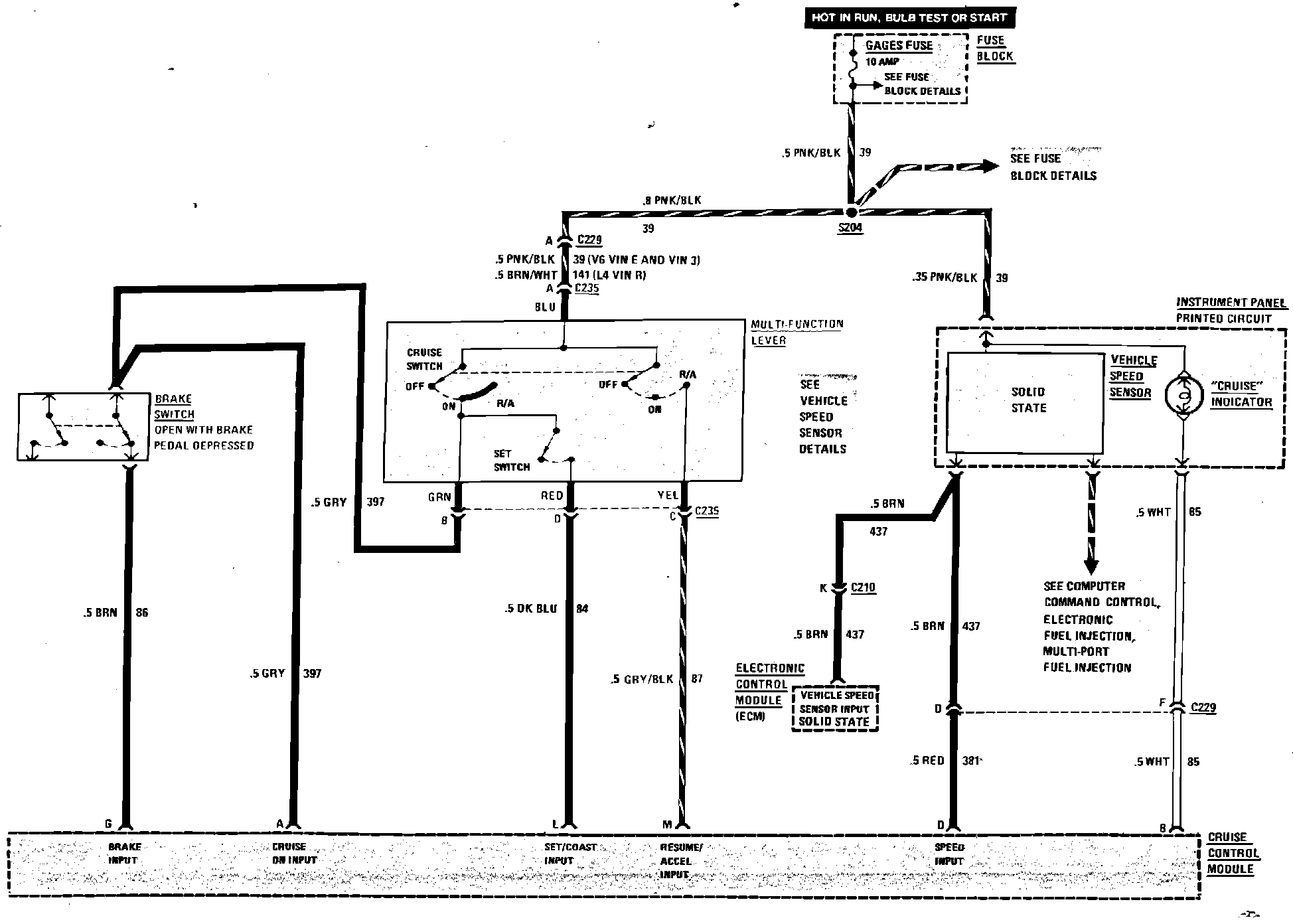

Fig. 86 Cruise Control Wiring Circuit - Less Digital Cluster:
