Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
Audible Warning Device

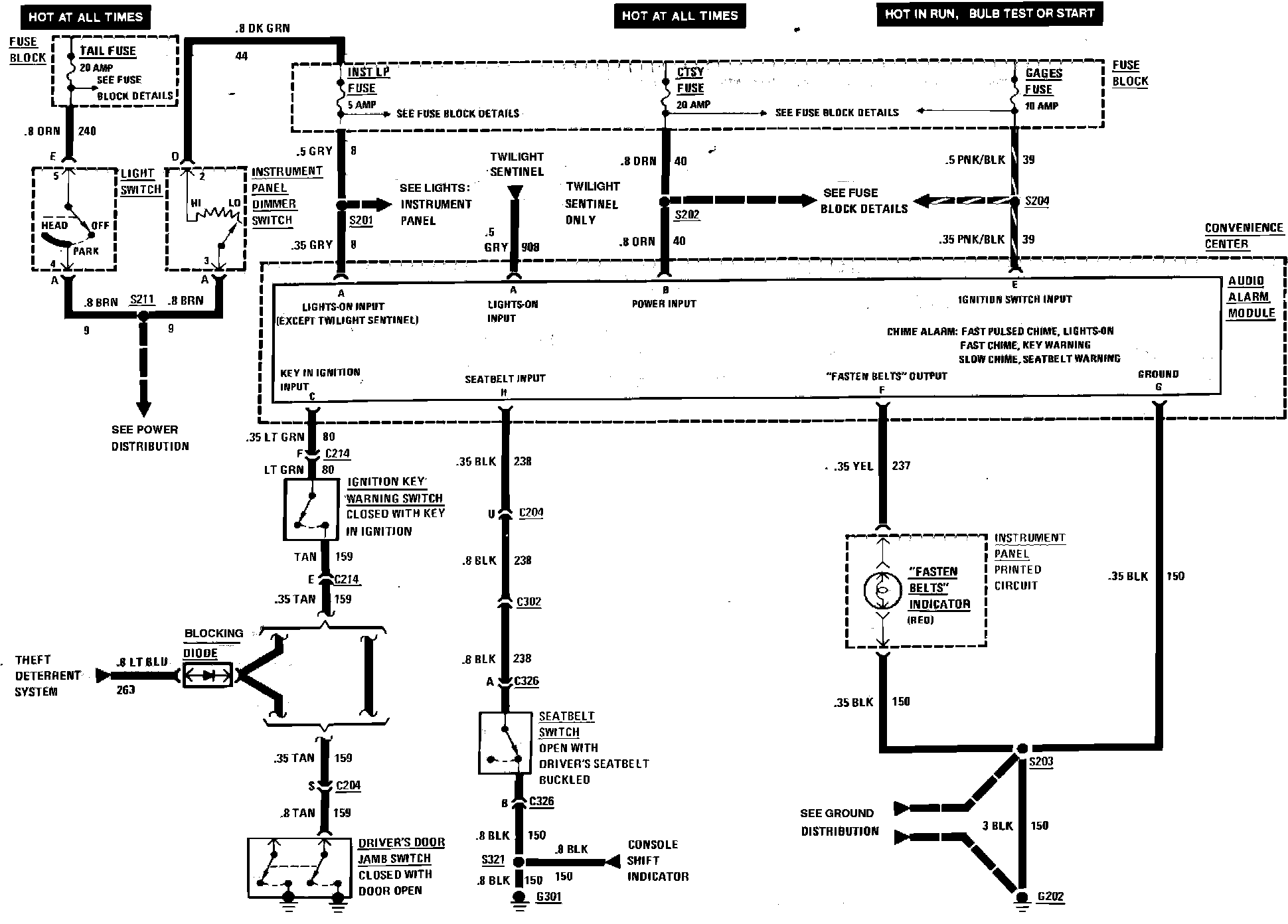

Fig. 25 Audio Alarm System Wiring Circuit:
