Clock, Console Shift Indicator & I/P

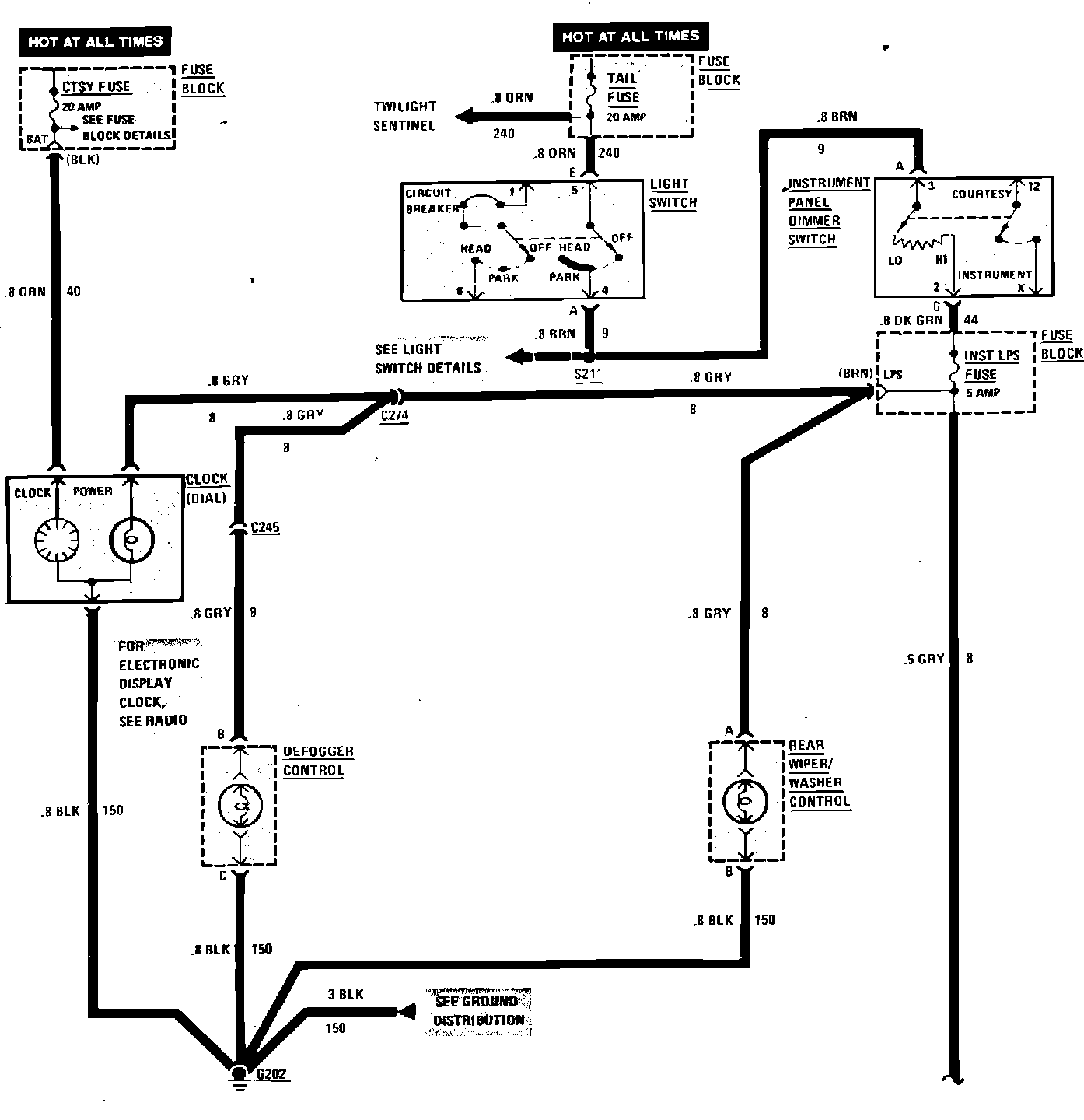

Fig. 67 Clock, Console Shift Indicator & Instrument Panel Lights Wiring Circuit (Part 1 of 2):
