Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel Printed Circuit (Typical)
>>
With Gauge Cluster
With Gauge Cluster

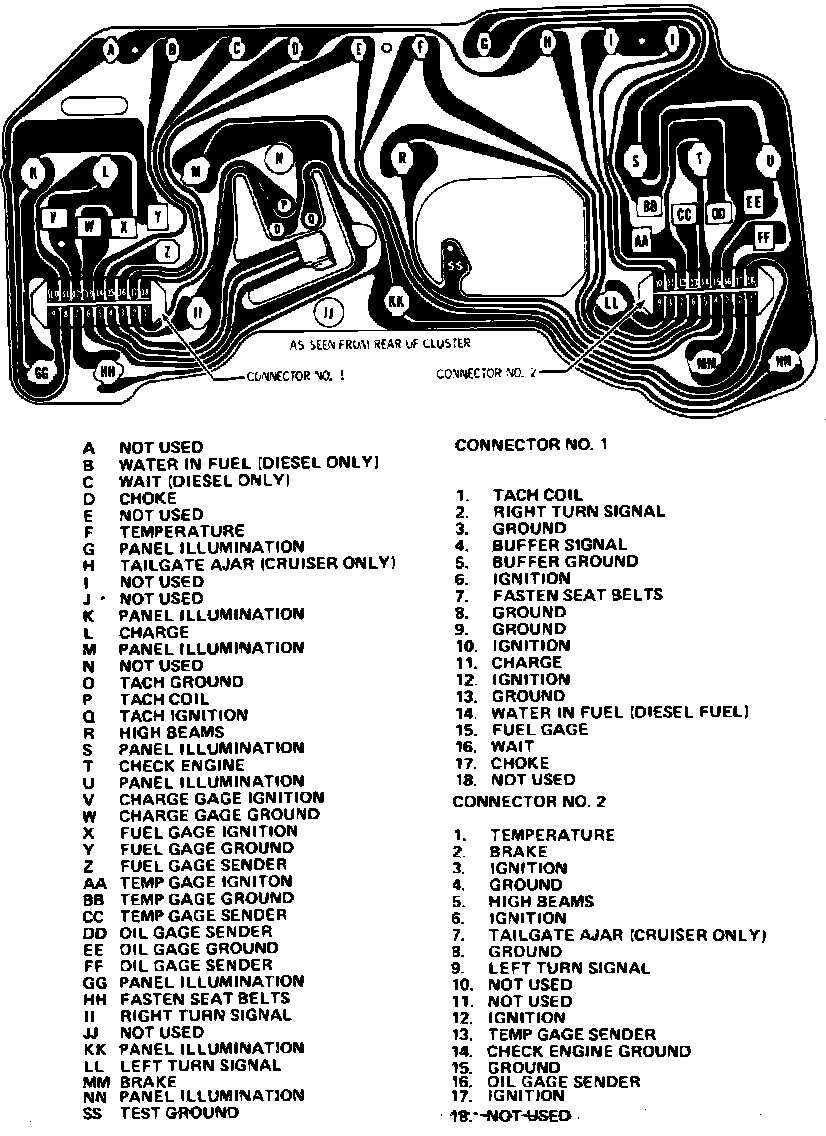

Instrument Panel Printed Circuit (With Gauges):
