With Gauges Cluster

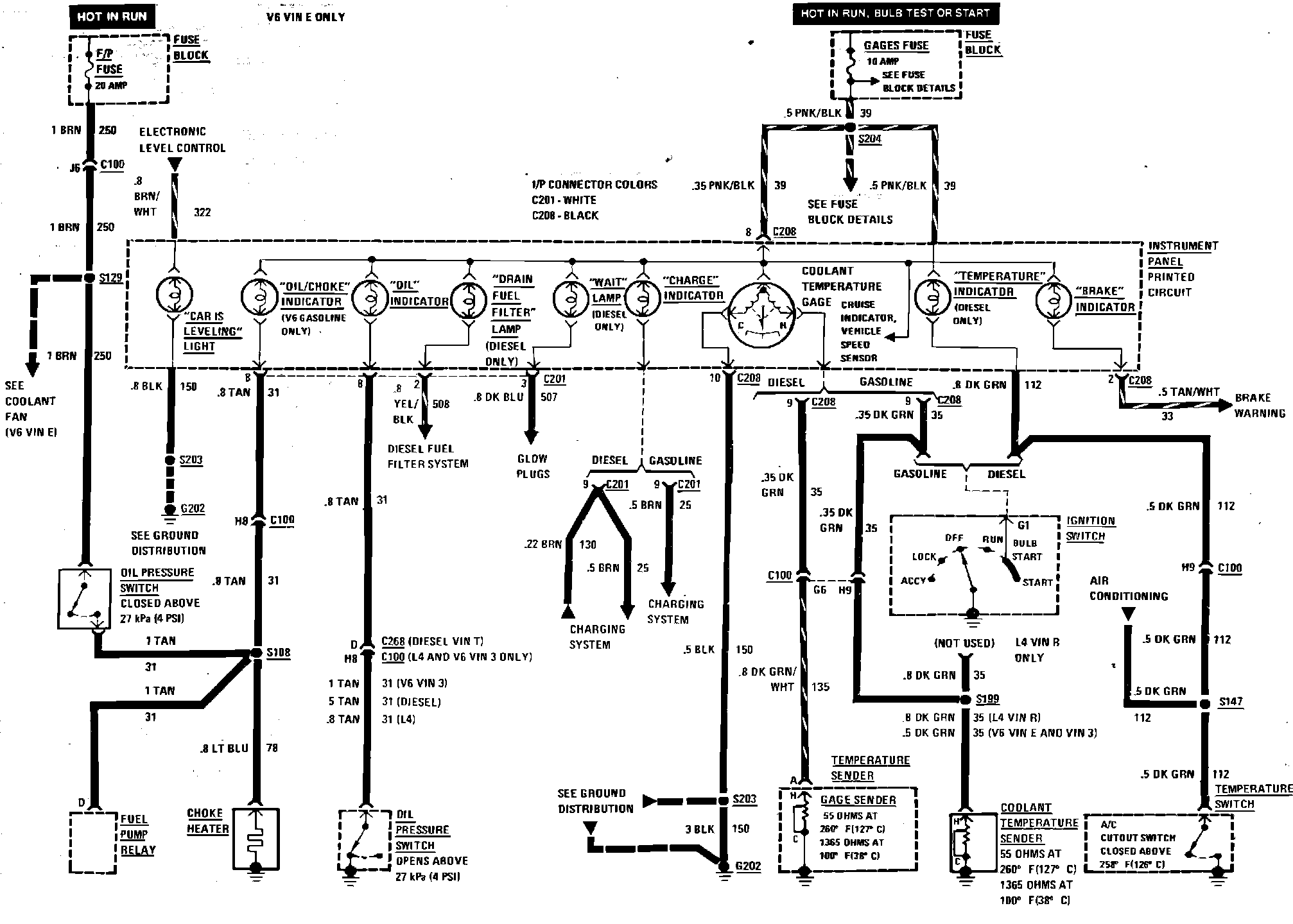

Fig. 177 Instrument Panel Wiring Circuit - With Gauge Cluster (Part 1 of 3):

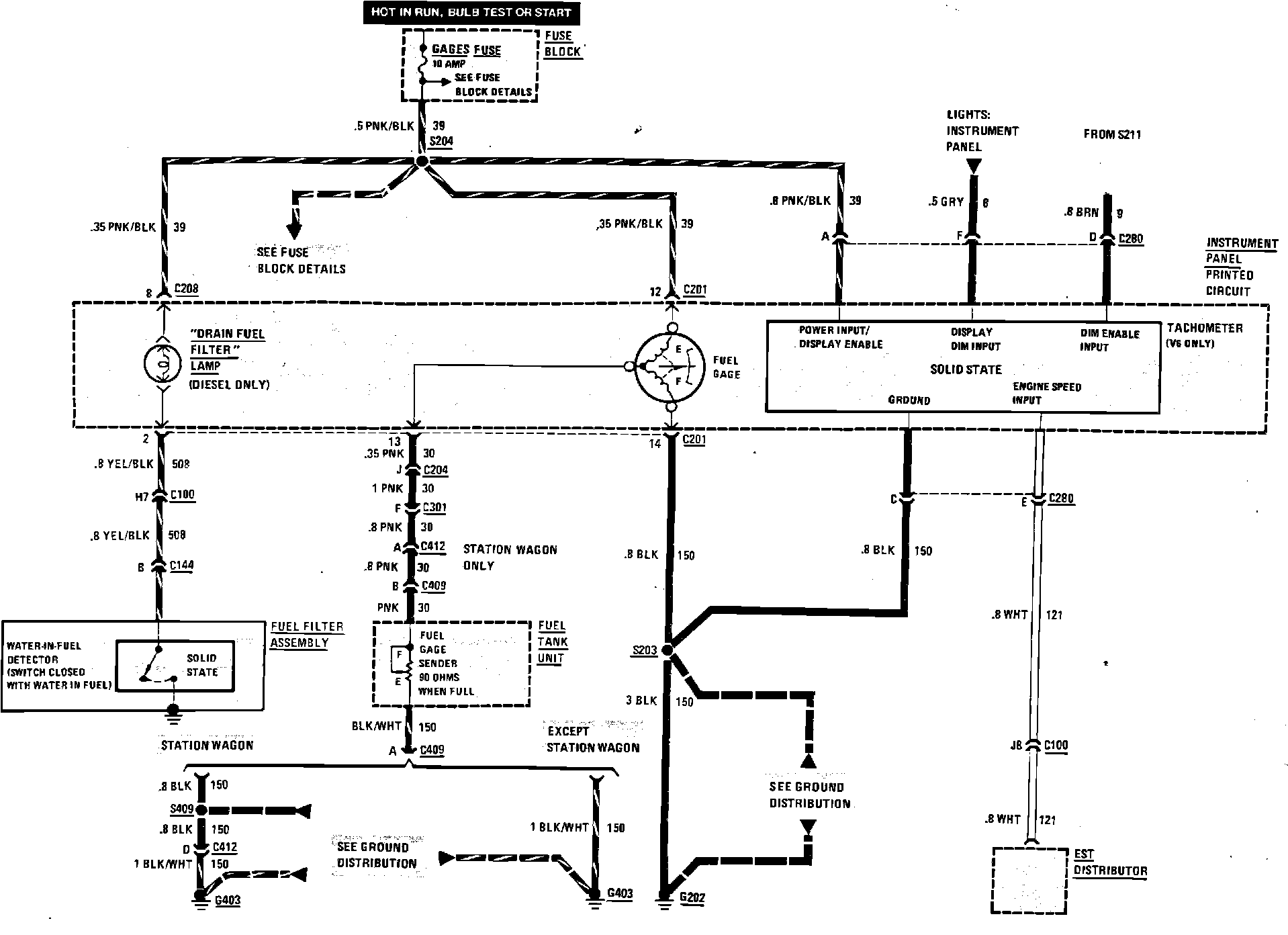

Fig. 177 Instrument Panel Wiring Circuit - With Gauge Cluster (Part 2 of 3):

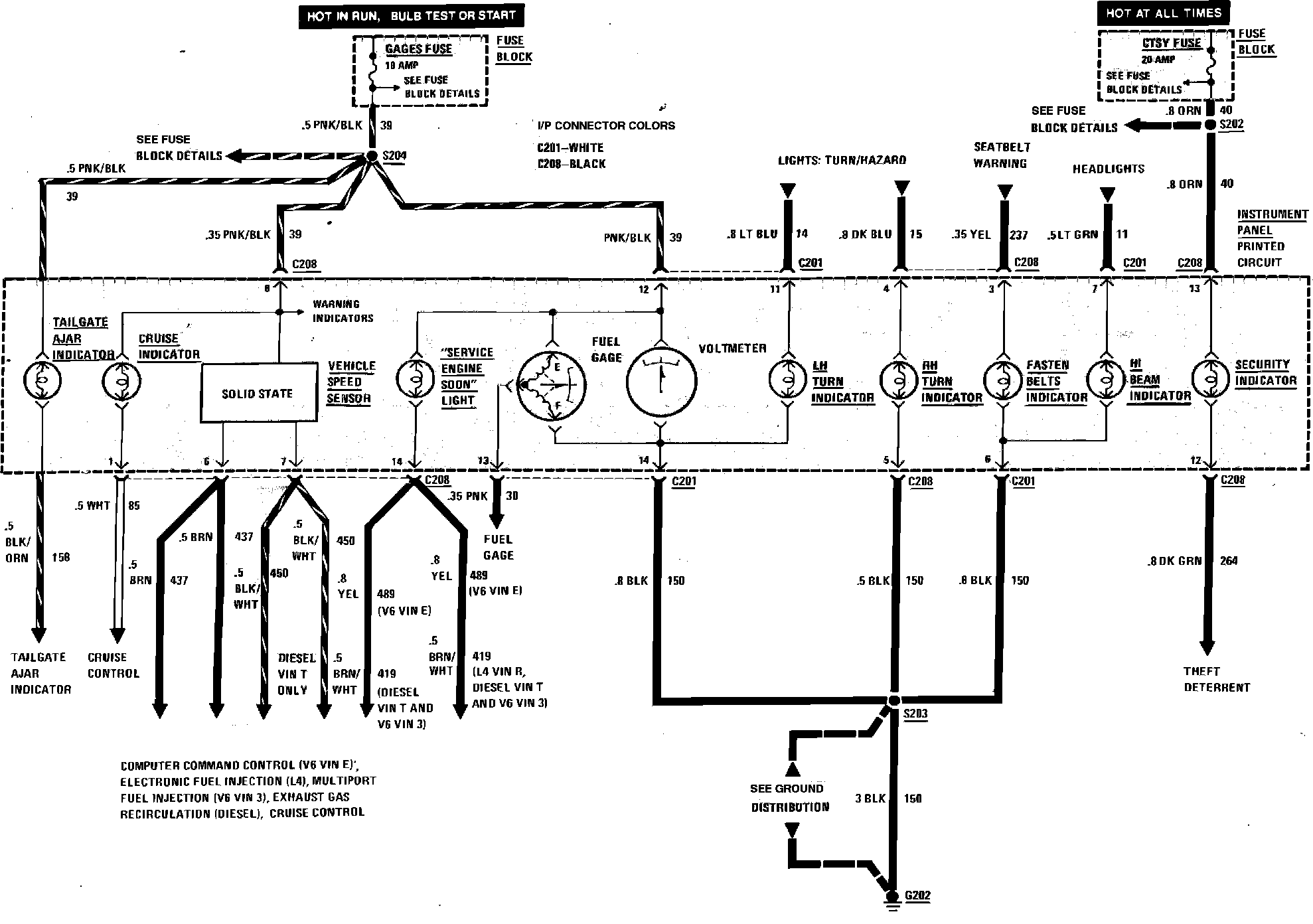

Fig. 177 Instrument Panel Wiring Circuit - With Gauge Cluster (Part 3 of 3):
