Center Mounted Brake Lamp

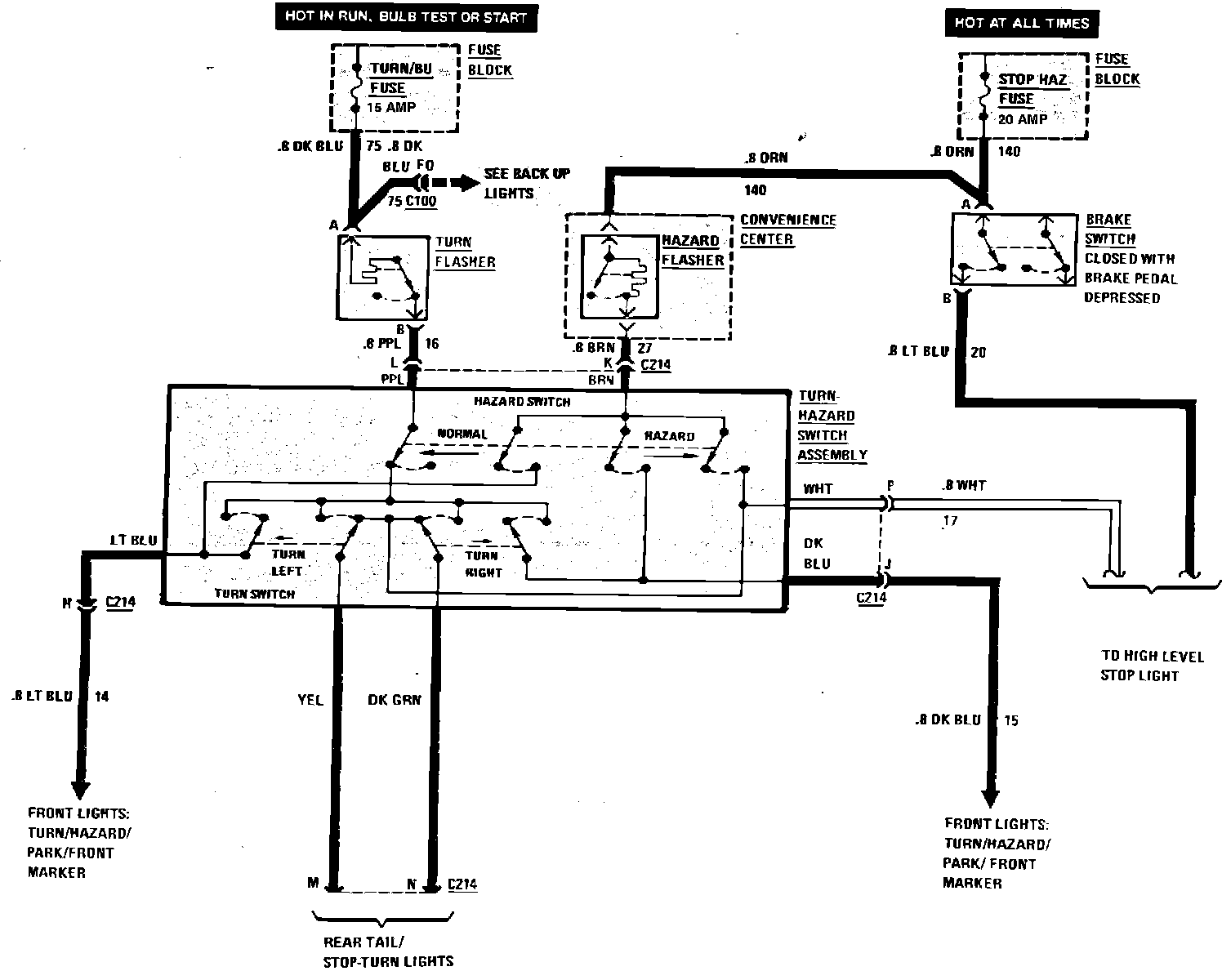

Fig. 237 Rear High Mounted Stop Lamp Wiring Circuit:



Fig. 237 Rear High Mounted Stop Lamp Wiring Circuit:
