Engine Data Sensors & Torque Converter Clutch (TCC)

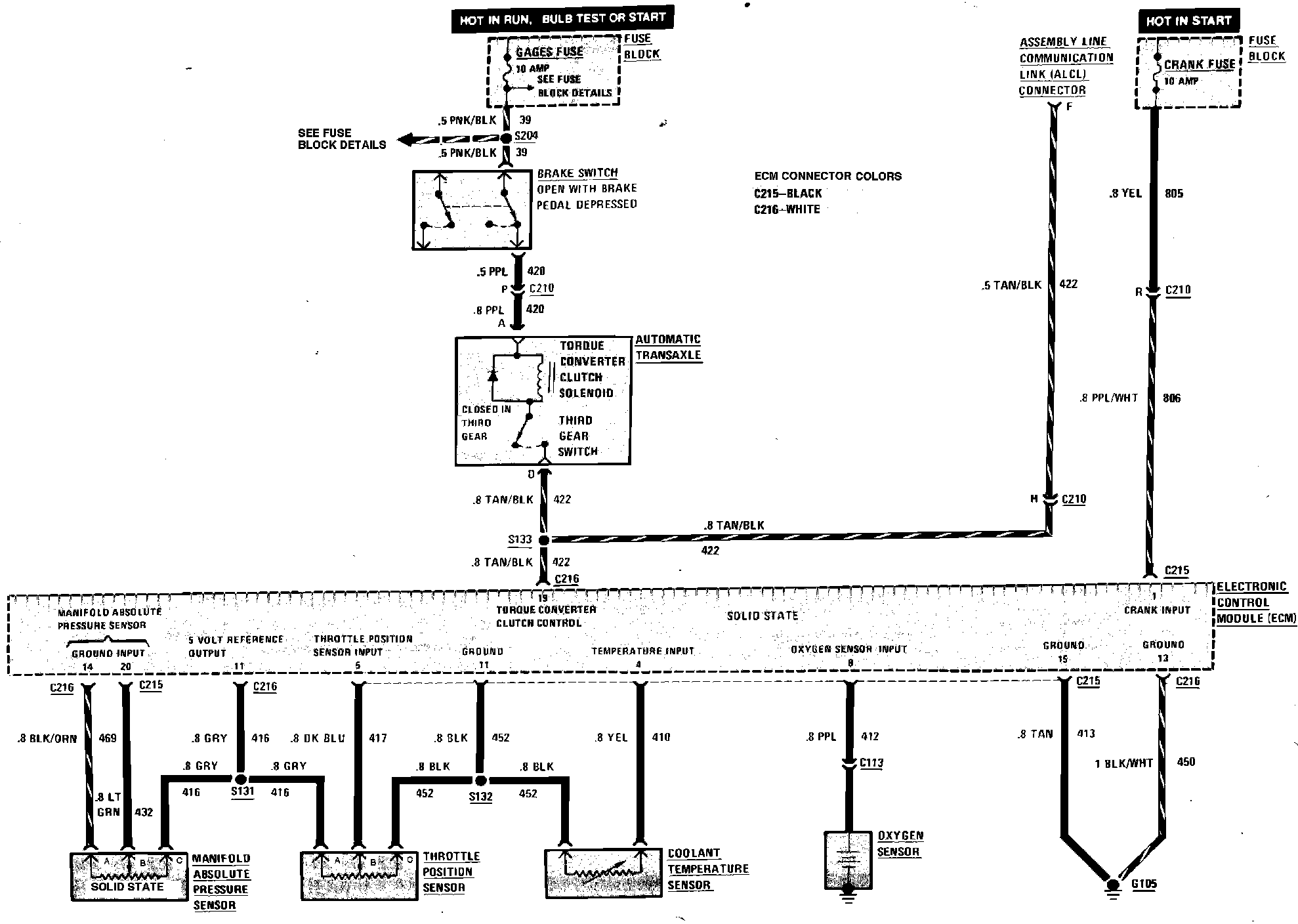

Fig. 95 Electronic Fuel Injection (Engine Data Sensors & Torque Converter Clutch) Wiring Circuit:
