Home >> Buick >> 1985 >> Century L4-151 2.5L VIN R TBI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Wiring Circuit >> Part 1 of 4

Part 1 of 4

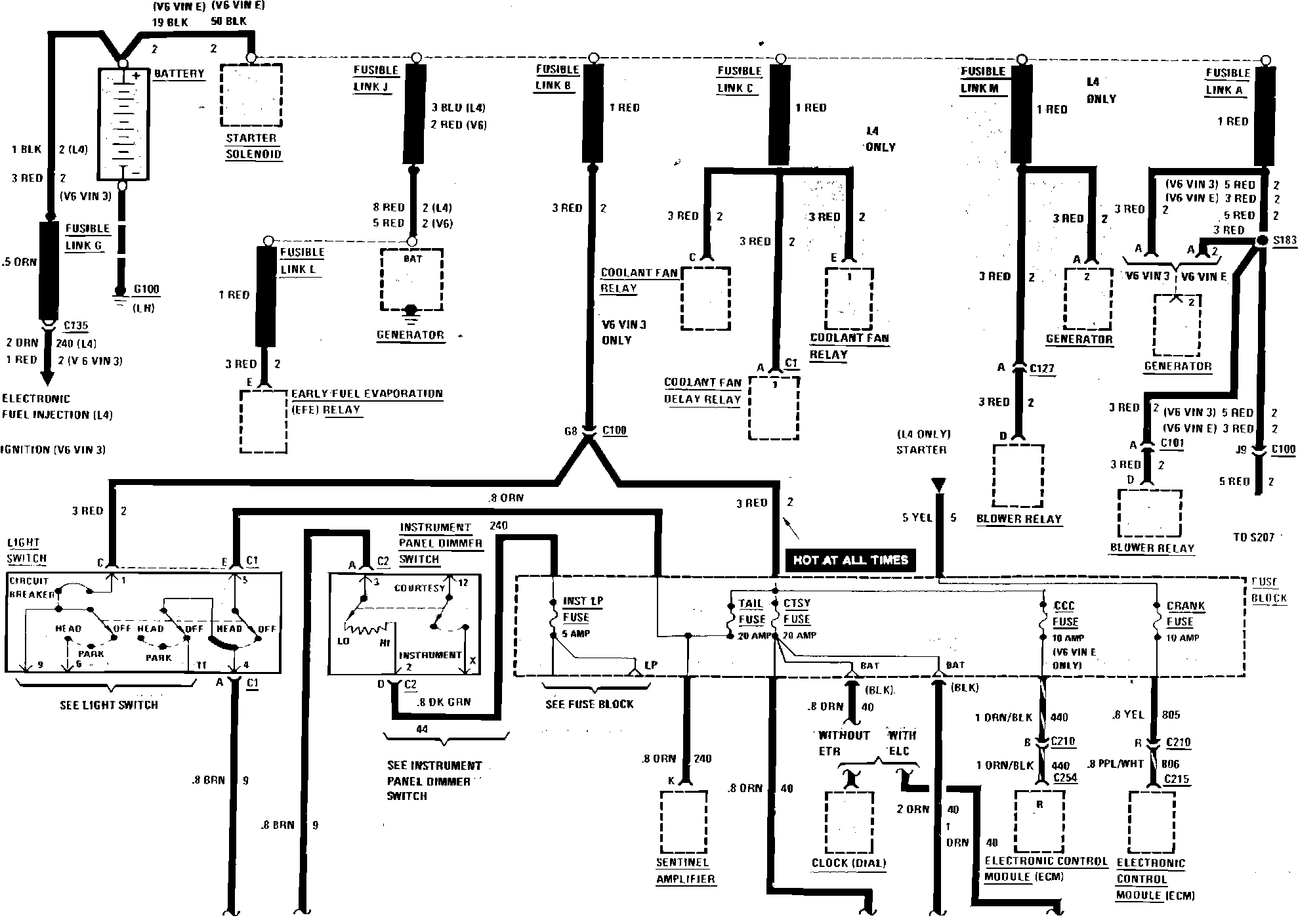

Fig. 216 Power Distribution (Part 1 of 4):
