Strut Remove/Replace

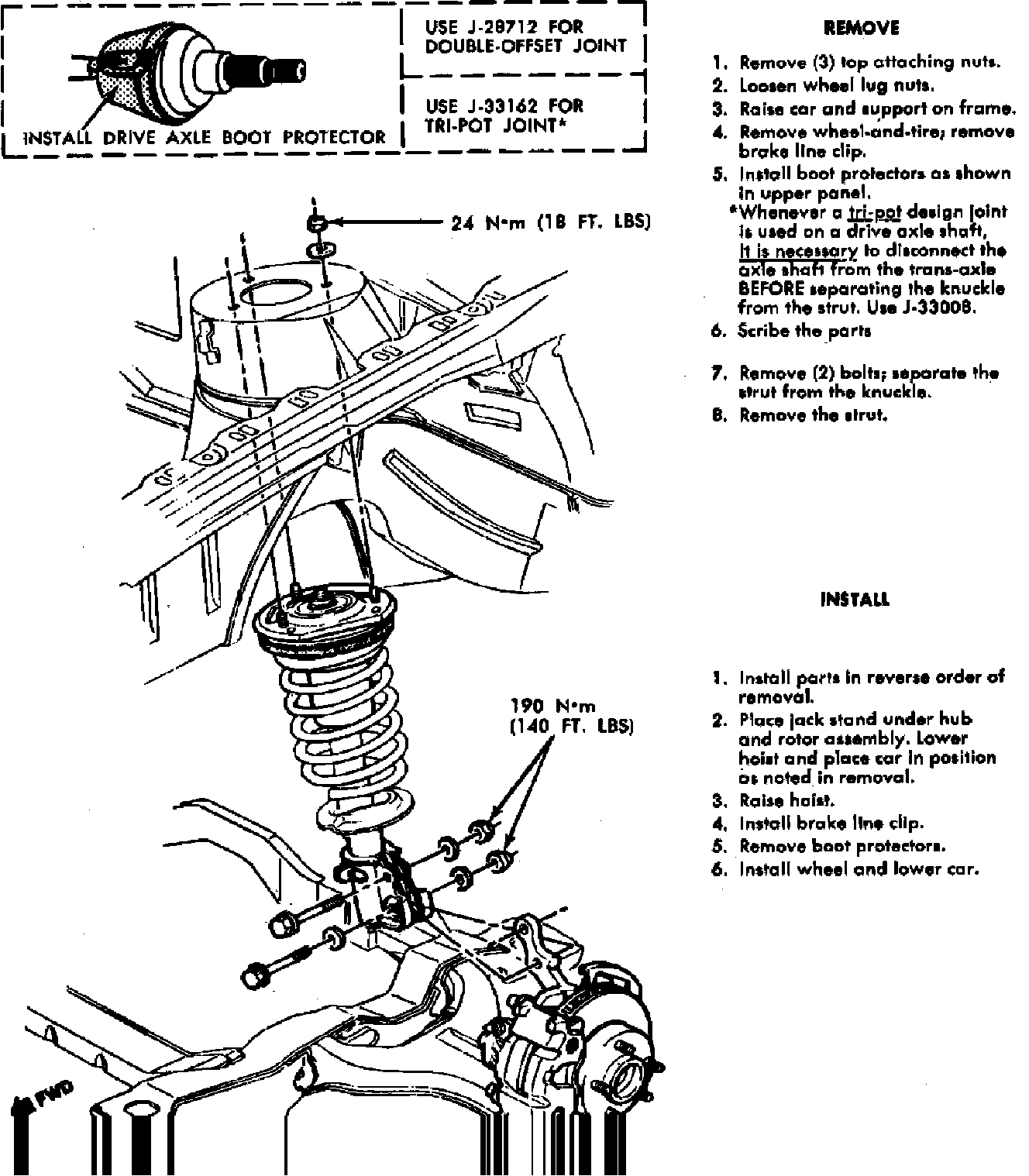

Fig. 9 Strut assembly removal & installation:





For removal and installation procedures, refer to Fig. 9.
