Century L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Rear
Rear

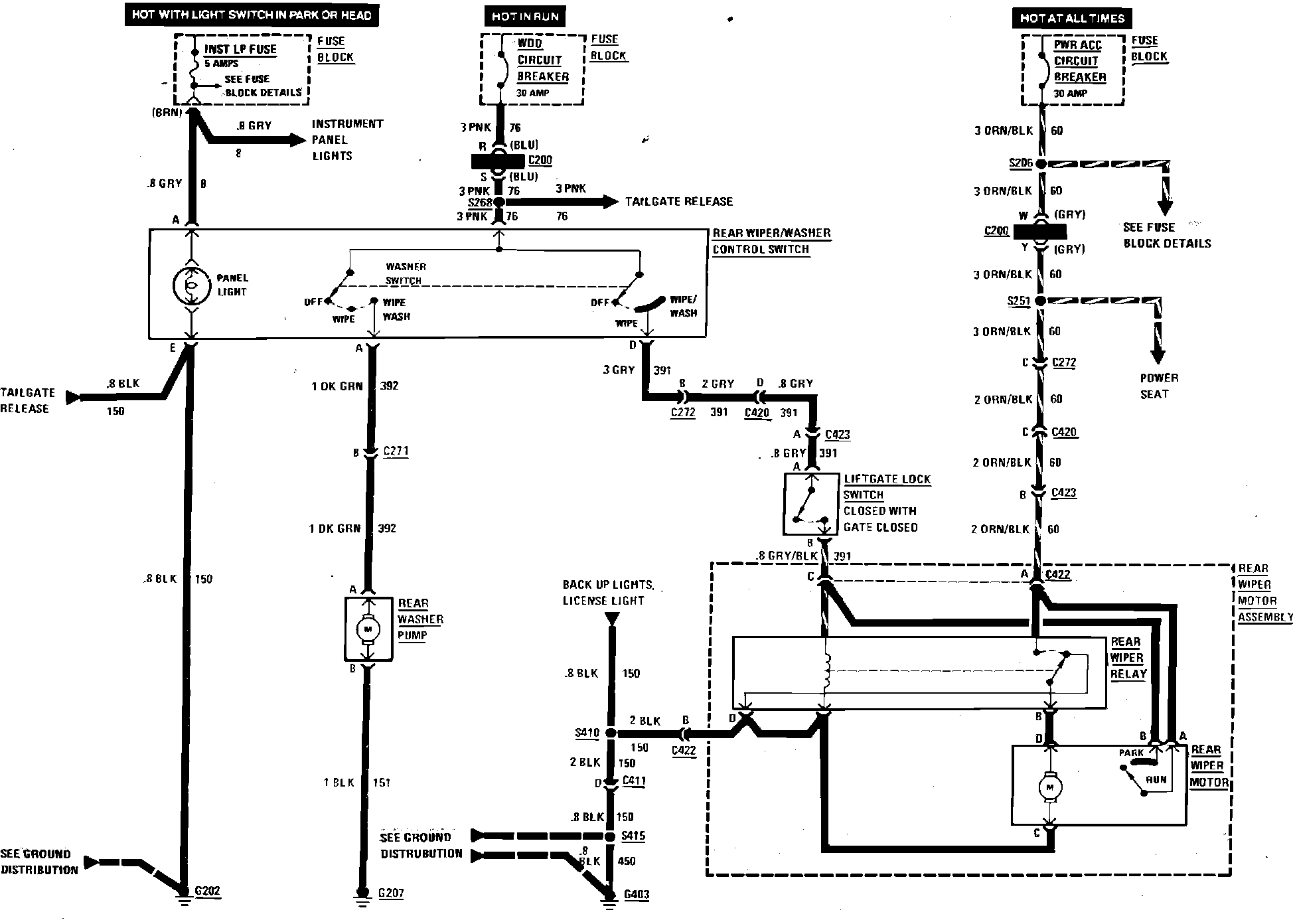

Fig. 257 Rear Wiper/Washer Wiring Circuit:
