Home >> Buick >> 1985 >> Century V6-260 4.3L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls

Engine Controls

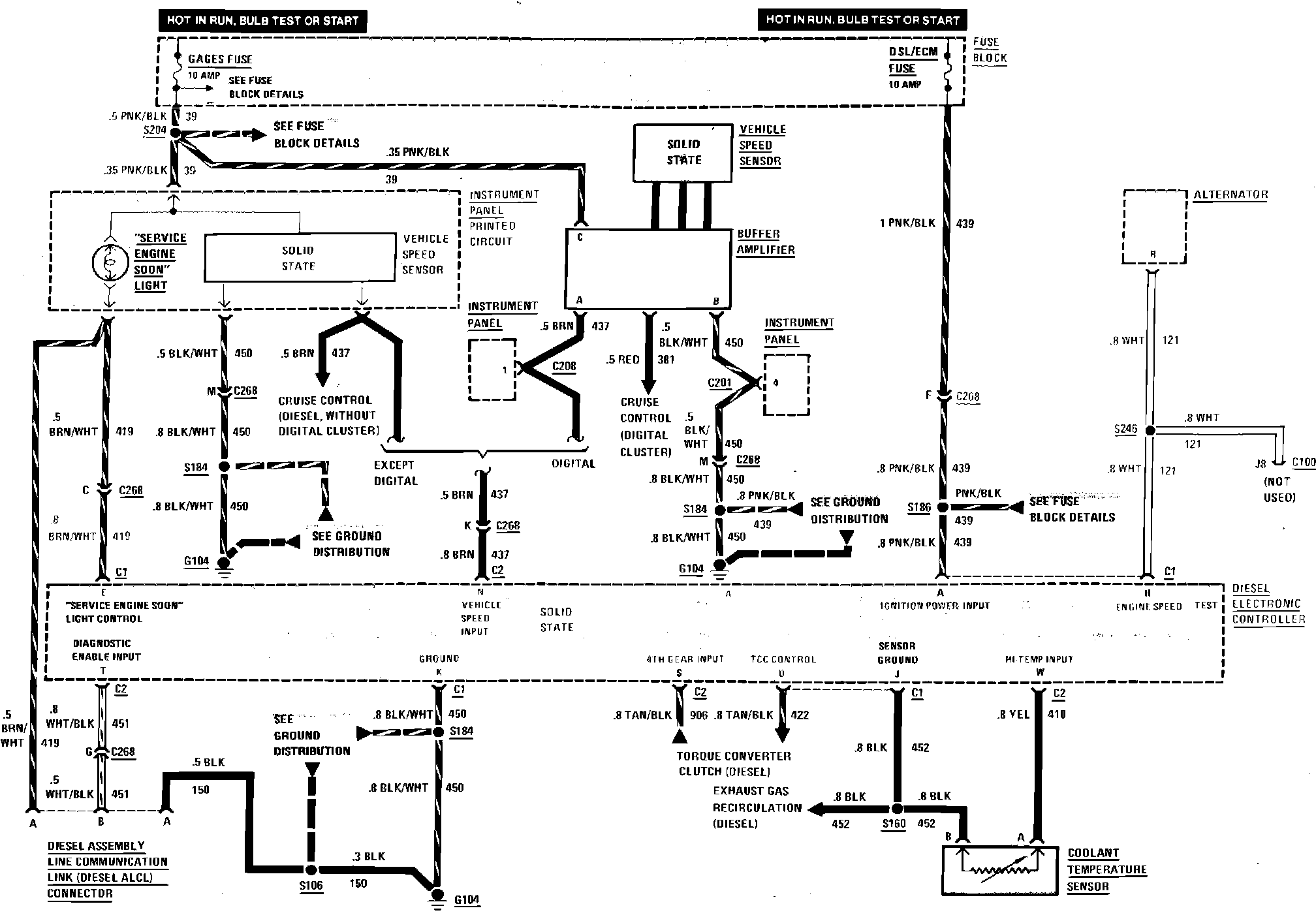

Fig. 82 Diesel Engine Control Wiring Circuit:
