Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Century V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

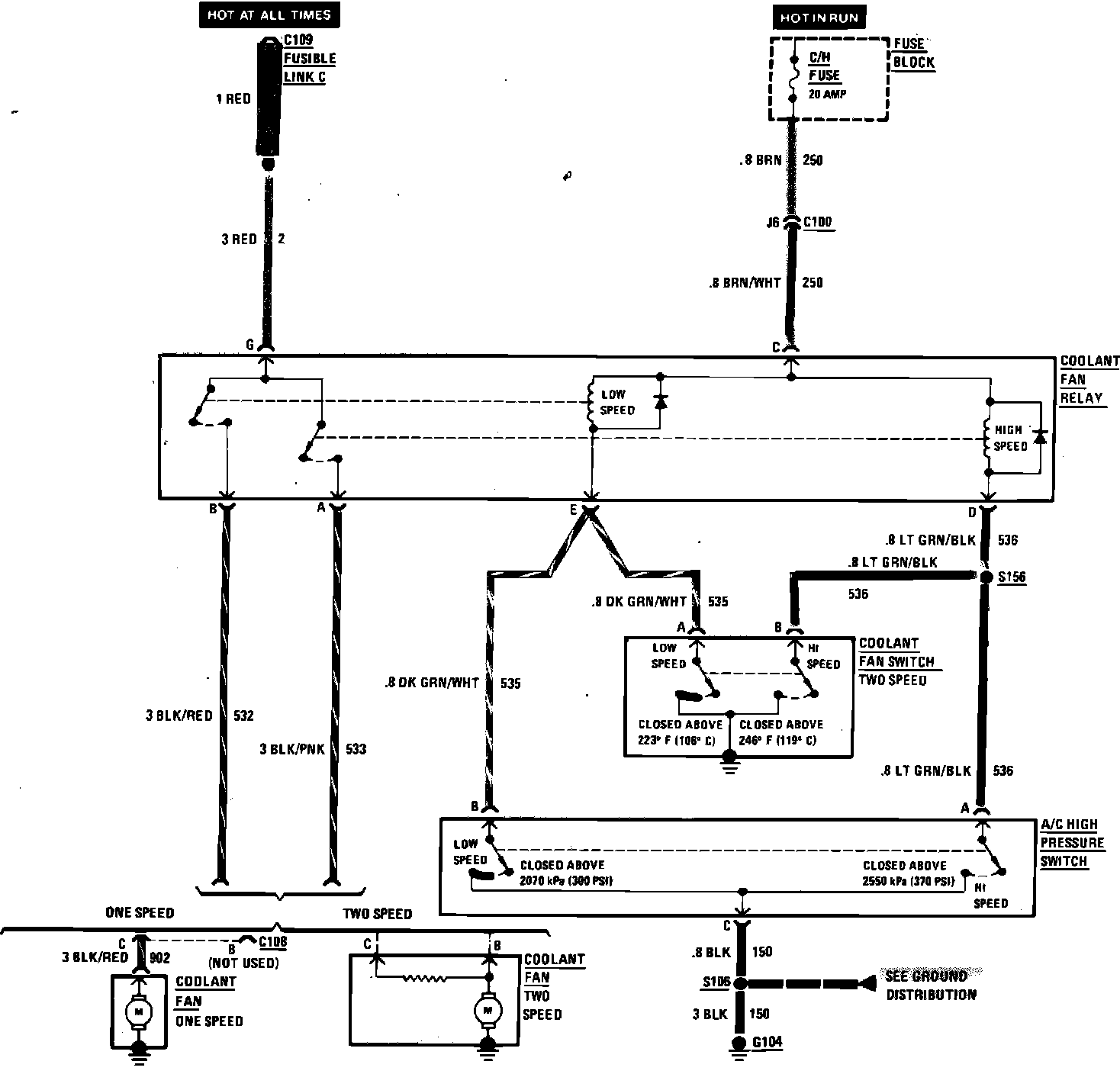

Fig. 107 Engine Cooling Fan Wiring Circuit:
