Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Electra Estate Wagon V8-350 5.7L DSL
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Wiring Circuit
>>
With Twilight Sentinel (Part 1 of 2)
With Twilight Sentinel (Part 1 of 2)

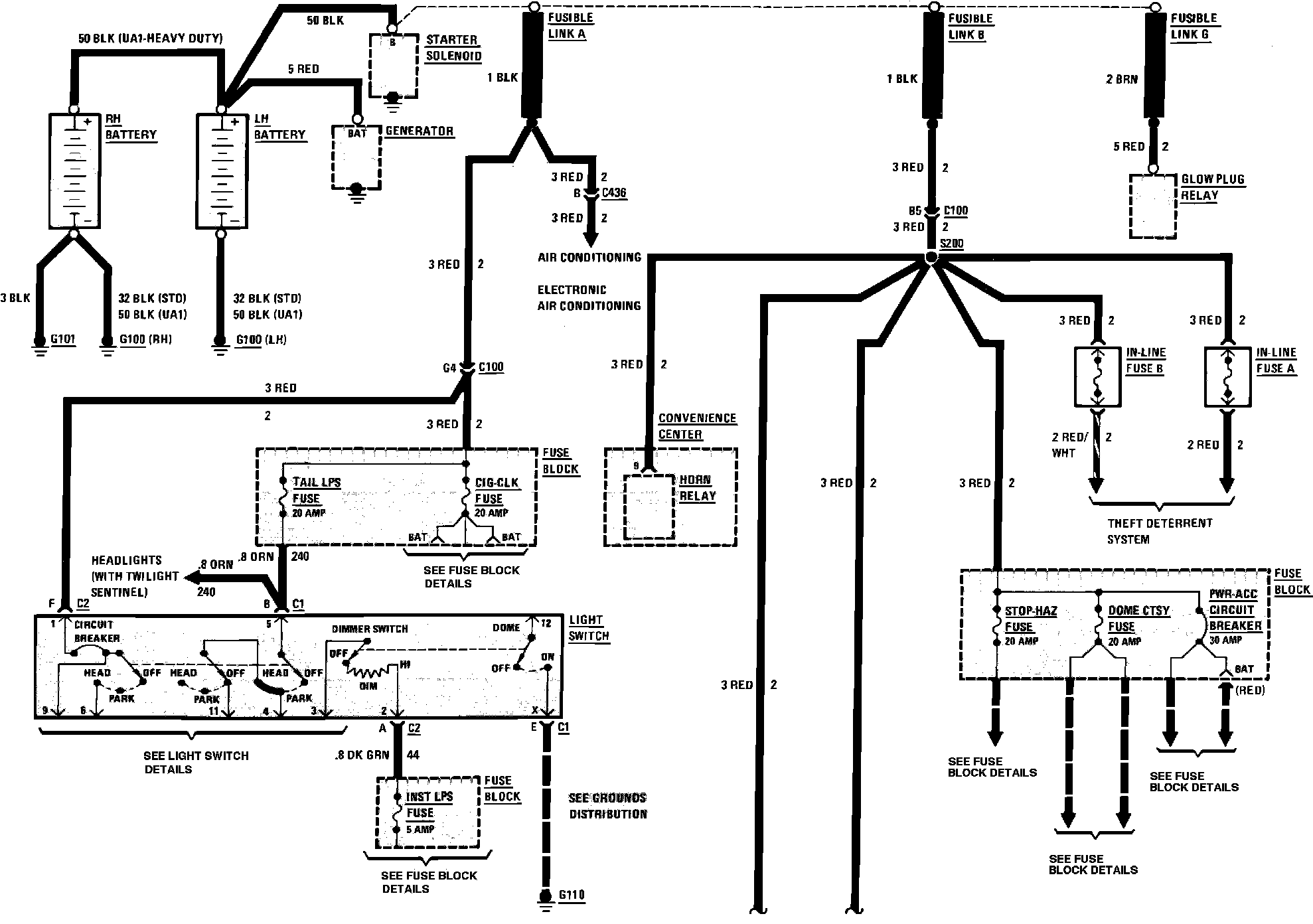

Power Distribution, With Twilight Sentinel:
