Torque Converter Clutch & Engine Light
Torque Converter Clutch & Engine Light

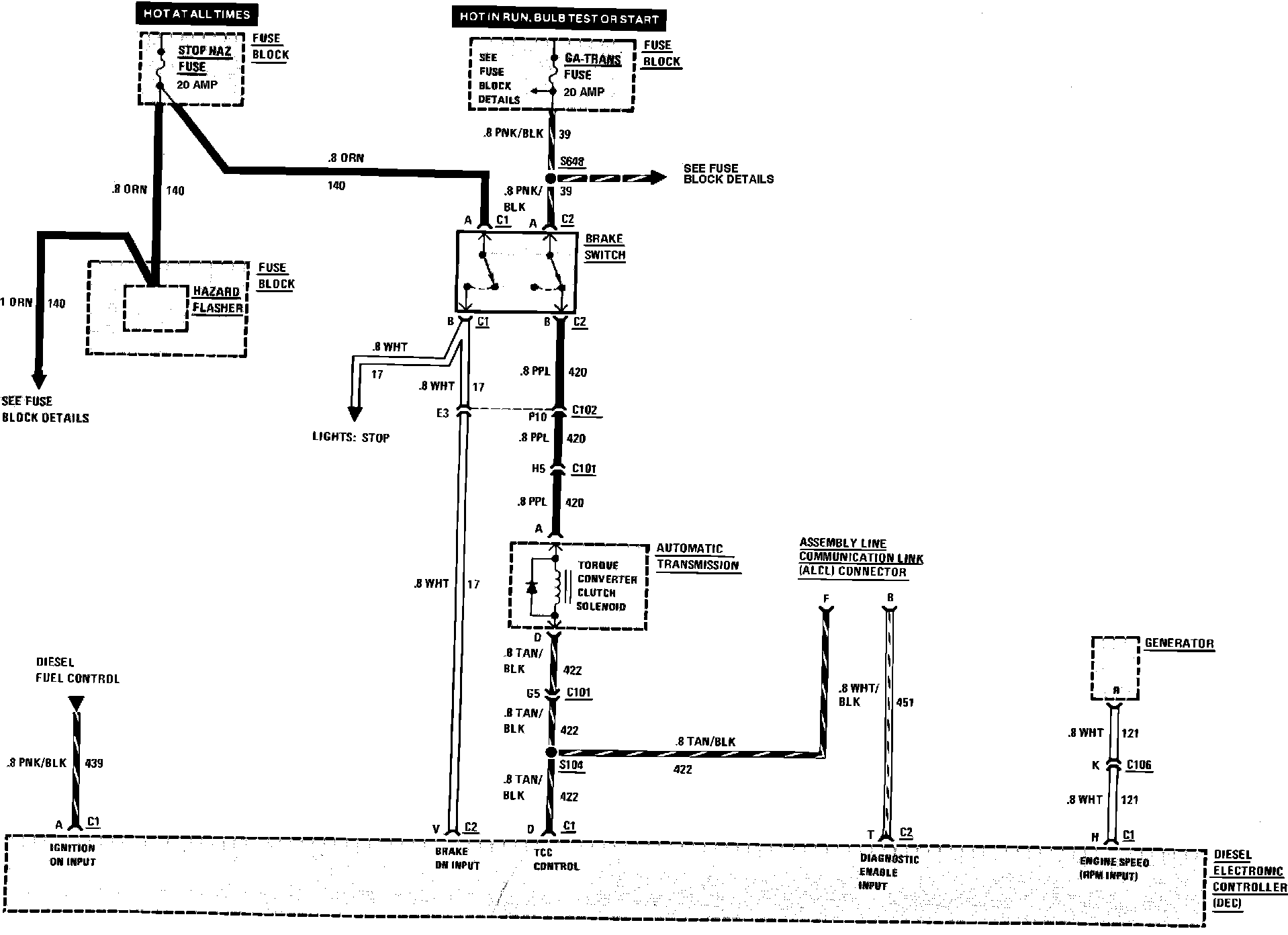

Diesel Torque Converter Clutch & Engine Light Wiring Circuit:
Diesel Torque Converter Clutch & Engine Light Wiring Circuit:
