Air Flow Sensor & Emission Control
Air Flow Sensor & Emission Control

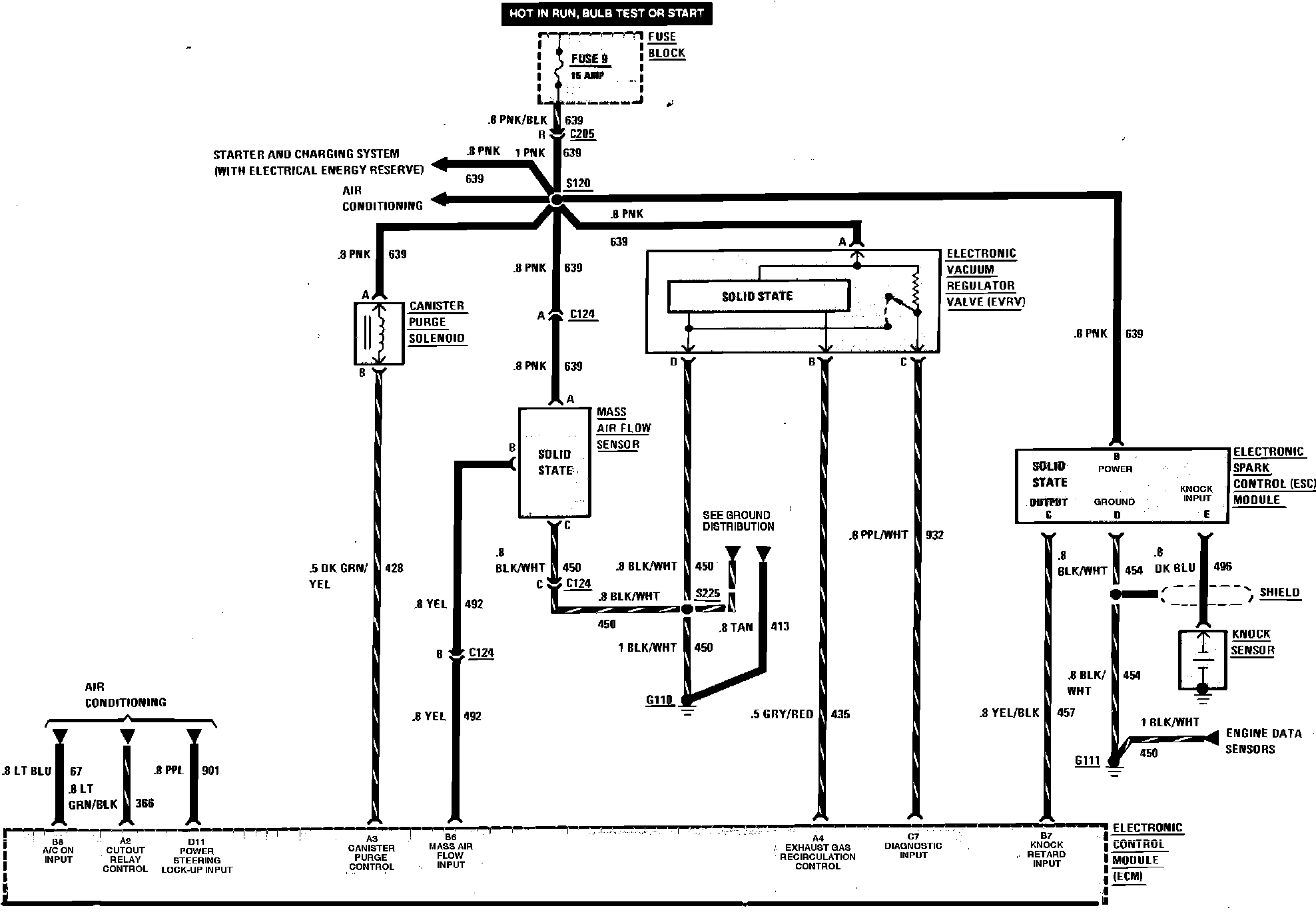

Multiport Fuel Injection (Air Flow Sensor & Emission Control) Wiring Circuit, Electra:
