Engine Data Sensors, Fuel Injectors & Torque Converter Clutch
Engine Data Sensors, Fuel Injectors & Torque Converter Clutch

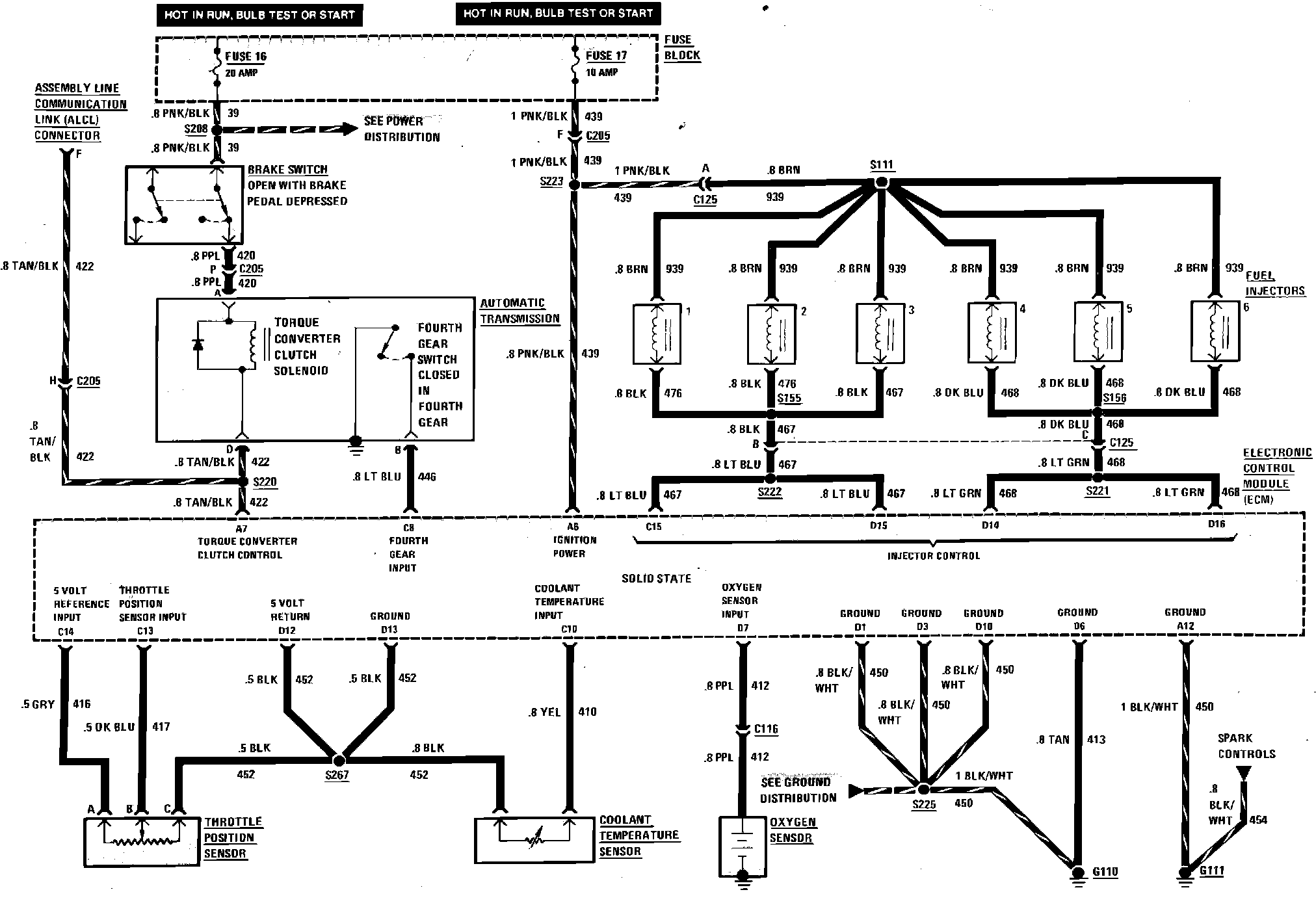

Multiport Fuel Injection (Fuel Injectors, Engine Data Sensors & Torque Converter Clutch) Wiring Circuit, Electra:
