Home
>>
Buick
>>
1985
>>
Electra V6-181 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block Diagrams
>>
Fuse Block Details
>>

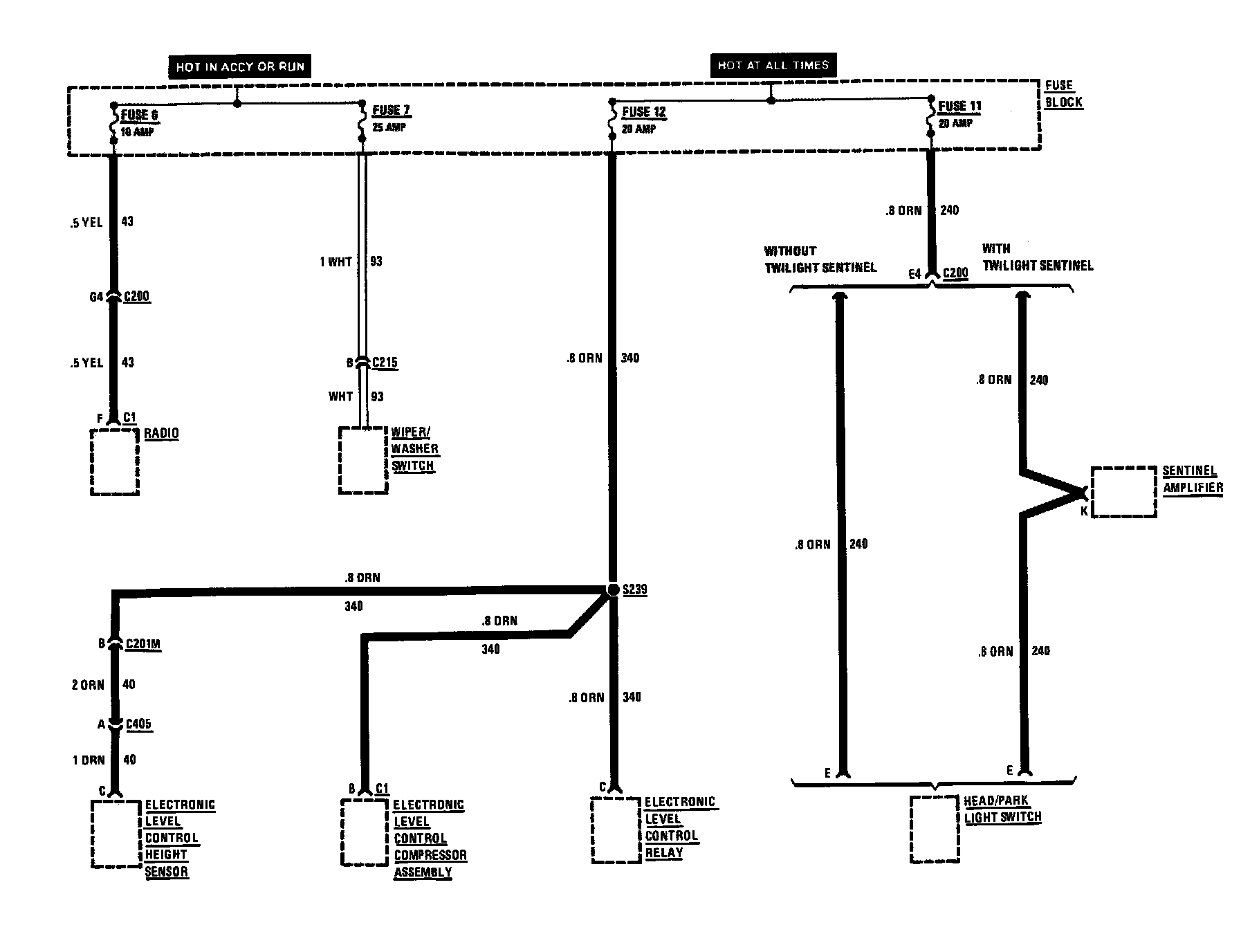

Fuse 6, 7, 1, 11, and 12
Fuse 6, 7, 1, 11, and 12
