Home >> Buick >> 1985 >> Electra V6-181 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse Block Diagrams >> Fuse Block Details >> Fuse 9

Fuse 9

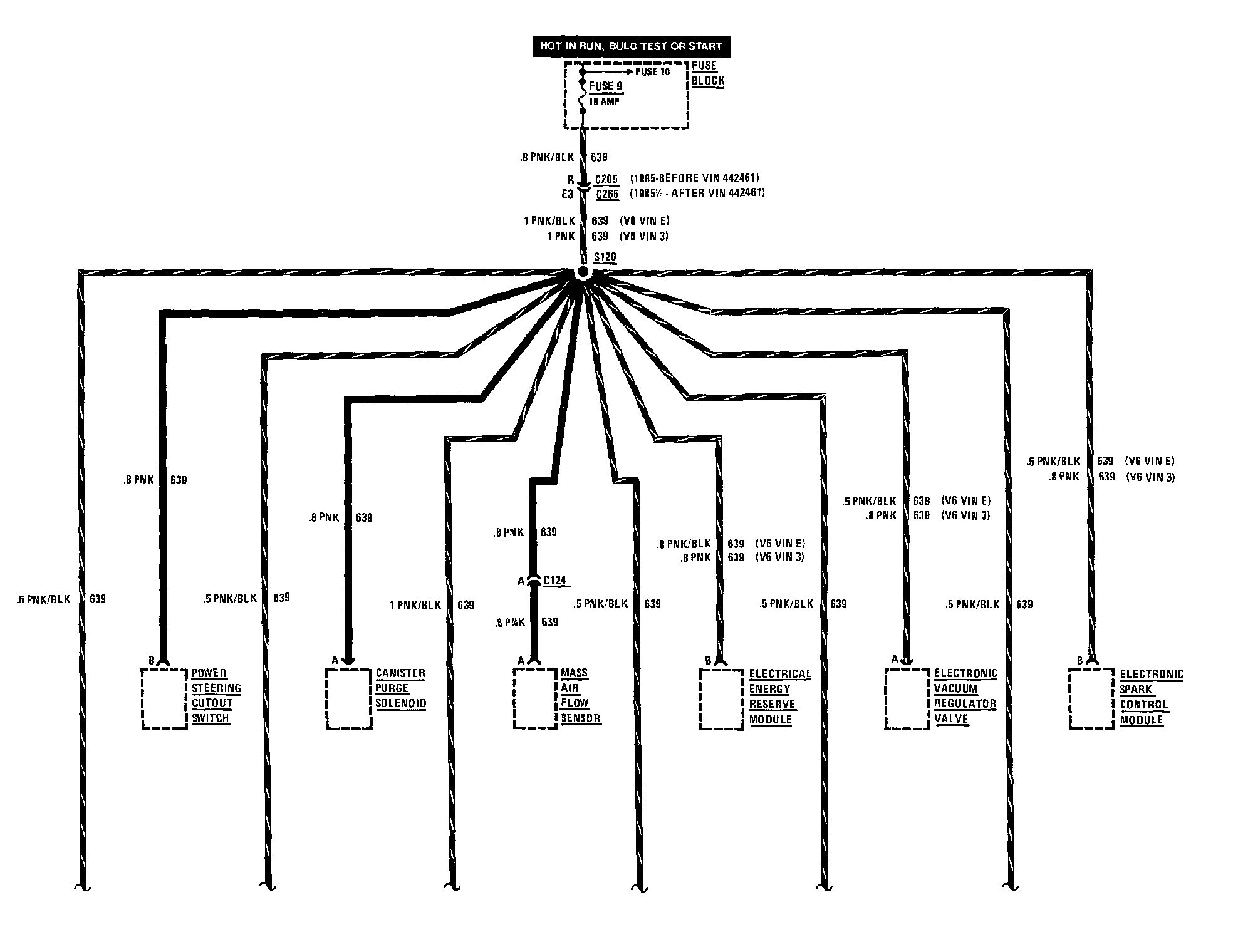

Part (1 Of 2):

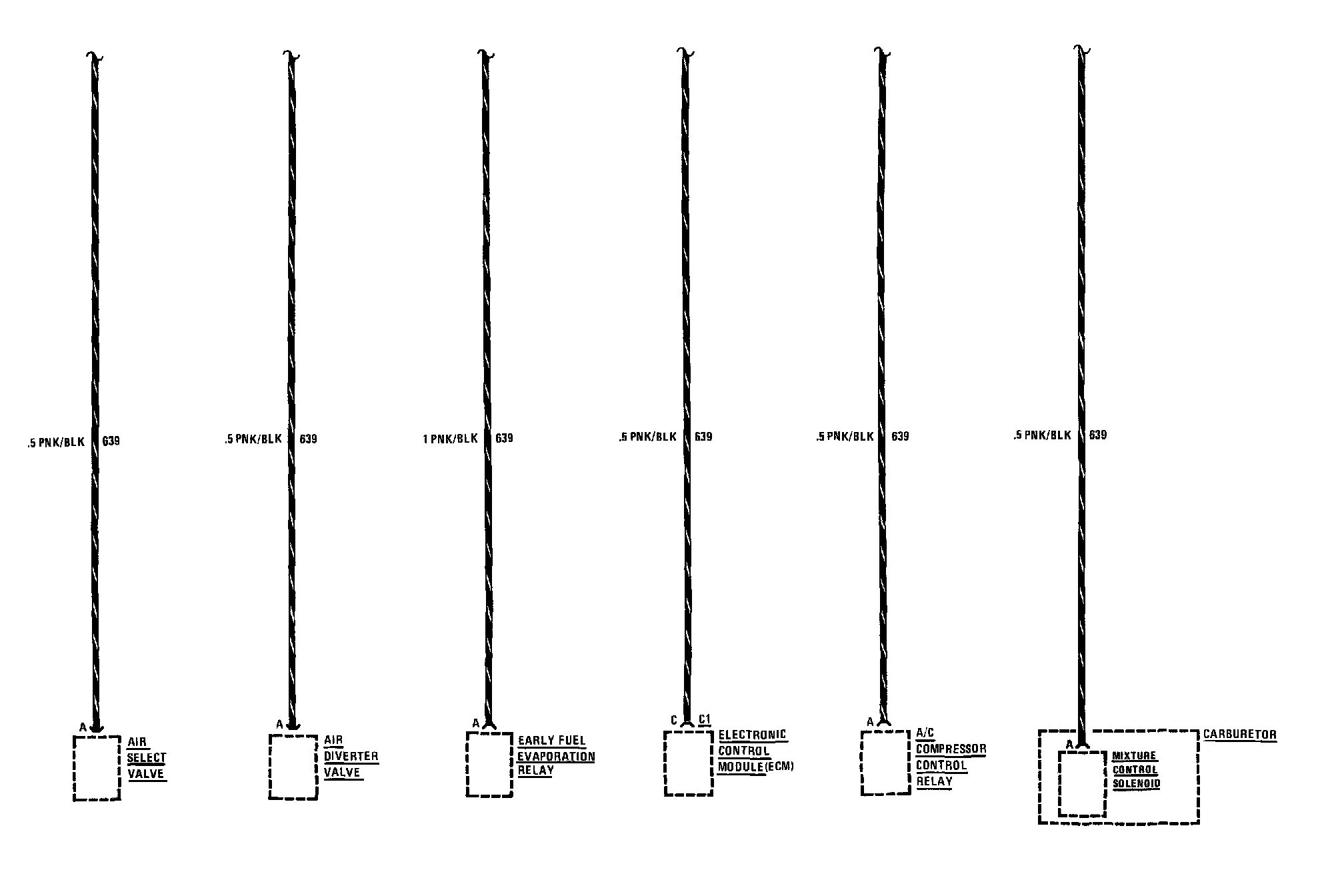

Part (2 Of 2):
