Less Energy Reserve
Less Energy Reserve

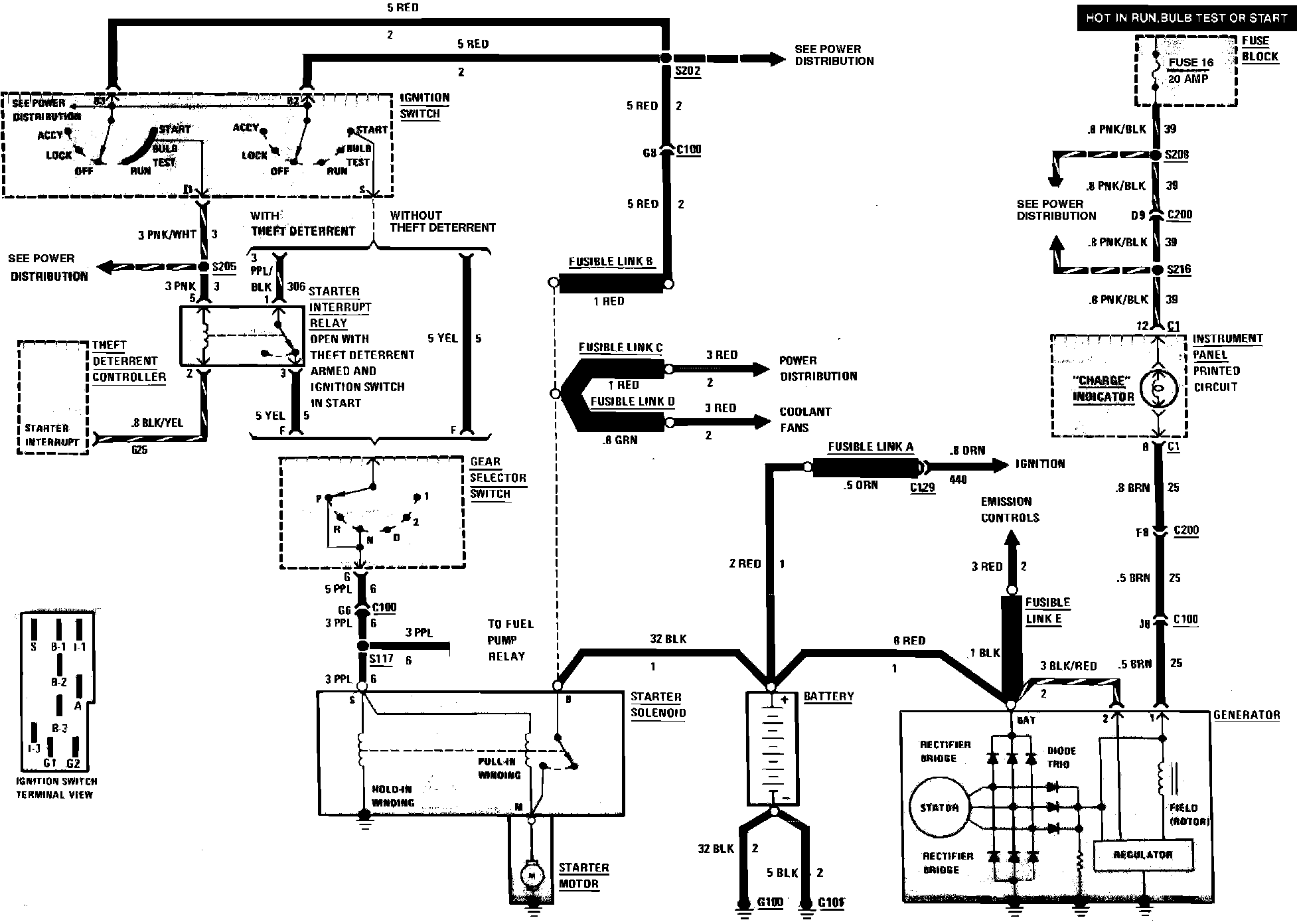

Charging System & Starter Wiring Circuit, Electra, Less Energy Reserve:
