Engine Mount: Service and Repair

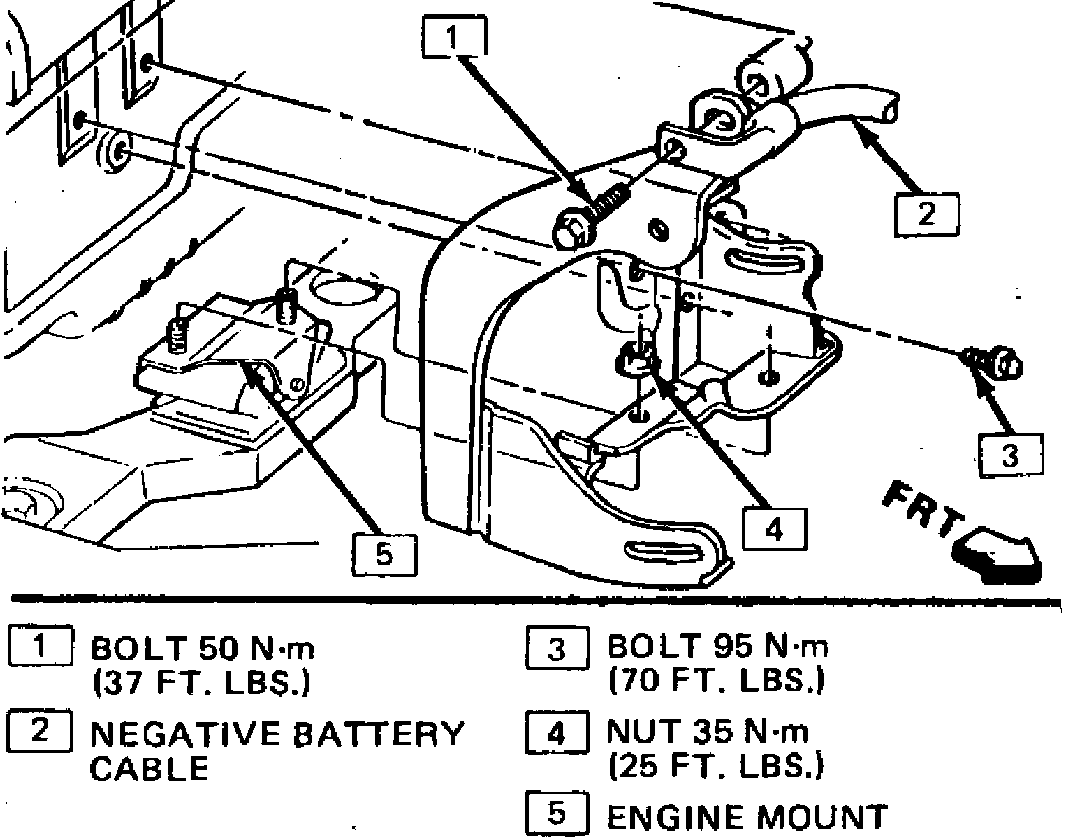

Fig. 1 Engine mount, Right side:

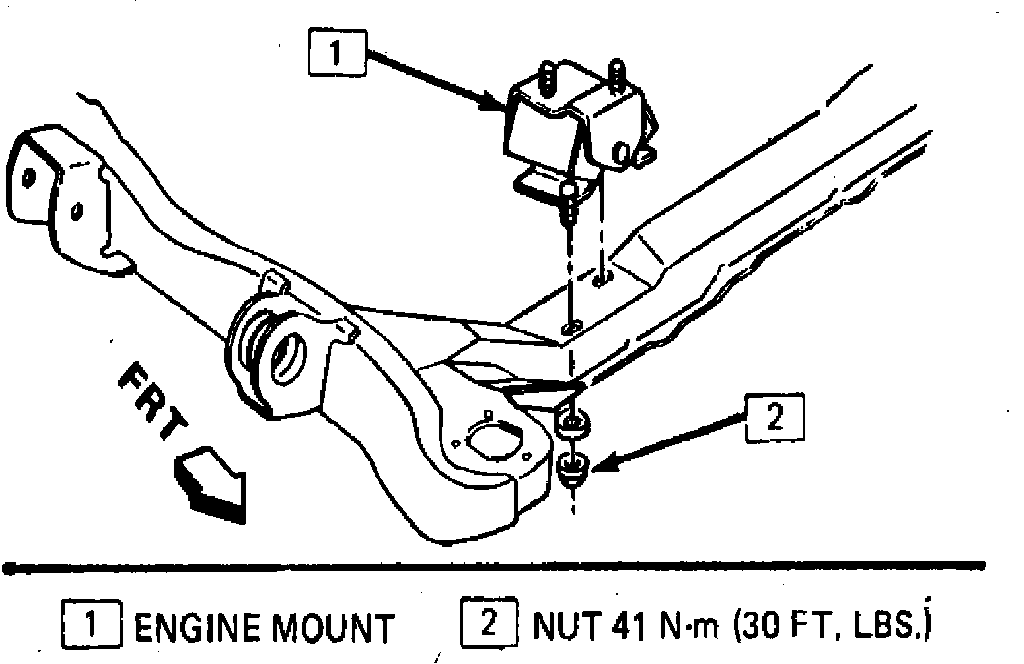

Fig. 2 Engine mount, Left side:

1. Raise and support front of vehicle.
2. Attach suitable engine lifting equipment to engine.
3. Remove mount to engine bracket nuts. Raise engine slightly and remove mount to frame nuts.
4. Remove engine mount.
5. Reverse procedure to install.
