Electronic/Powertrain Control Module (ECM/PCM)
Electronic/Powertrain Control Module (ECM/PCM)

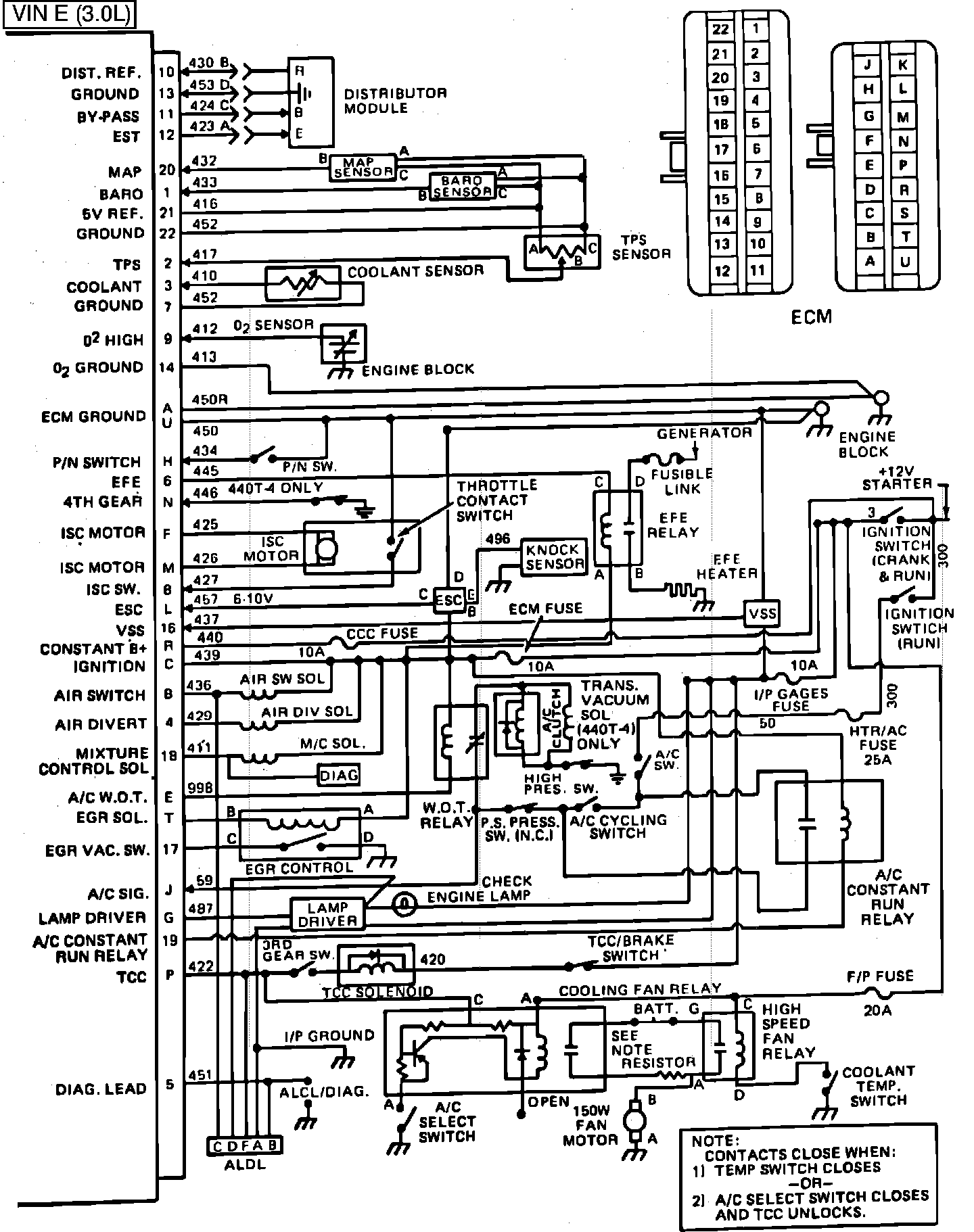

Fig. 023 - ECM Wiring Diagram.:
