Pistons & Rods Assemble

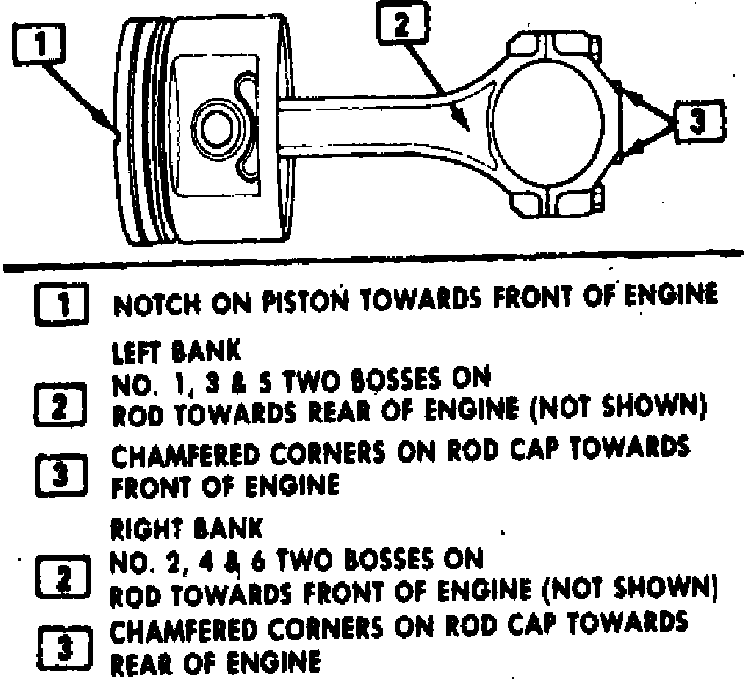

Fig. 16 Piston & rod assembly:

Pistons should be assembled to rods as shown in Fig. 16. After piston and rod installation, measure connecting rod side clearance. Side clearance should be .003-.015 inch.
