Buick
>>
1985
>>
Electra V6-231 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

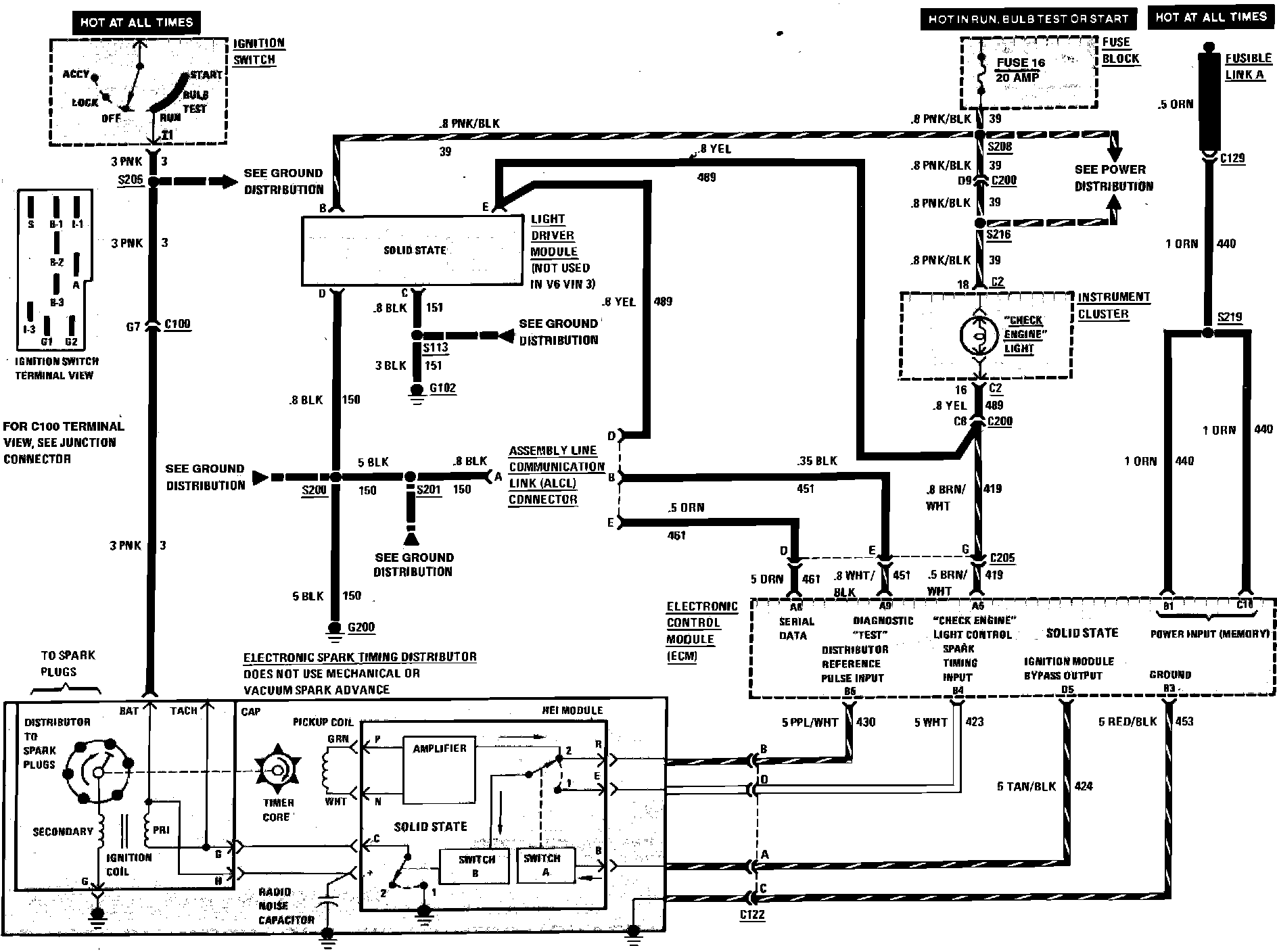

Multiport Fuel Injection (Check Engine Light & Ignition) Wiring Circuit, Electra:
