DTC 51

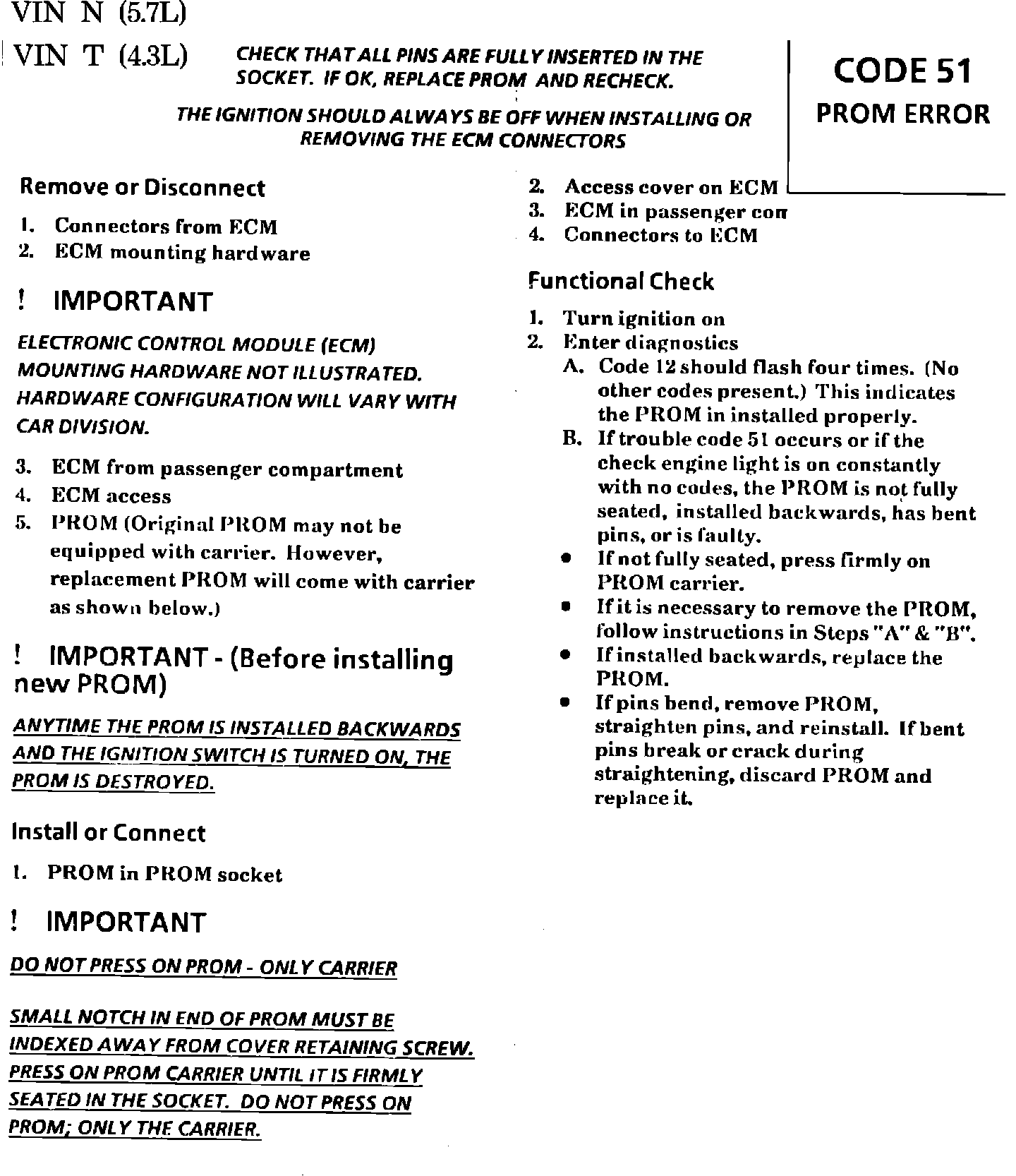

Fig. 061 - Chart For Code 51 Prom Error.:

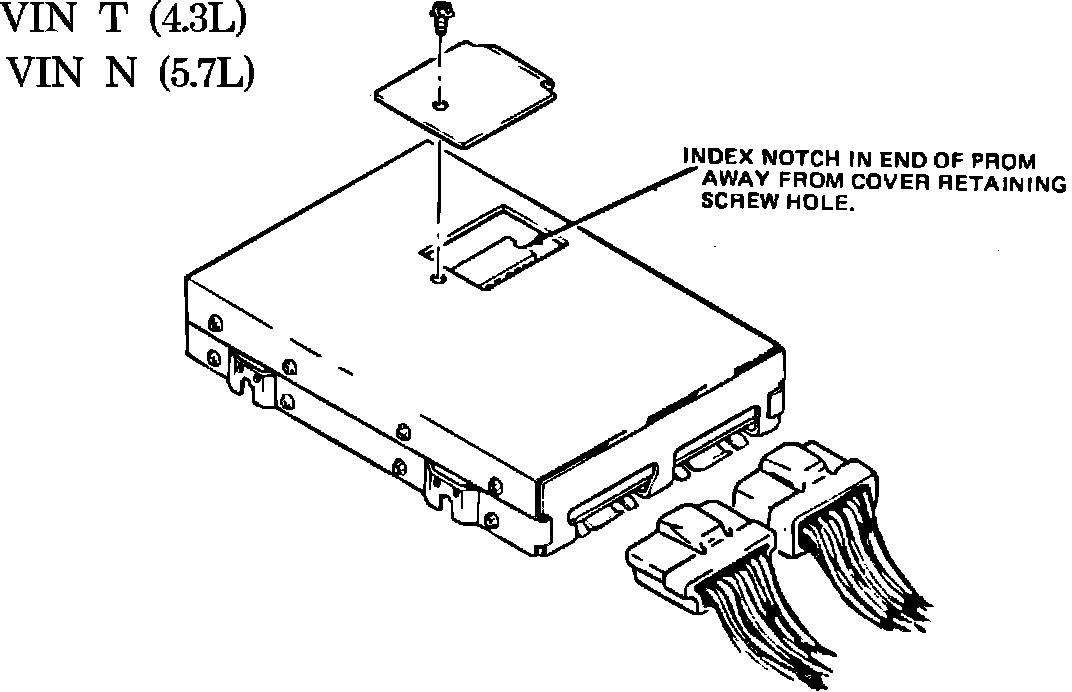

Fig. 062 - ECM Prom Location.:

CODE 51

PROM ERROR

4.3L VIN "T"

5.7L VIN "N"

Code 51 sets if any one of the following occur:
a. Faulty PROM unit
b. PROM unit improperly installed (may not set a code if installed backwards)
c. Some PROM pins not making contact (i.e. bent)
Always check to see that the PROM pins are not bent and are inserted properly into the ECM.
Make certain the PROM is installed in the proper direction as shown.
