Two Door
Two Door

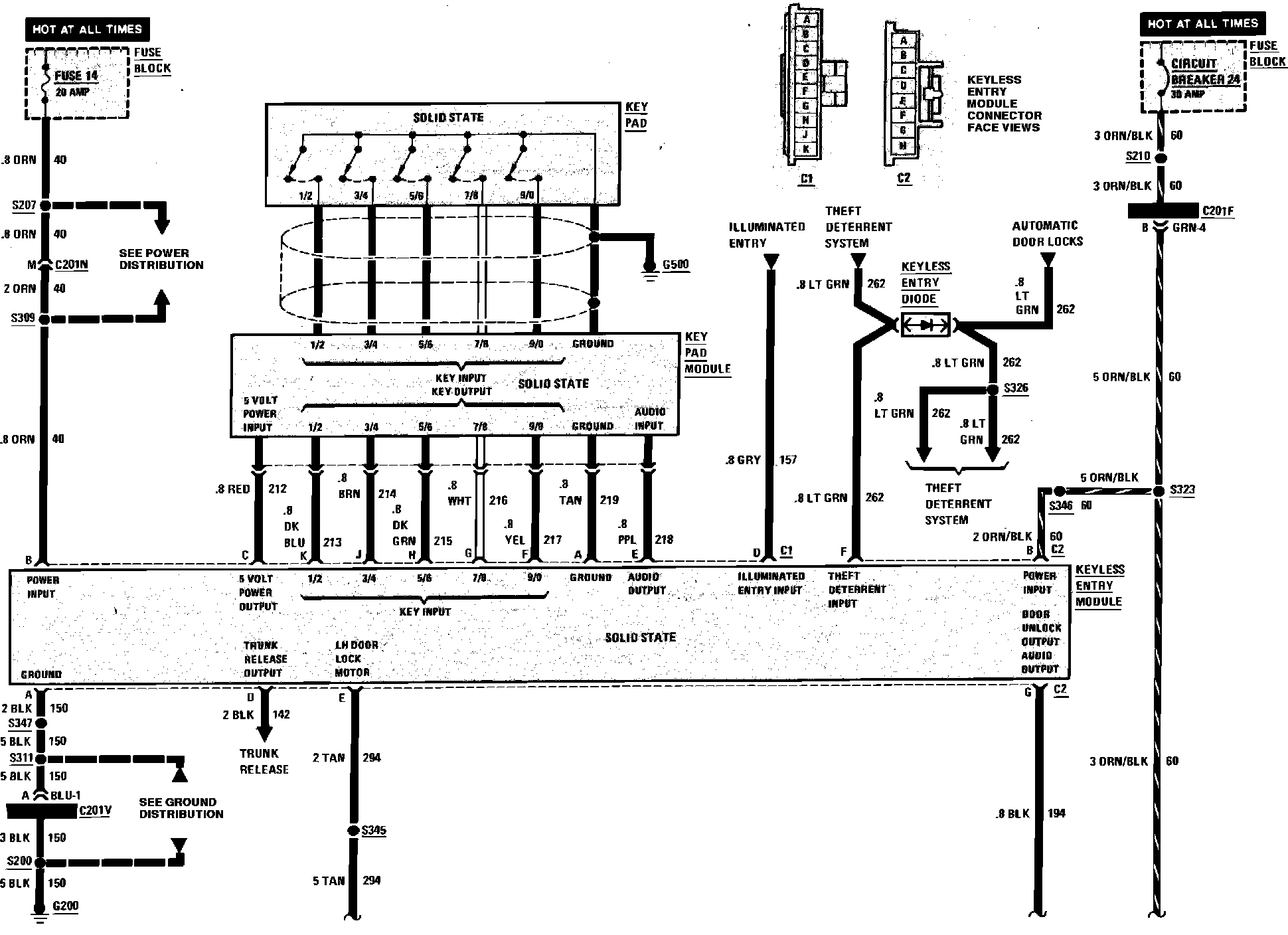

Keyless Entry Wiring Circuit, Electra, 2 Door:
Keyless Entry Wiring Circuit, Electra, 2 Door:
