Home
>>
Buick
>>
1985
>>
Electra V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Electrical Diagrams
>>

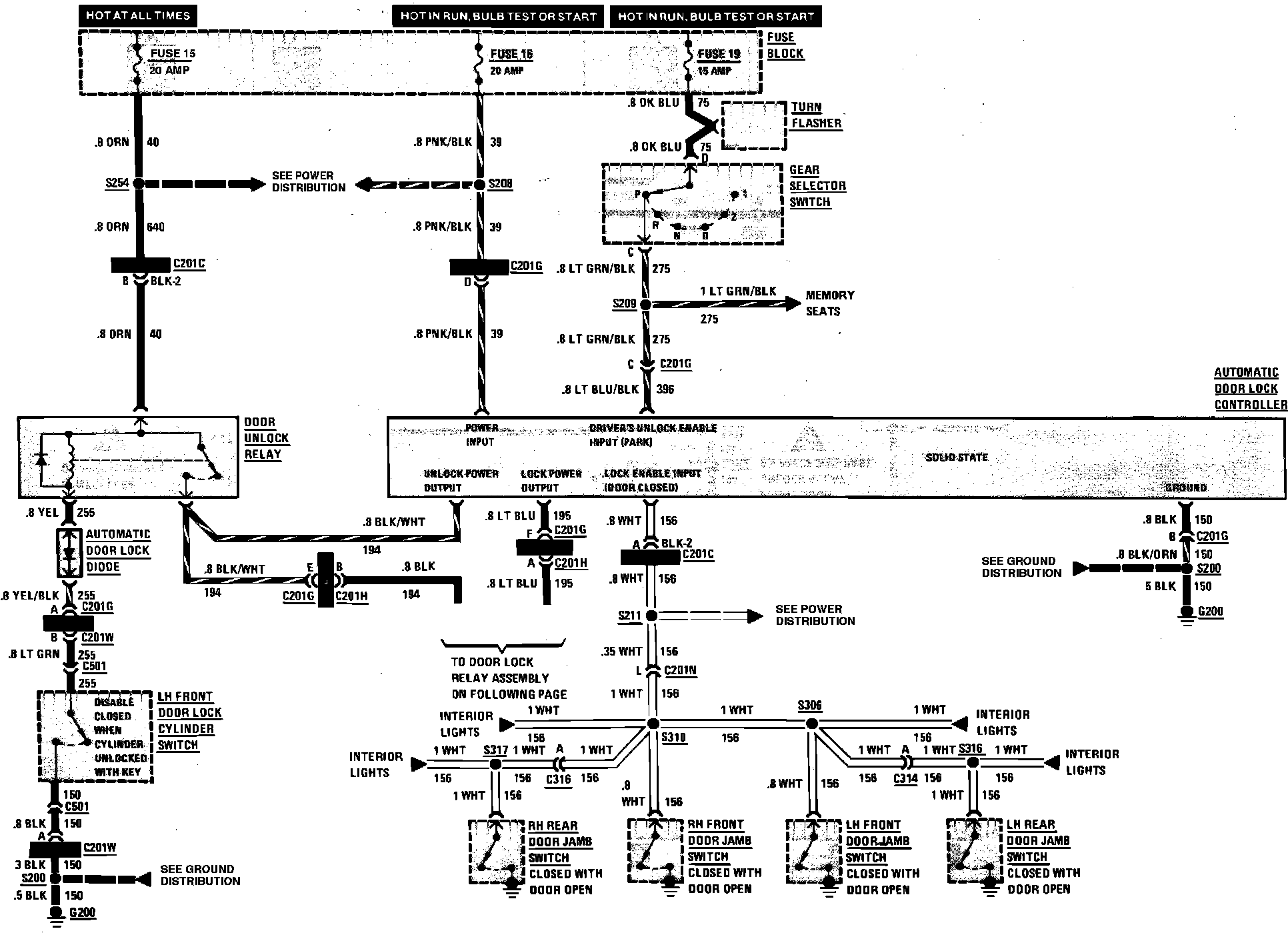

With Automatic Door Locks
With Automatic Door Locks

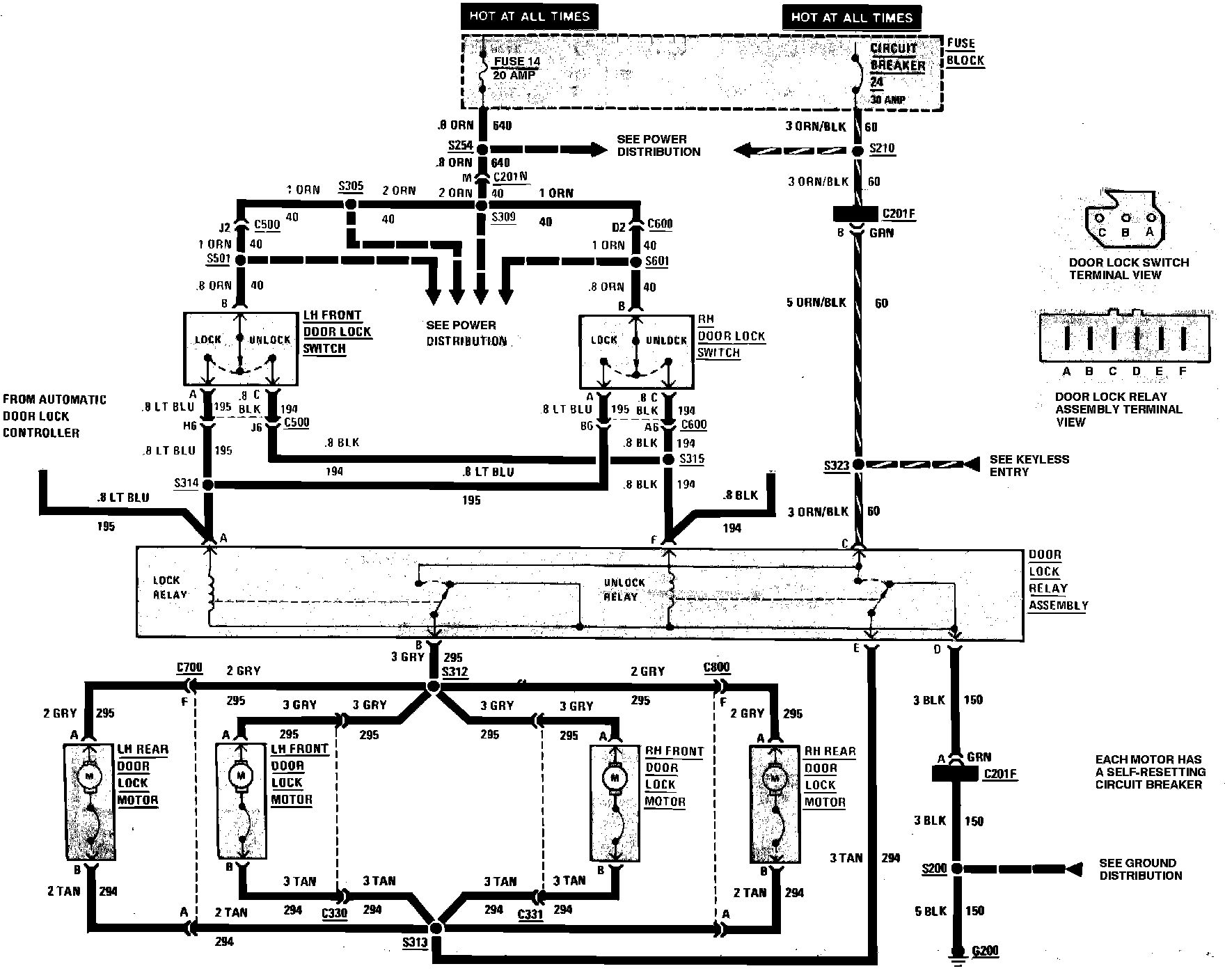

Automatic Door Lock Wiring Circuit, Electra:
Automatic Door Lock Wiring Circuit, Electra:
