Power Seat Wiring Circuit
>>
With Memory, 1 Motor (Part 1 of 2)
With Memory, 1 Motor (Part 1 of 2)

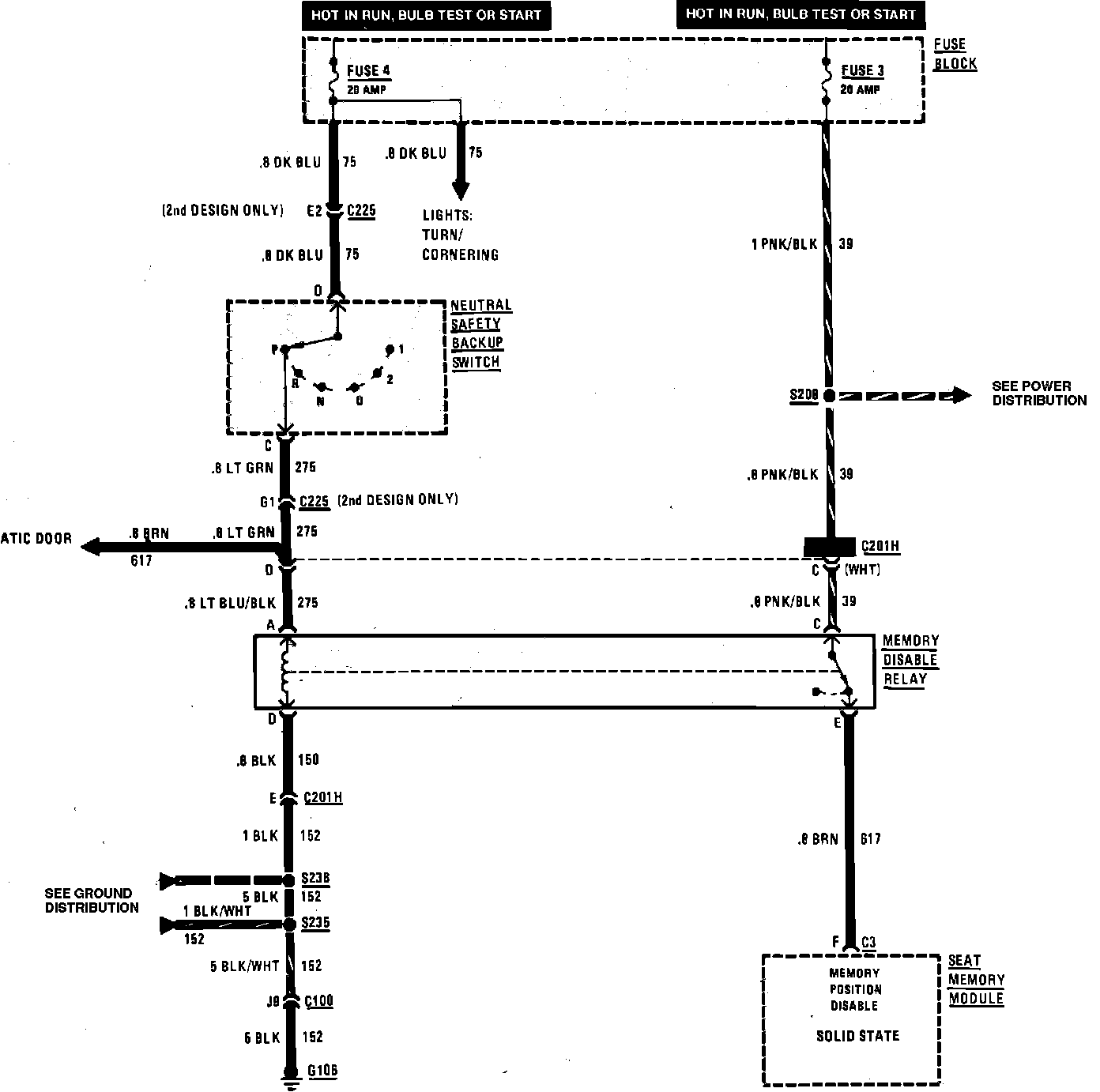

Power Seat Wiring Circuit, Except 98, With Memory, 1 Motor:
