Electrical Diagrams

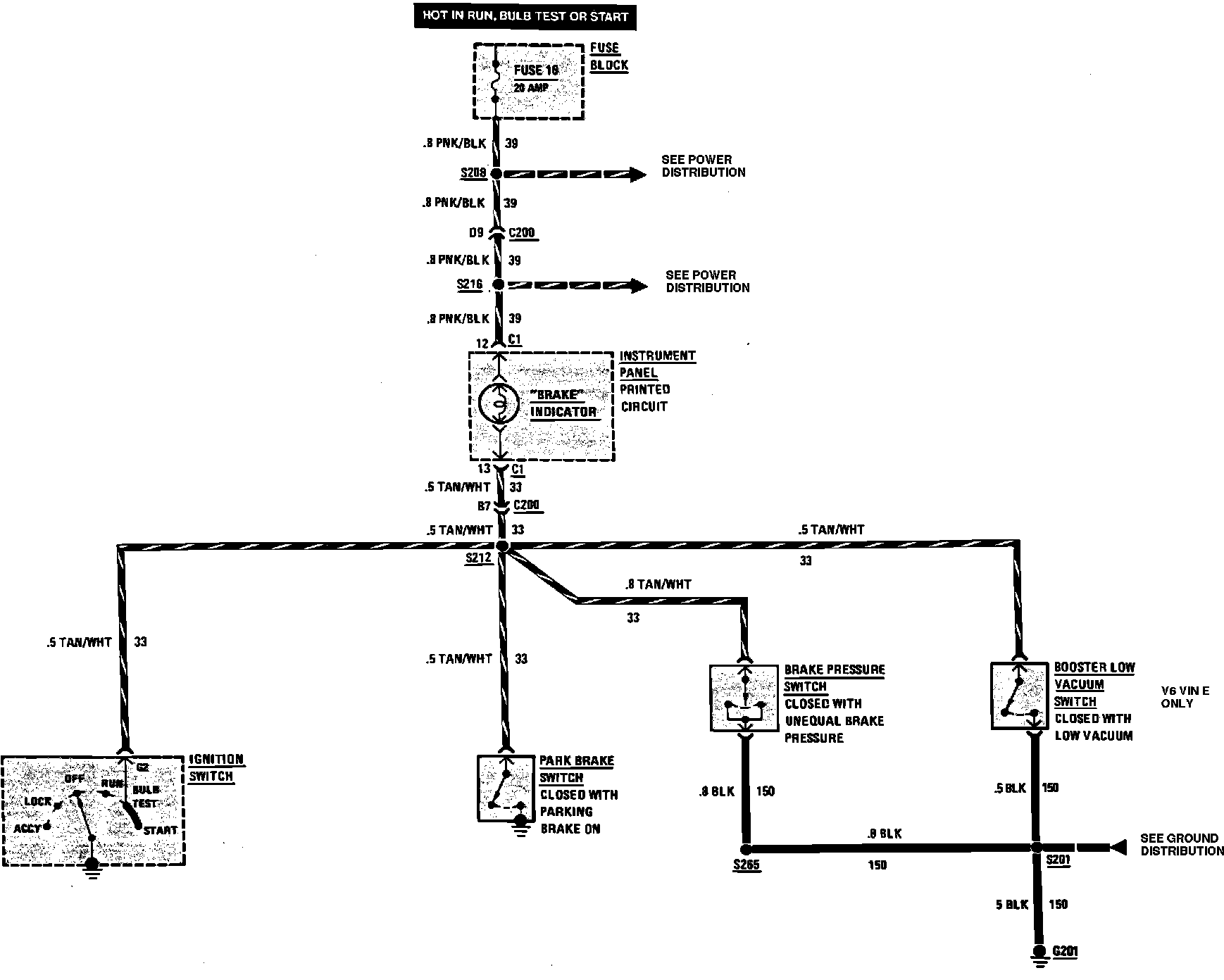

Brake Warning System Wiring Circuit, Electra:



Brake Warning System Wiring Circuit, Electra:
