Front Cigar Lighter

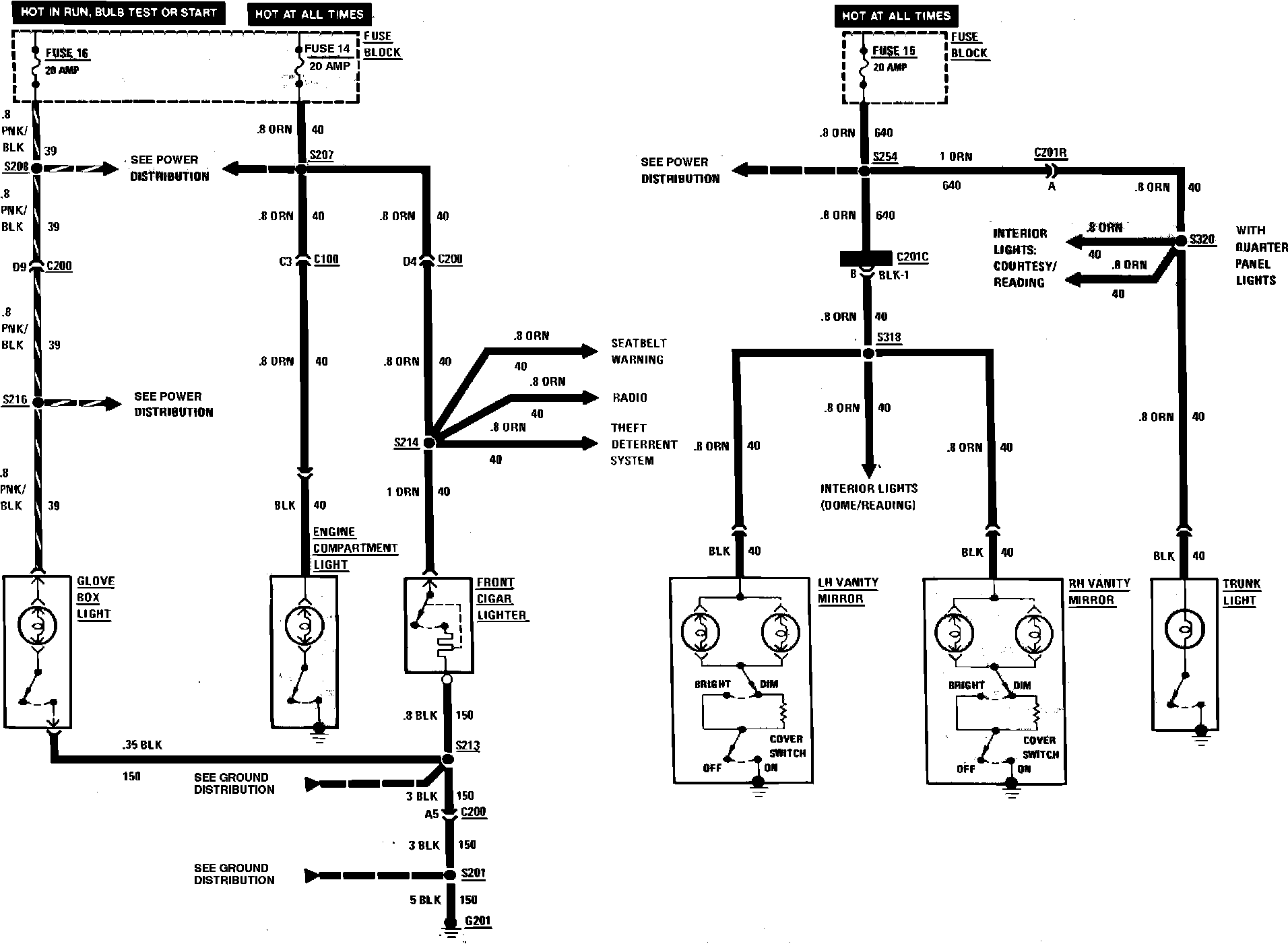

Cigar Lighter (Front), Engine Compartment Lamp, Glove Box Lamp, Trunk & Vanity Lamps Wiring Circuit, Electra:
