Instrument Panel Illumination

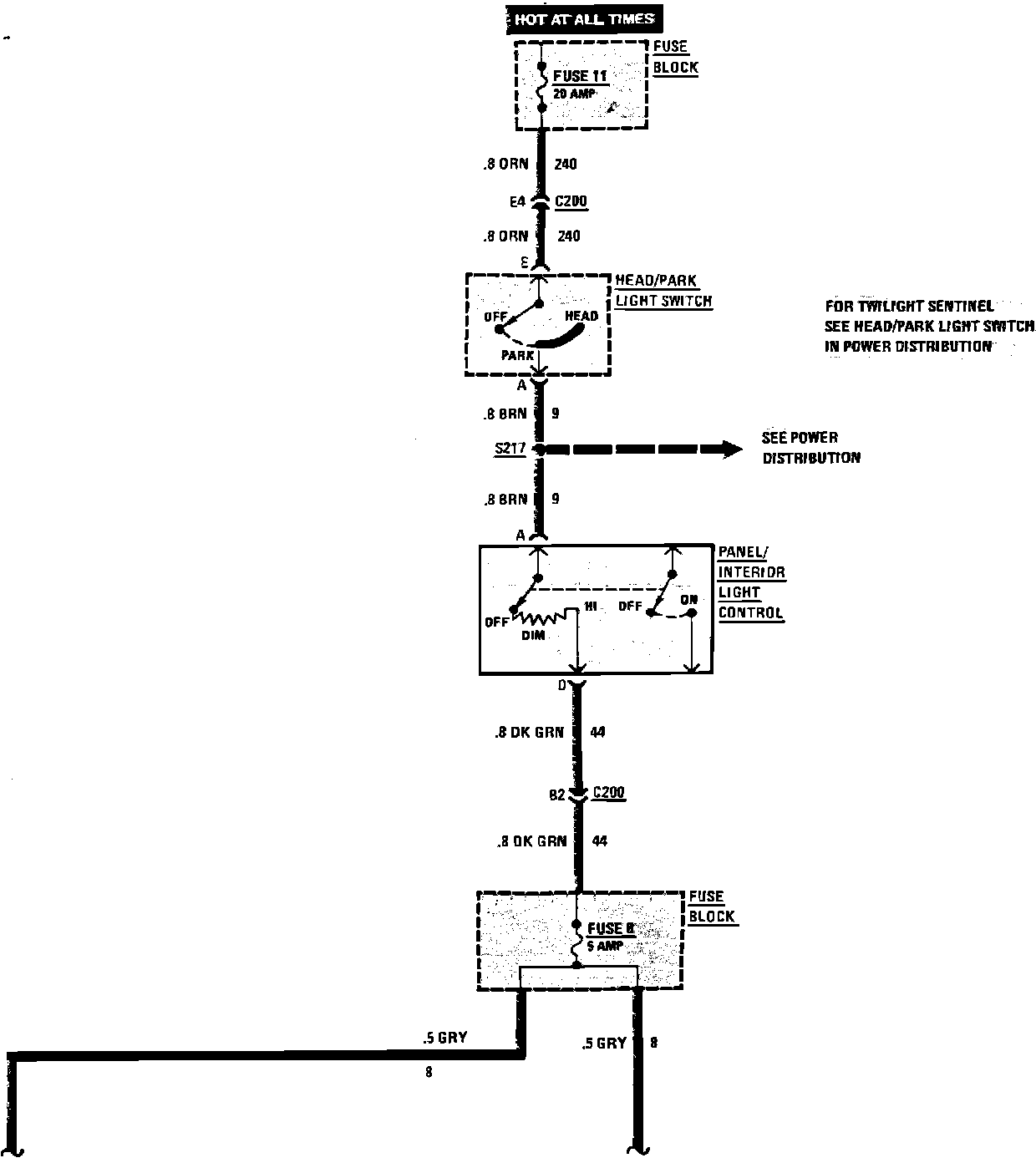

Instrument Panel Illumination Wiring Circuit, Electra:

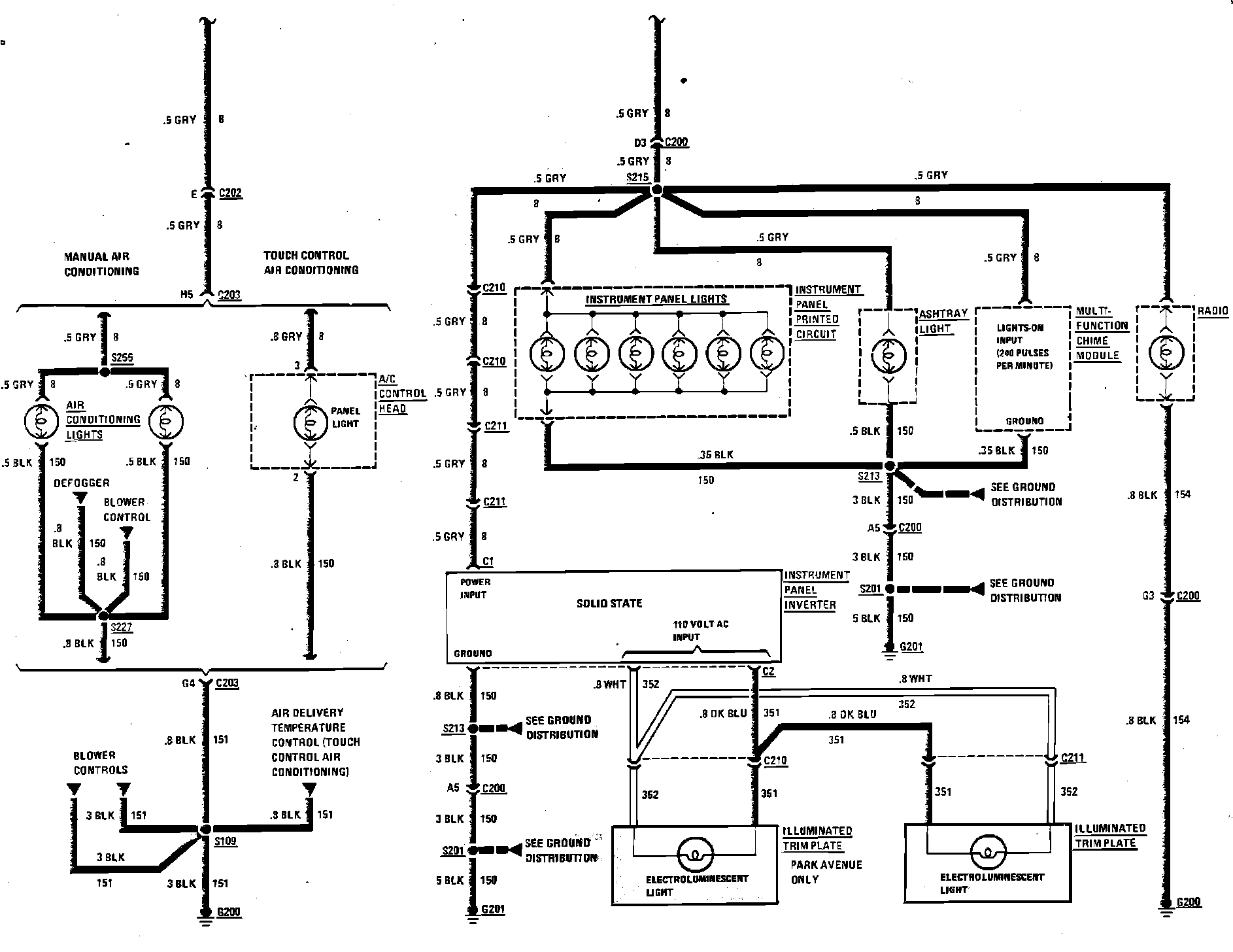

Instrument Panel Illumination Wiring Circuit, Electra:
