Home
>>
Buick
>>
1985
>>
Electra V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Brake Lamp

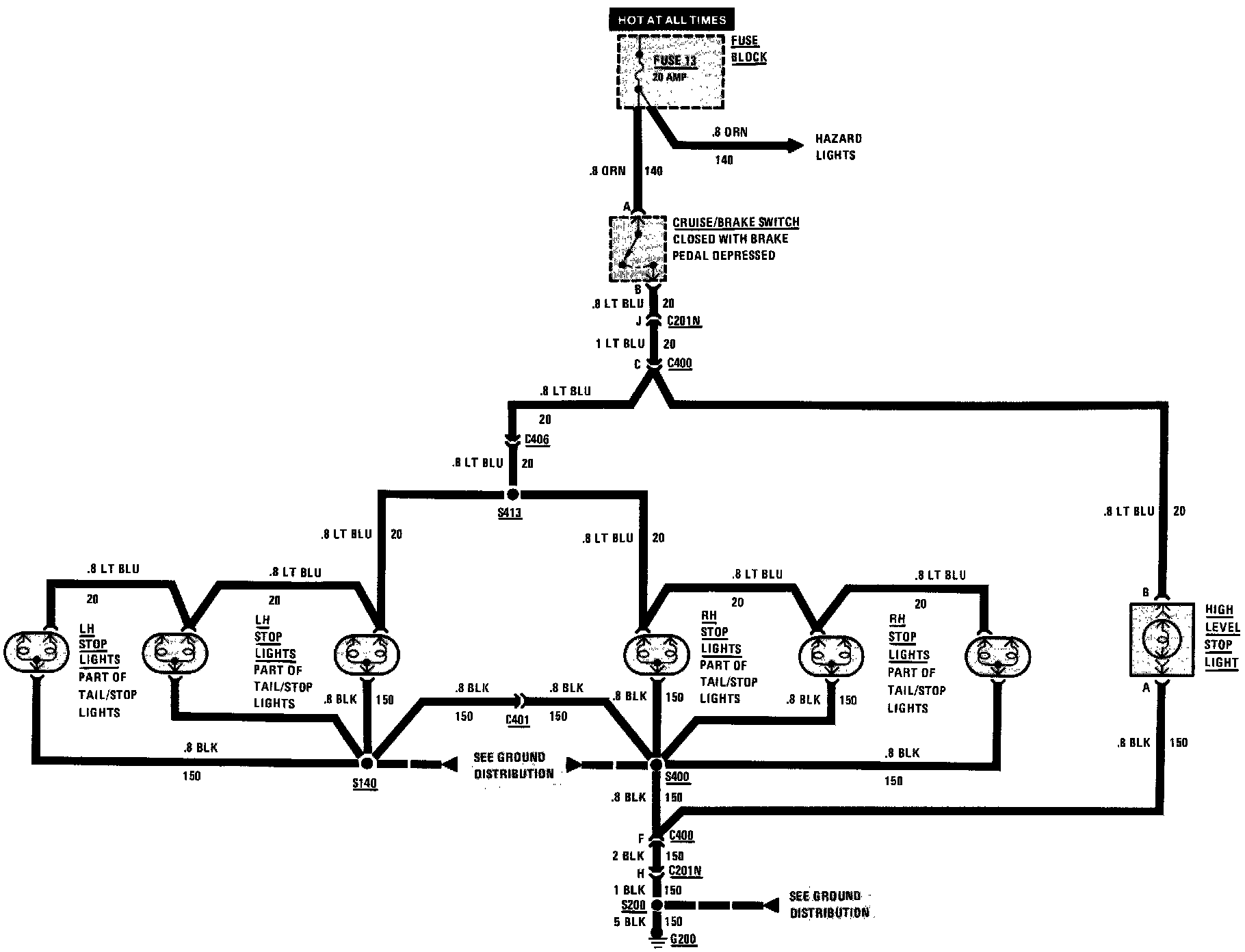

Brake Lamp
Rear, Stop (Without T93 Special):
Rear, Stop (With T93 Special):
