Home >> Buick >> 1985 >> Electra V6-260 4.3L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> System Diagram >> Courtesy & Warning >> 4 Door

4 Door

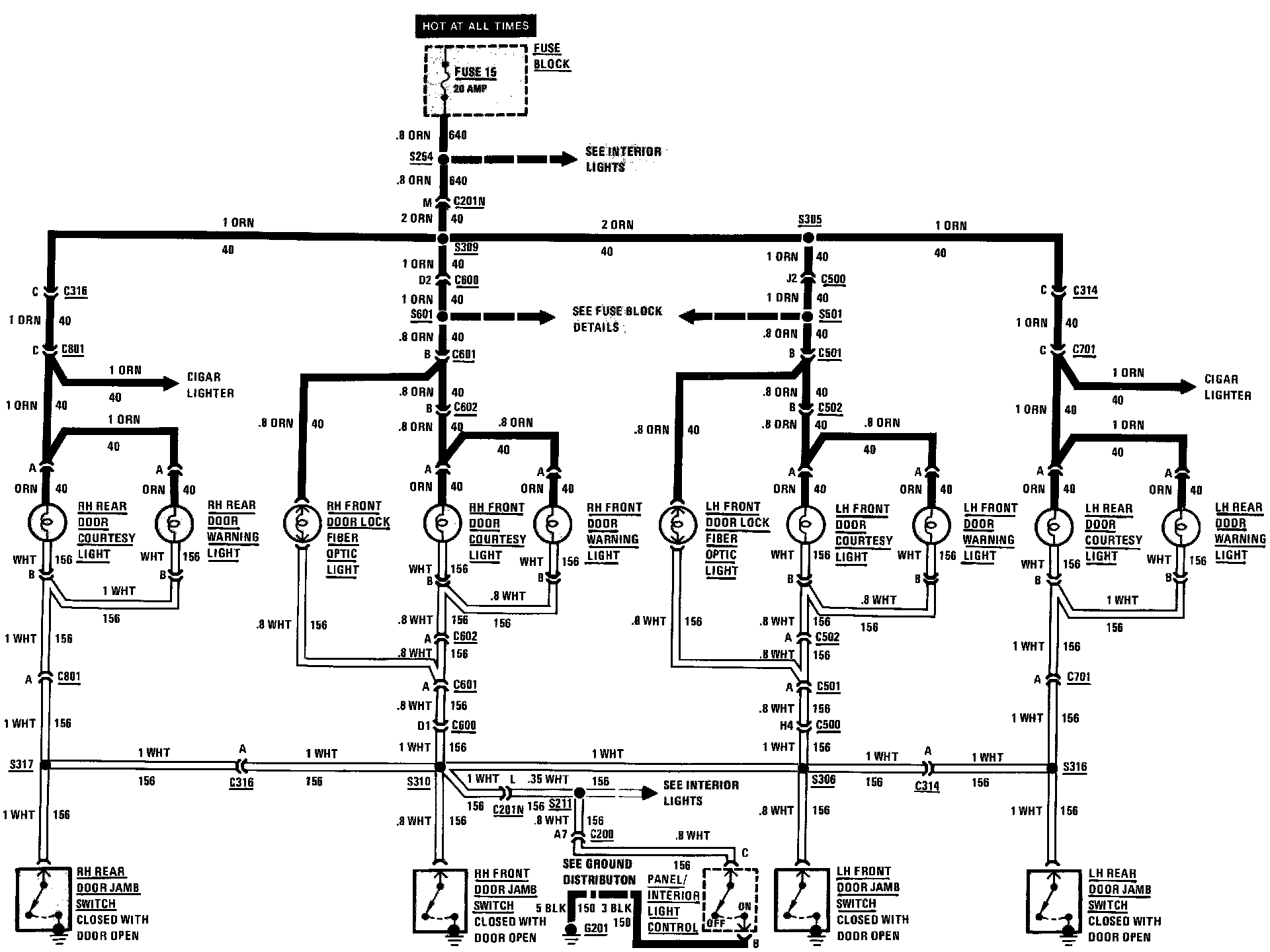

Courtesy/Warning (4 Door):
