Home >> Buick >> 1985 >> Electra V6-260 4.3L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Marker Lamp >> Front Turn/Hazard, Park & Marker Light Wiring Circuit >> Part 1 of 2

Part 1 of 2

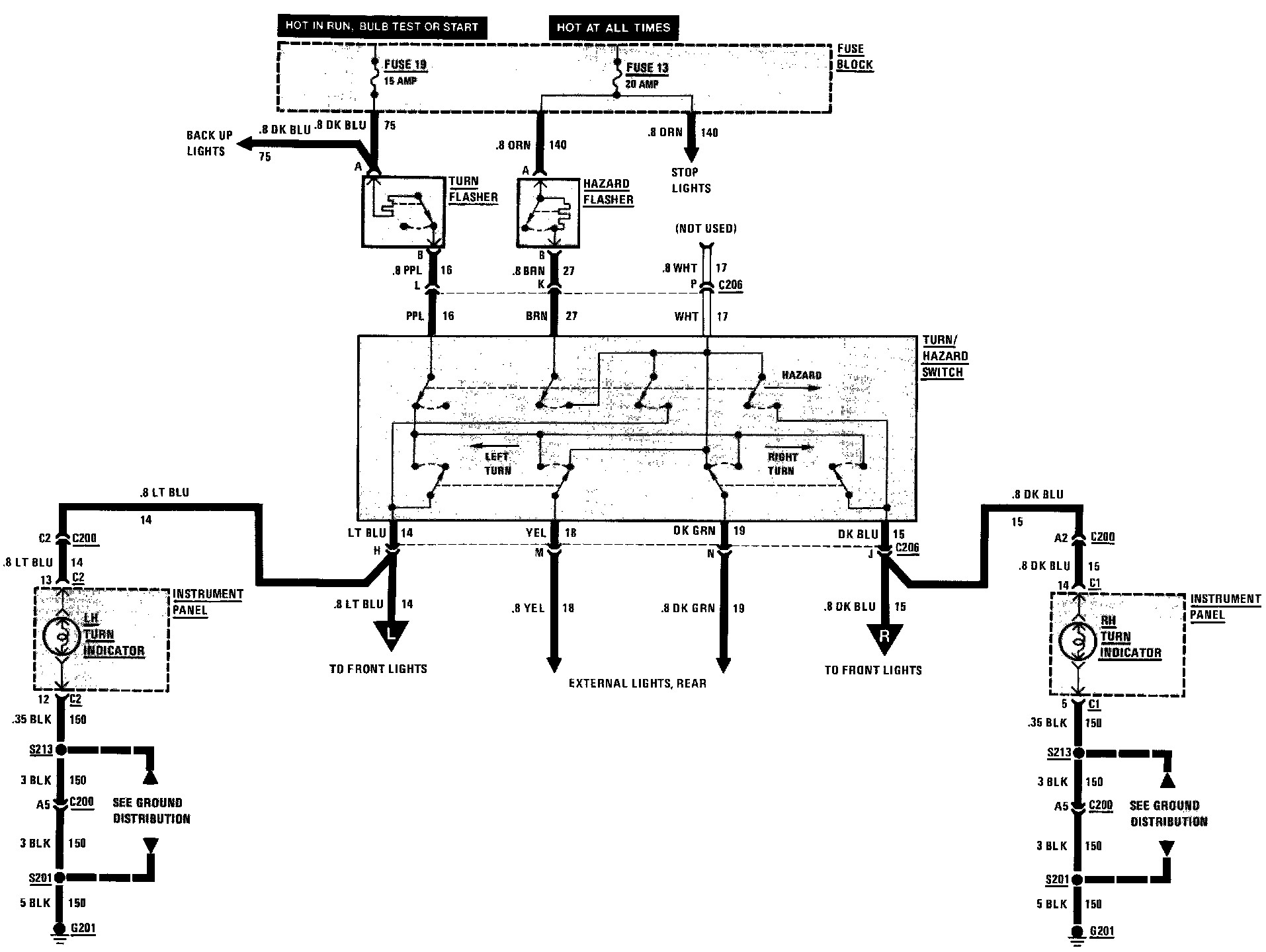

(Part 1) Front, Turn/Hazard/Park/Marker:
