Buick
>>
1985
>>
Electra V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
System Diagram
System Diagram

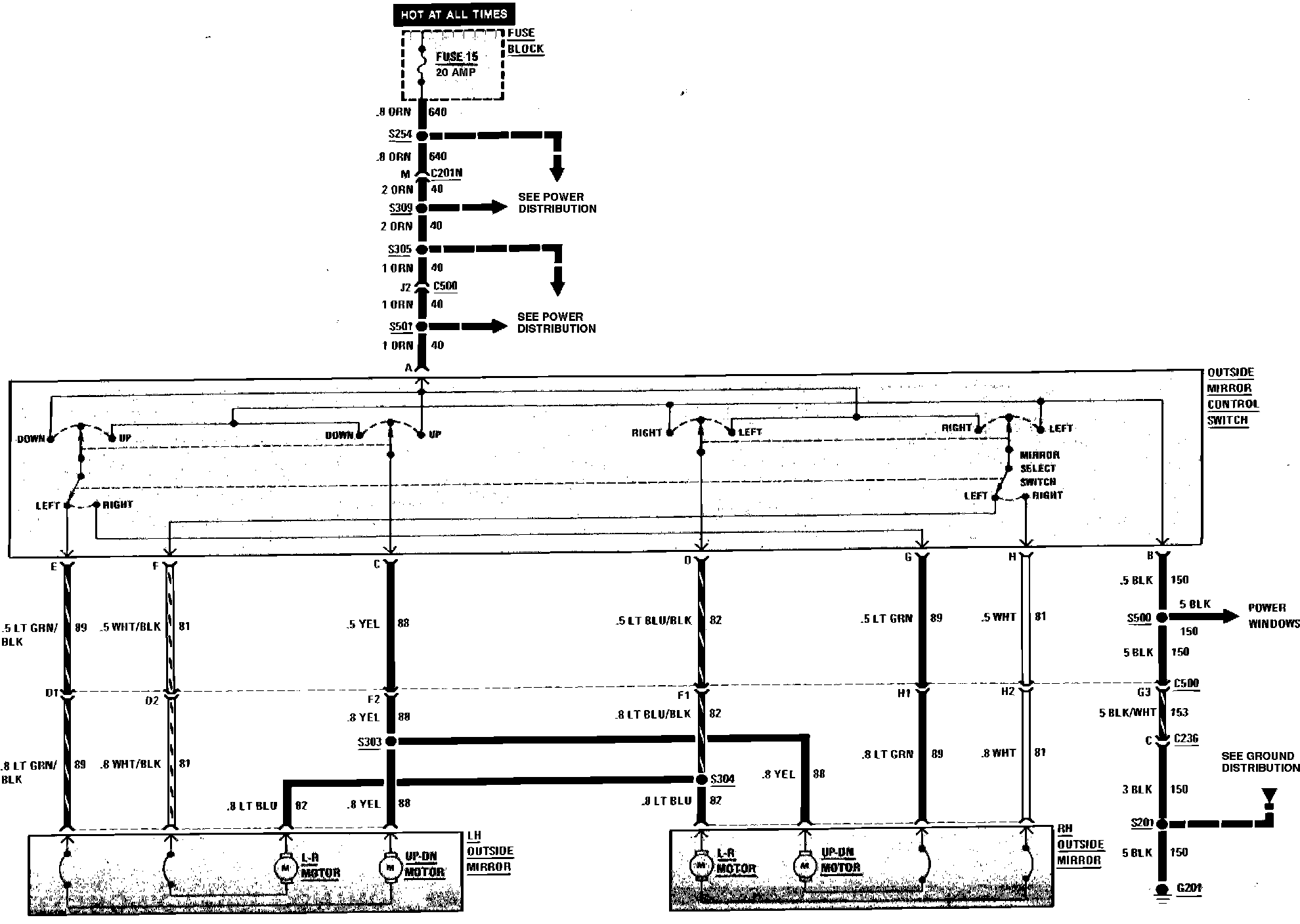

Power Remote Mirror Wiring Circuit, Electra:
