Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Electra V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Delco Bose System
With Delco Bose System

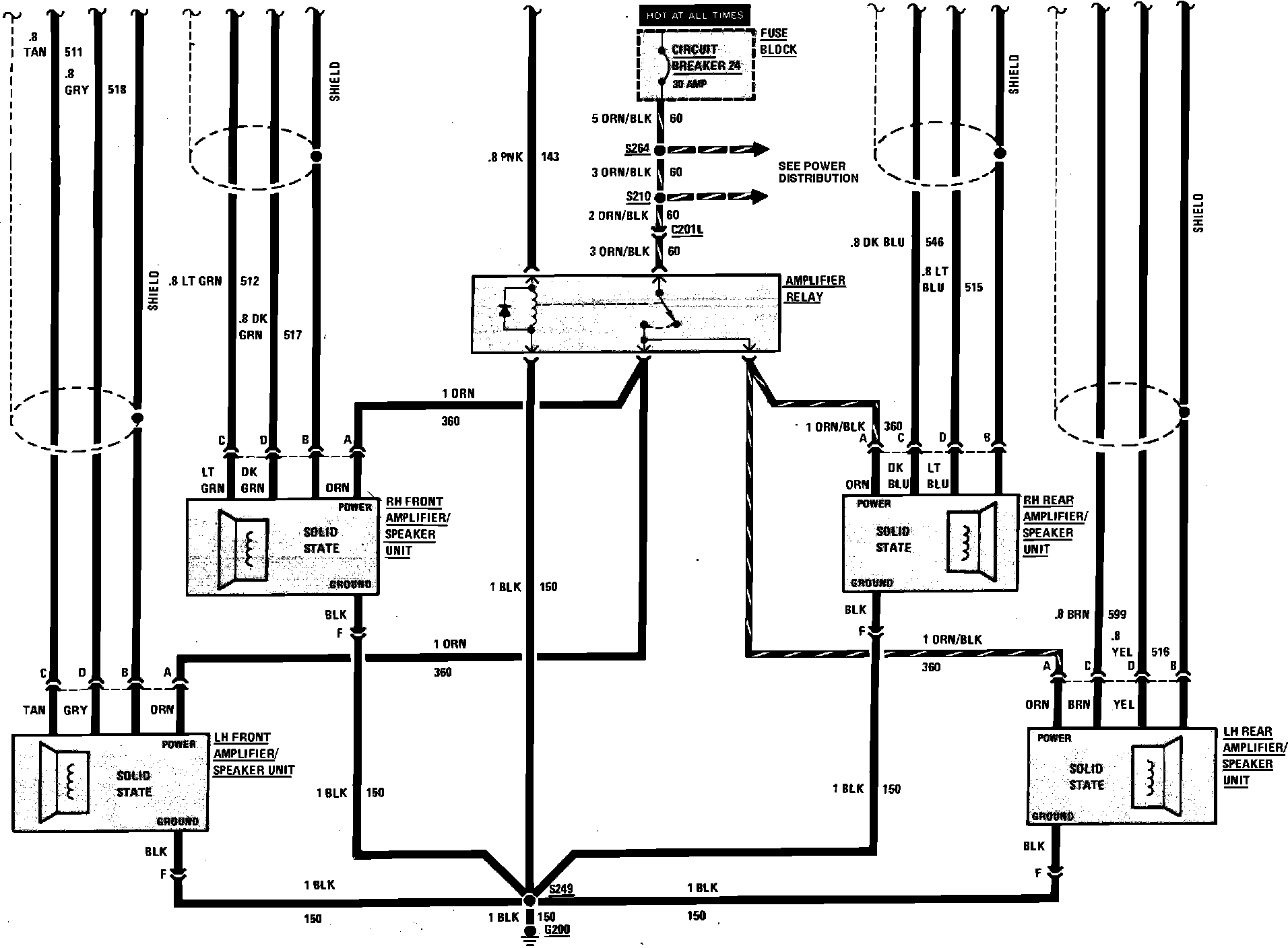

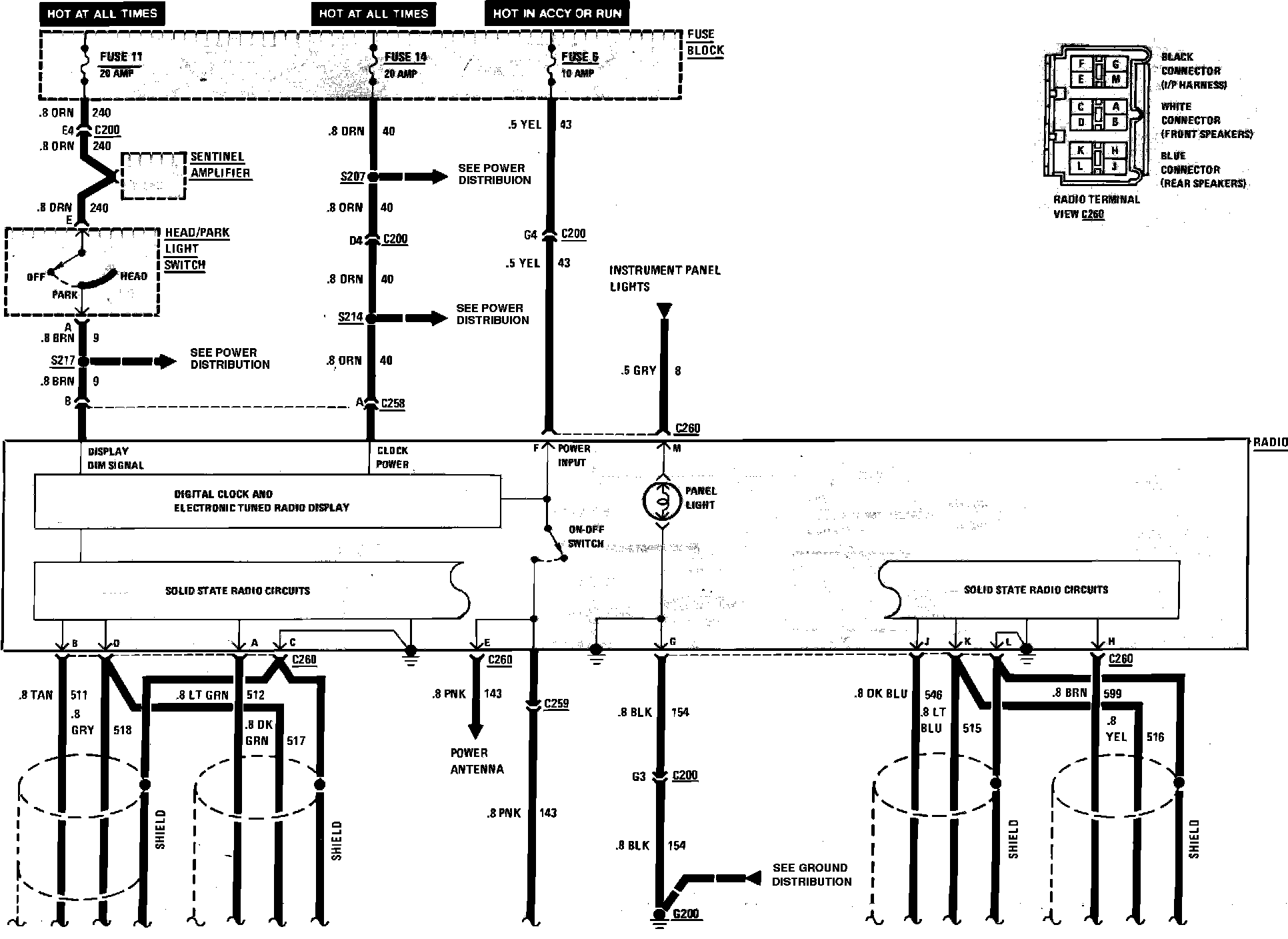

Radio Wiring Circuit, Electra With Delco Bose:
Radio Wiring Circuit, Electra With Delco Bose:
