Home
>>
Buick
>>
1985
>>
Electra V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Power Seat Wiring Circuit
>>
With Memory, 3 Motors (Part 1 of 2)
With Memory, 3 Motors (Part 1 of 2)

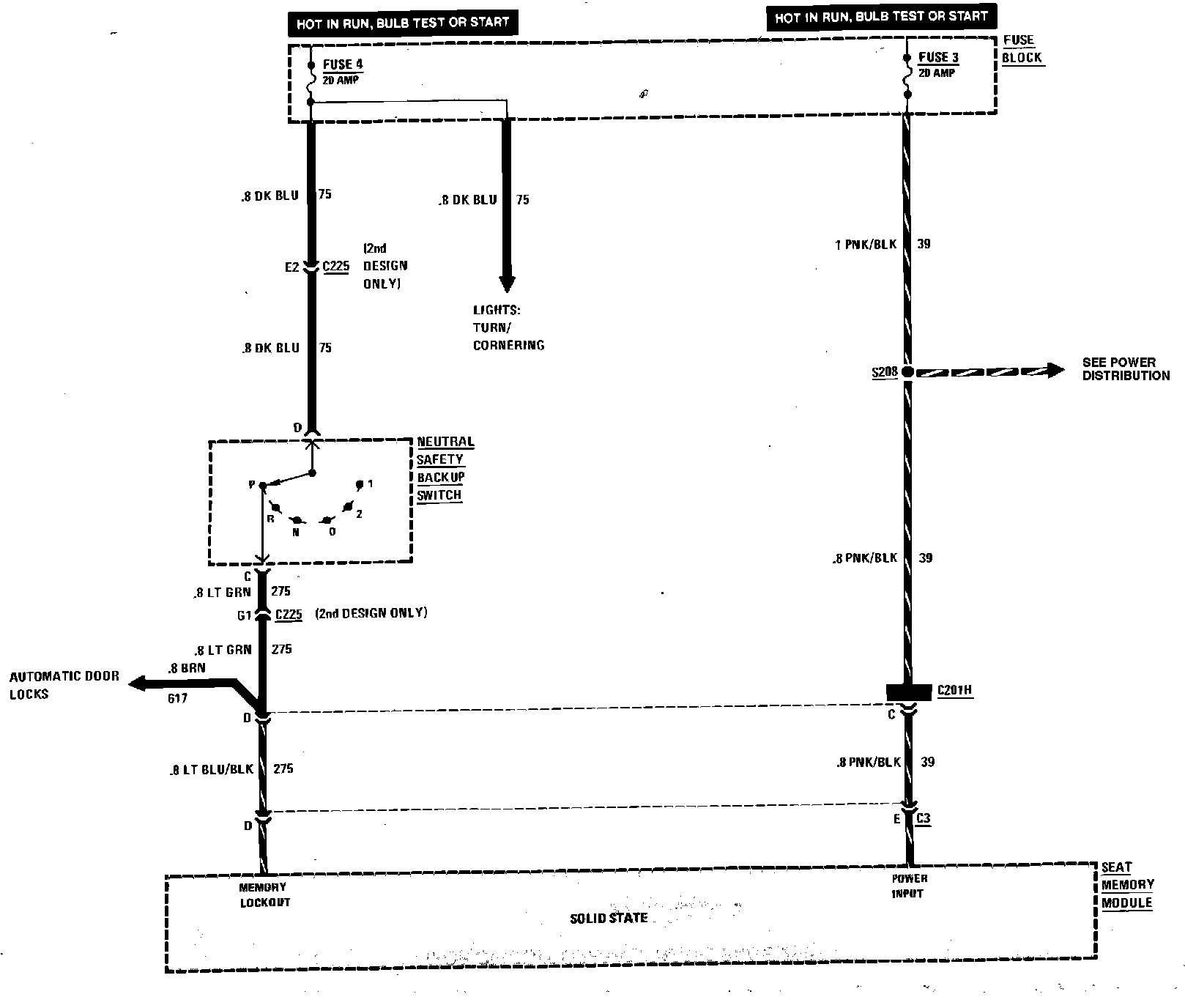

Power Seat Wiring Circuit, Except 98, With Memory, 3 Motors:
