Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Electra V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
Heating and Air Conditioning

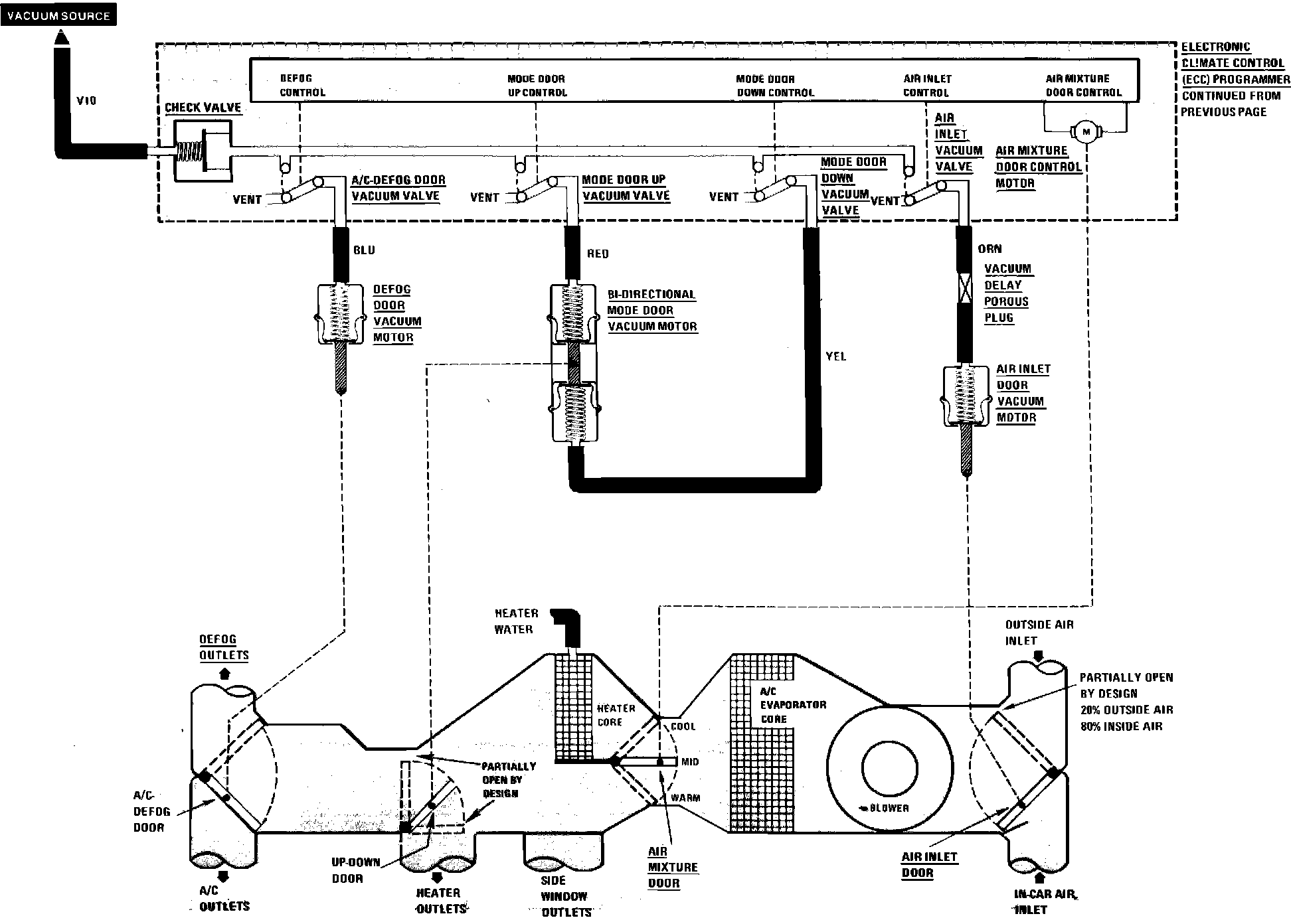

Air Conditioning Vacuum Control Circuit, Except 98:
