Electronic Touch Climate Control System Wiring Diagram
Electronic Touch Climate Control System Wiring Diagram

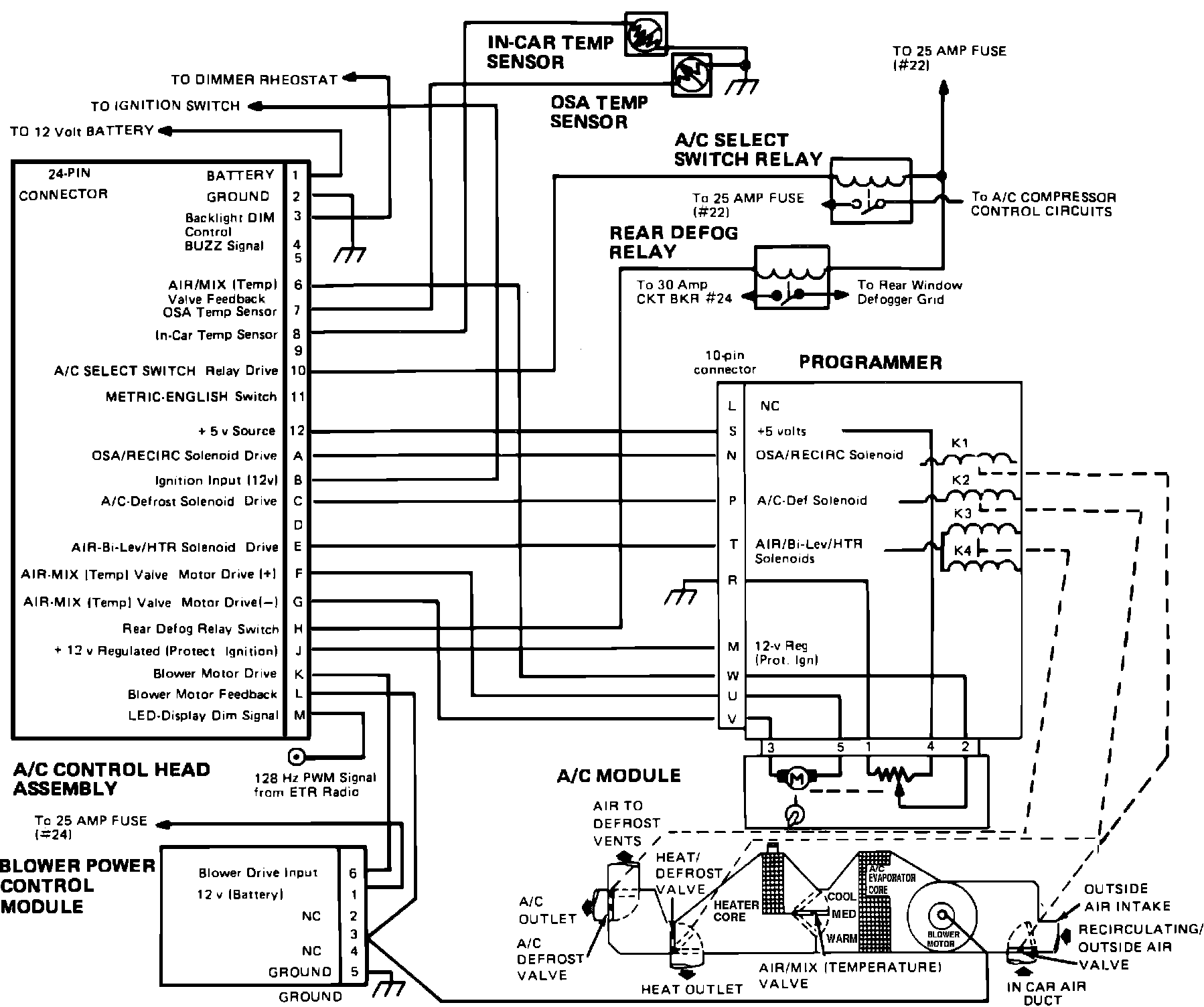

Fig. 8 Electronic Touch Climate Control System wiring diagram.:
