Home >> Buick >> 1985 >> Electra V6-260 4.3L DSL >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> With Electronic Touch Climate Control >> A/C Compressor Doesn't Work or Clutch Won't Cycle.

A/C Compressor Doesn't Work or Clutch Won't Cycle.

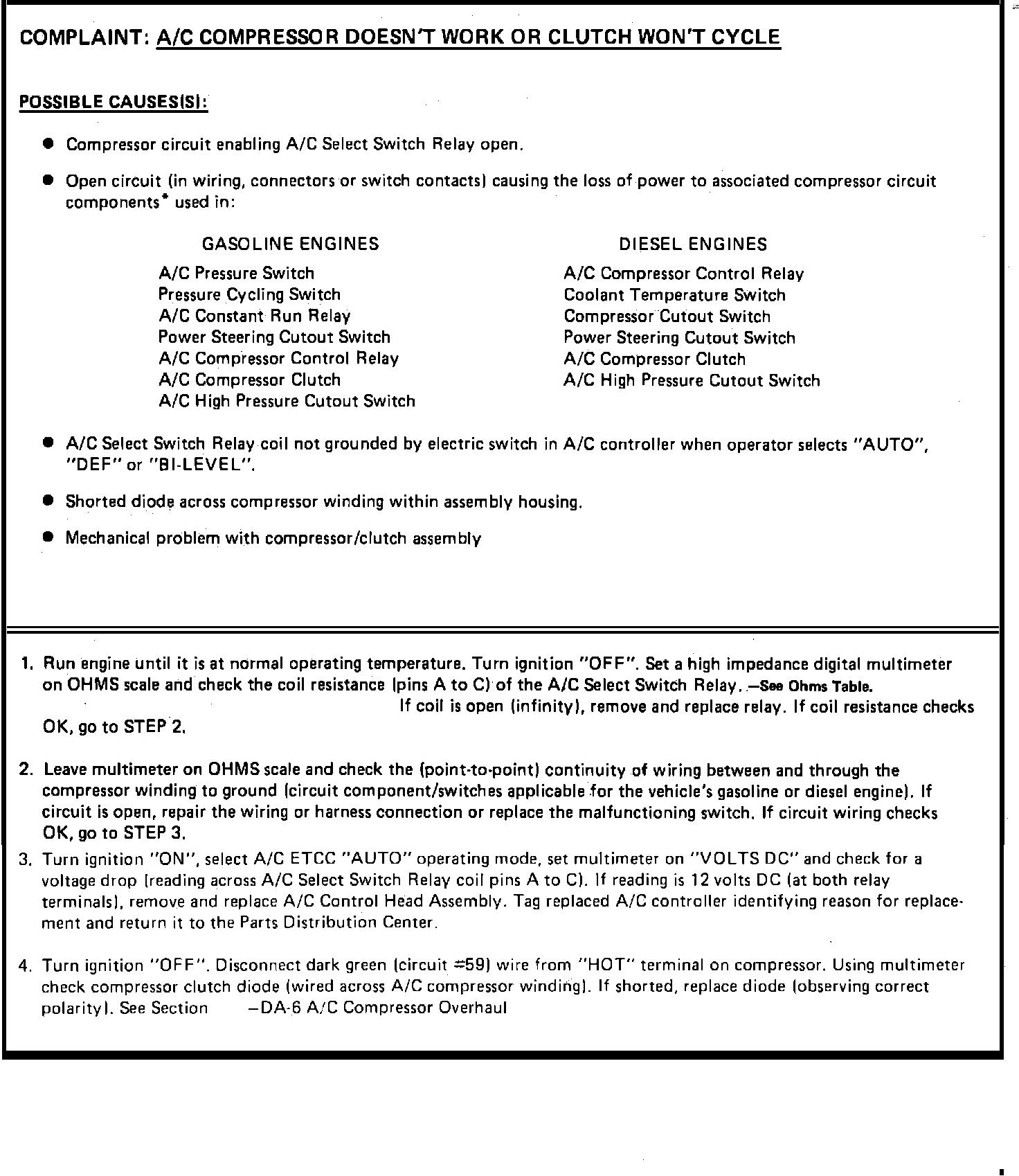

Fig. 7c A/C Compressor Doesn't Work Or Clutch Won't Cycle.:
