Ignition Key, Lights On & Seat Belt Warning

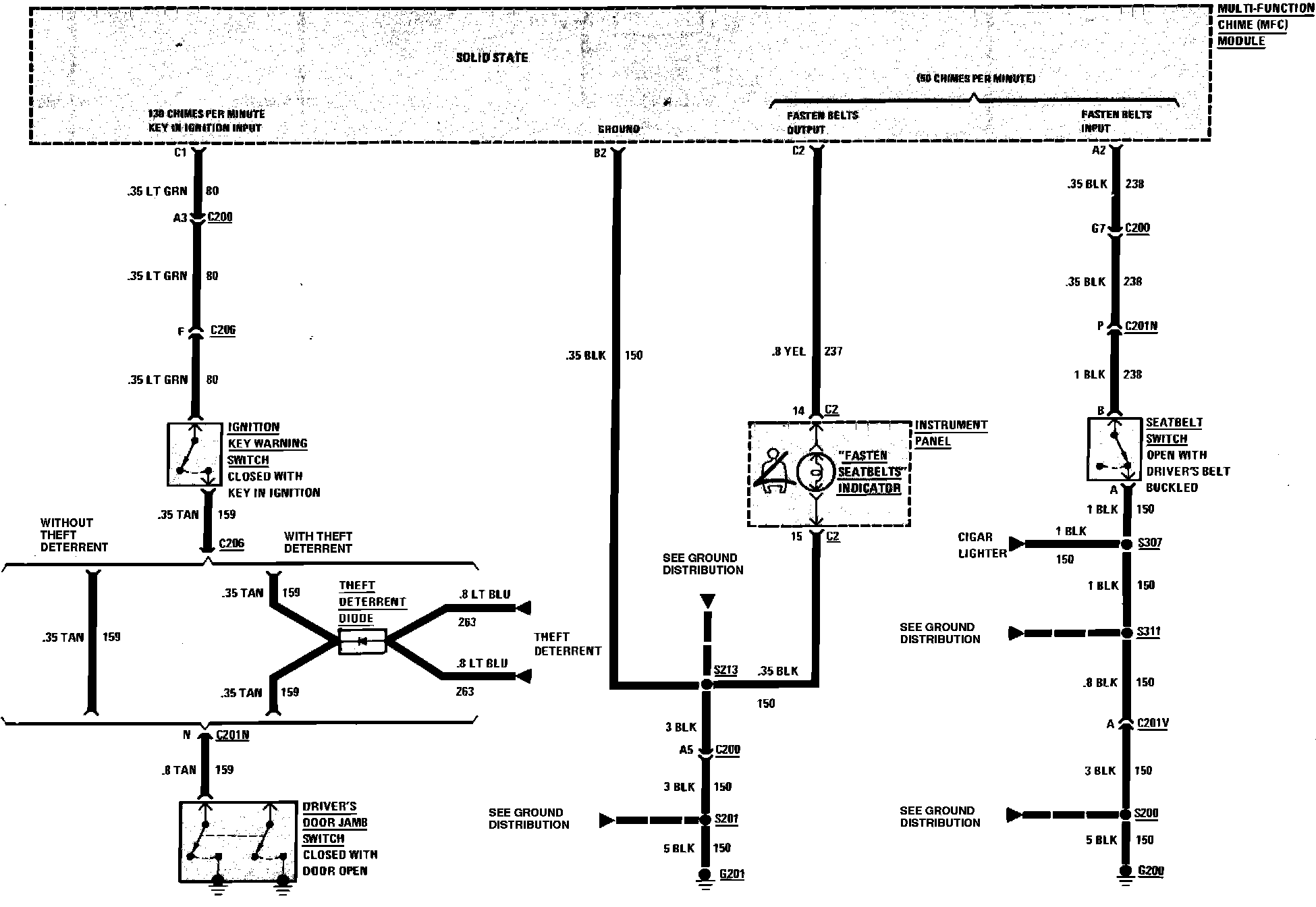

Ignition Key, Lights On & Seatbelt Warning System Wiring Circuit, Electra:



Ignition Key, Lights On & Seatbelt Warning System Wiring Circuit, Electra:
