Home >> Buick >> 1985 >> Electra V6-260 4.3L DSL >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams >> Electrical Diagrams >> Courtesy & Warning >> 2 Door

2 Door

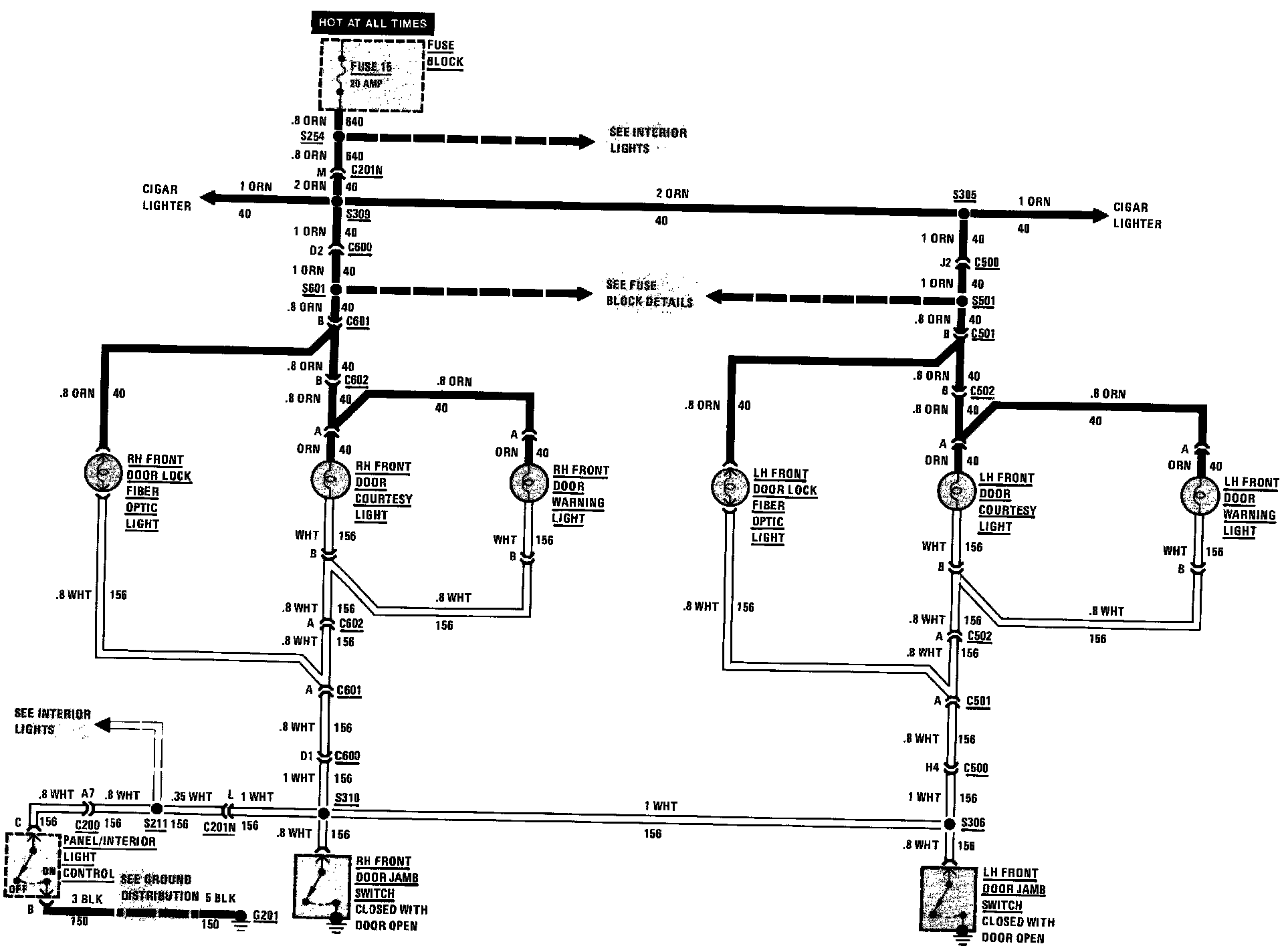

Courtesy/Warning (2 Door):
