Illuminated Entry System
>>
With Keyless Entry
With Keyless Entry

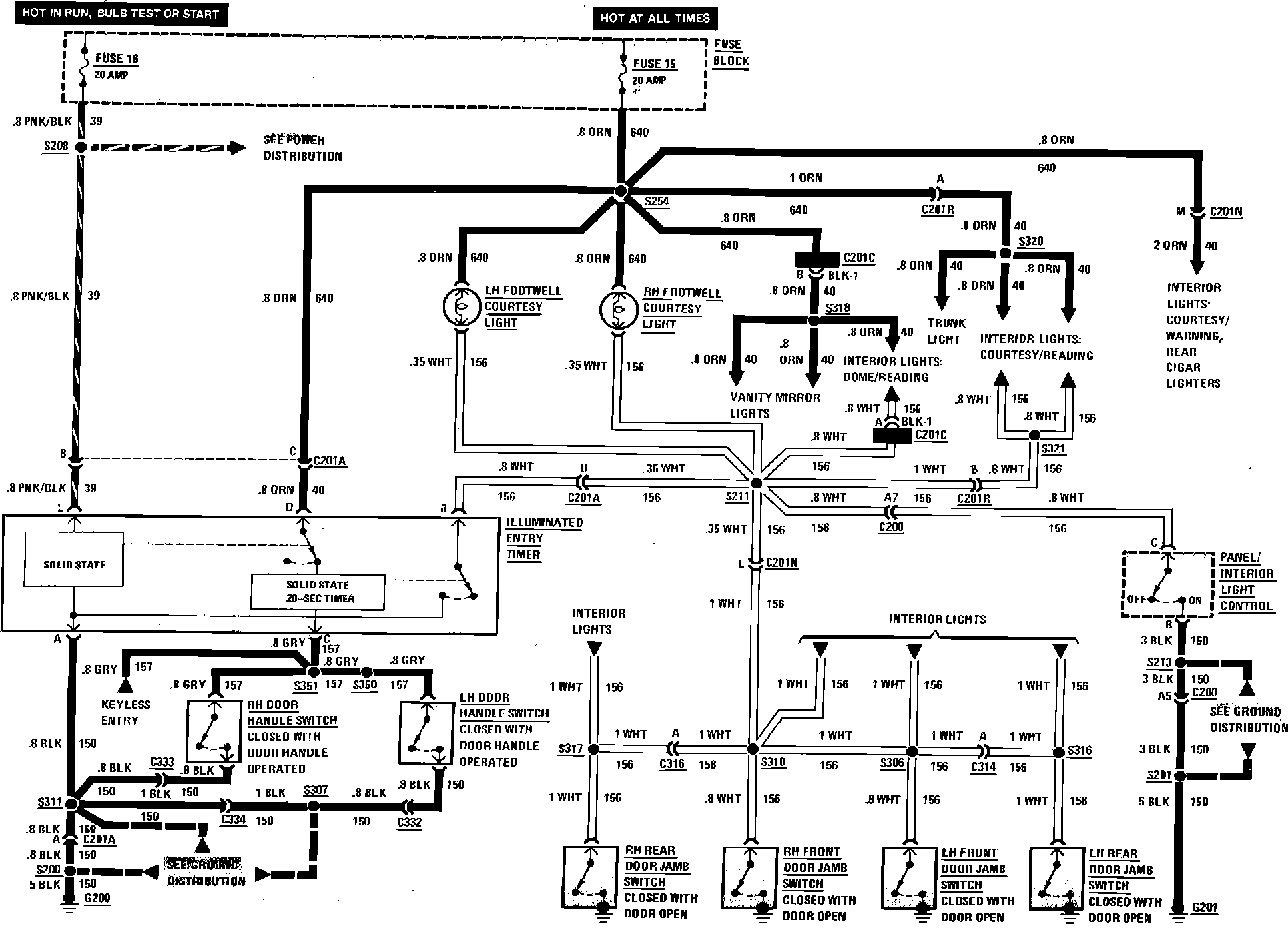

Illuminated Entry Wiring Circuit, With Keyless Entry:
