Headlamp
>>
Diagrams
>>
Electrical Diagrams
>>
With Twilight Sentinel
With Twilight Sentinel

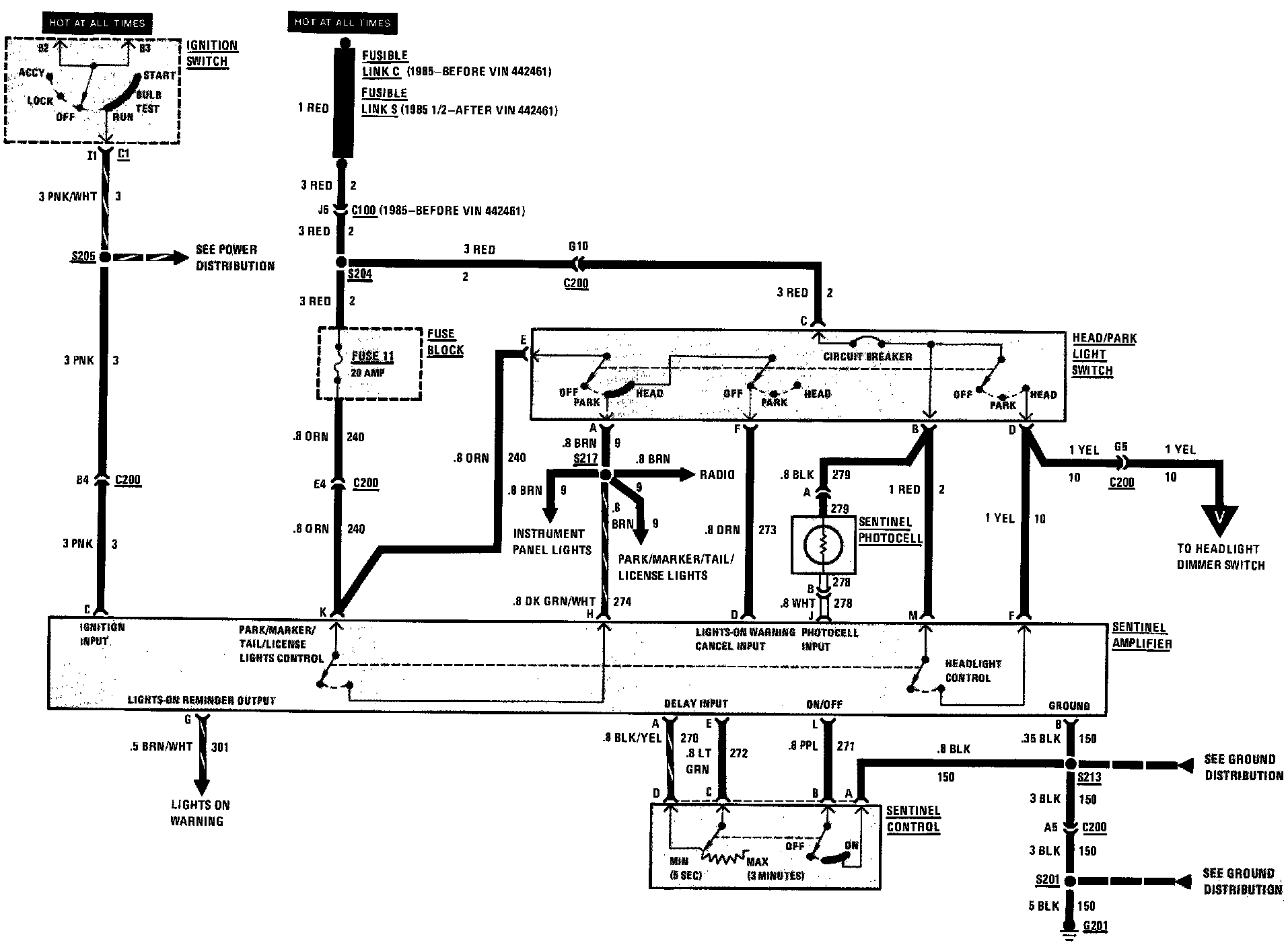

(Part 1) Headlights With Twilight Sentinel:

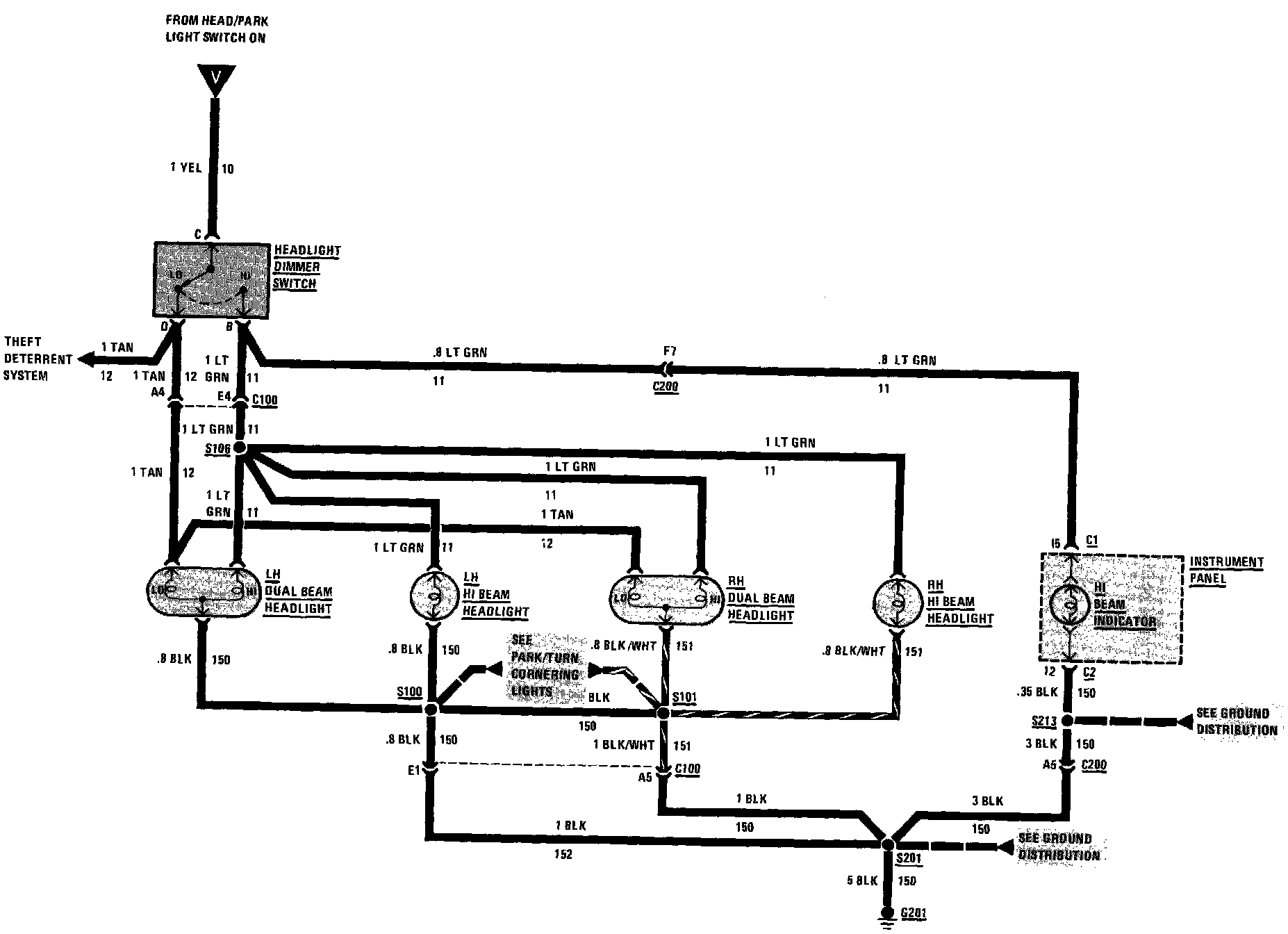

(Part 2) Headlights With Twilight Sentinel:
