Home >> Buick >> 1985 >> Electra V6-260 4.3L DSL >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Diagrams >> Electrical Diagrams >> Rear Hazard, Stop & Turn Lamps >> Less T93 Special >> Part 1 of 2

Part 1 of 2

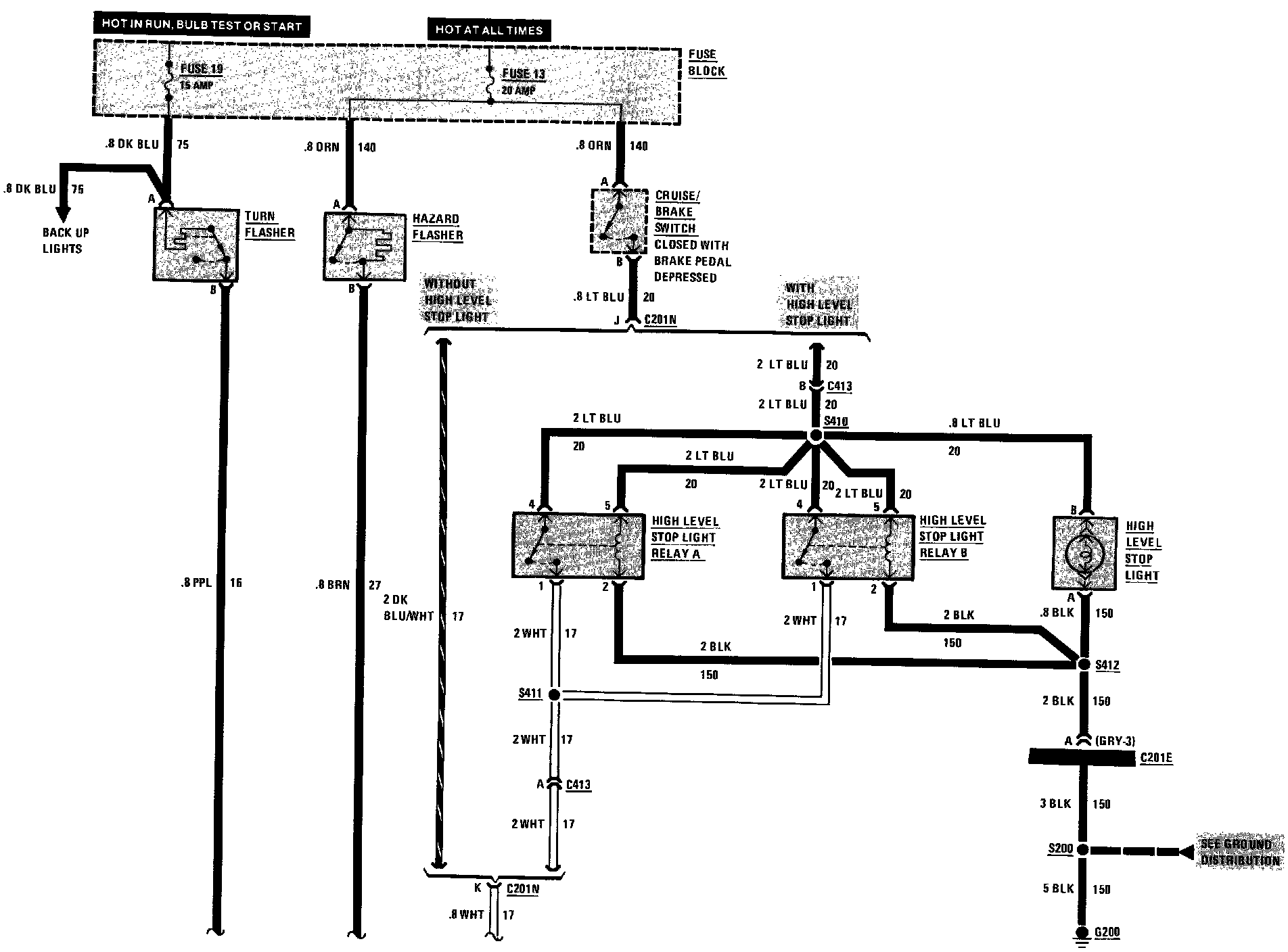

(Part 1) Rear, Turn/Hazard/Stop (Without T93 Special):
